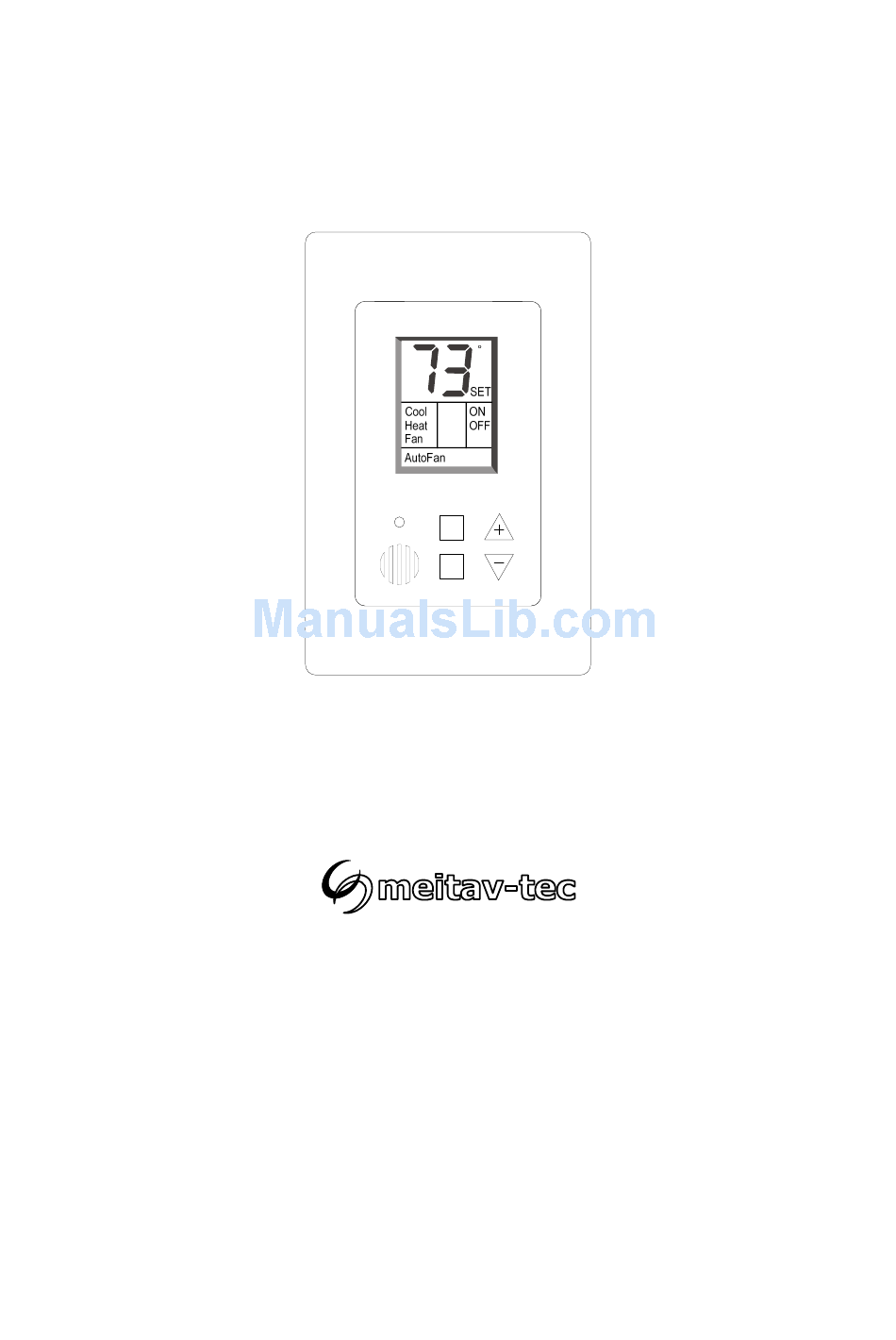

  • Page 1 SELECT FMT24-SUPER Owner’s manual & Technician Settings...
  • Page 2: Operating Instructions

    2. When the Emergency Heat is active, the compressor will stop and only the heat element will be used for heating. The display will alternate between “EH” and the room temperature. File: FMT24-SUPER_operating manual.vsd Pg. 2 Tel: +972-3-9626462 FMT24-SUPER Fax: +972-3-9626620 Owner’s manual & Technnician Settings support@meitavtec.com...
  • Page 3 When the measured temperature is less than 6°C (45°F) “AL” will flash. The indication will automatically disappear when the measured temperature is higher than 8°C (48°F). Emergency heat Pg. 3 Tel: +972-3-9626462 FMT24-SUPER Fax: +972-3-9626620 Owner’s manual & Technnician Settings support@meitavtec.com...
  • Page 4 Installation The FMT24-SUPER is designed for flush mounting in the room to be controlled. It should be located where the occupant can easily read the LCD display and use the controls. The module should be placed in such location which represents the room general conditions. Cold or warm air draughts; radiant heat and direct sunlight should be avoided.
  • Page 5 2. When Emergency heat mode is selected, the compressor and heat pump will close and the heat element will turn ON (Emergency heat is available in heat pump configuration only. 3. RC-RH, - When using one transformer, RC,RH terminals must be shorted. Pg. 5 Tel: +972-3-9626462 FMT24-SUPER Fax: +972-3-9626620 Owner’s manual & Technnician Settings support@meitavtec.com...
  • Page 6: Technician Settings

    Press the [SELECT] button again – “HC” or “HP” will appear on display. Use the [+] and [-] buttons to select between: “HC”…….…Heat element connected to “W1” “HP”…...…..Heat pump connected to “W1” Heat element Heat pump Pg. 6 Tel: +972-3-9626462 FMT24-SUPER Fax: +972-3-9626620 Owner’s manual & Technnician Settings support@meitavtec.com...
  • Page 7 “3” flashing…….… 3 Minutes compressor delay) “0” flashing…...….. No delay 3 Minutes delay delay Press the [SELECT] button again – “30” will appear onto return to normal display. Pg. 7 Tel: +972-3-9626462 FMT24-SUPER Fax: +972-3-9626620 Owner’s manual & Technnician Settings support@meitavtec.com...
  • Page 8 Tel: +972-3-9626462 Fax: +972-3-9626620 support@meitavtec.com www.meitavtec.com...
