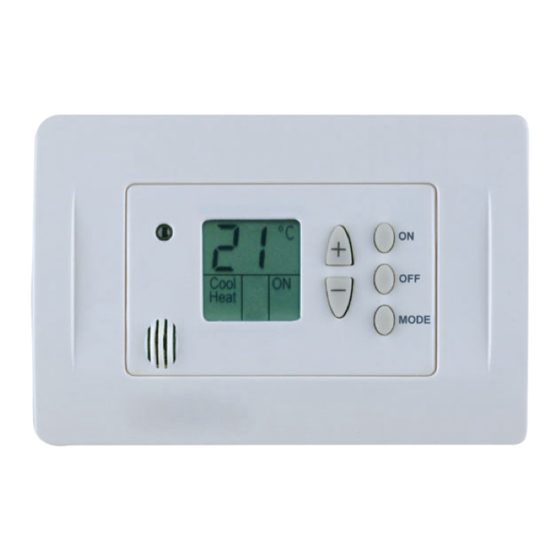

meitav-tec FMH24-PD-1S-IR Owner's Manual

meitav-tec FMH24-PD-1S-IR Owner's Manual

Advertisement

Meitav-tec Ltd (Contel group)
Tel: 972-3-9626462 Fax: 972-3-9626620
www.meitavtec.com - support@meitavtec.com

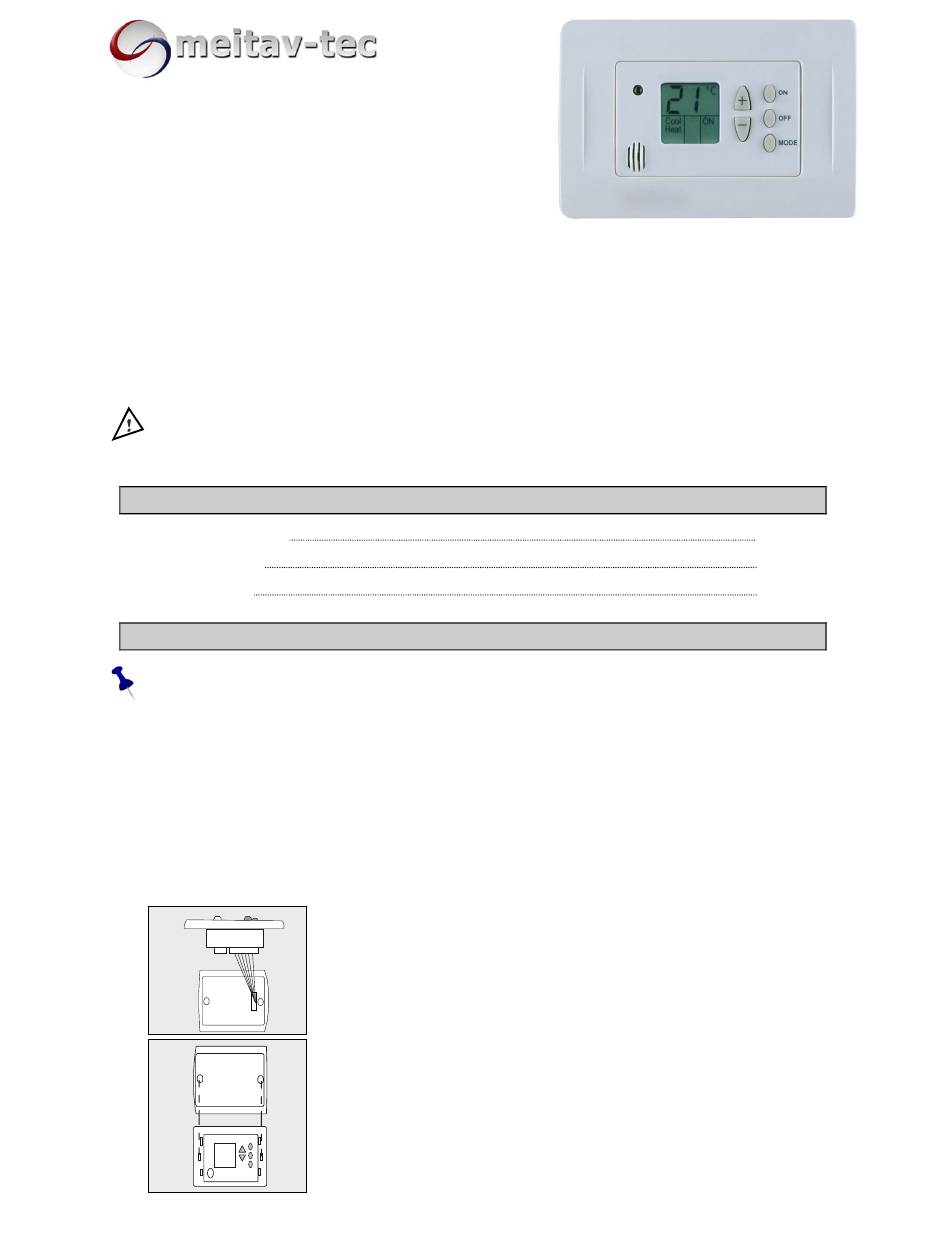

FMH24-PD-1S-IR
Owner's Manual - Installation and Operating Instructions
Please read this manual carefully before installation and use.
Index

Installation Instructions

1. Installation Instructions
Is very important to find the right place to install the Flush Mount unit.
Please make sure to follow all the installation instructions in order to get an
accurate reading of the temperature.
General points to follow:
The unit MUST be fitted into a standard electrical box (Gewiss Box - GW00001481VR)
The unit should not be installed on an outside wall or where there is an air draft.
The unit must not be exposed to a direct sunlight.
The standard height to install this unit is 1.5 meter from the floor (5 feet).
Installation procedure:
File: fmh24-pd-1s-A4-rev1.doc
Rev. 1 Date:07/06/2005
Connect the wires (see #2)
Put the thermostat in the electrical box.
- 1 -
1
2
3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FMH24-PD-1S-IR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for meitav-tec FMH24-PD-1S-IR

  • Page 1 Meitav-tec Ltd (Contel group) Tel: 972-3-9626462 Fax: 972-3-9626620 www.meitavtec.com - support@meitavtec.com FMH24-PD-1S-IR Owner's Manual - Installation and Operating Instructions Please read this manual carefully before installation and use. Index Installation Instructions Wiring Connections Operating Manual 1. Installation Instructions Is very important to find the right place to install the Flush Mount unit.
  • Page 2: Wiring Connections

    Tighten up the 2 screws. Adapt the front frame-panel into its place, by pushing it towards the wall. 2. Wiring Connections Switch Function Proportional output for cool and heat Empty Not in use Empty 24Vac 24Vac Empty Not in use Empty 3.
