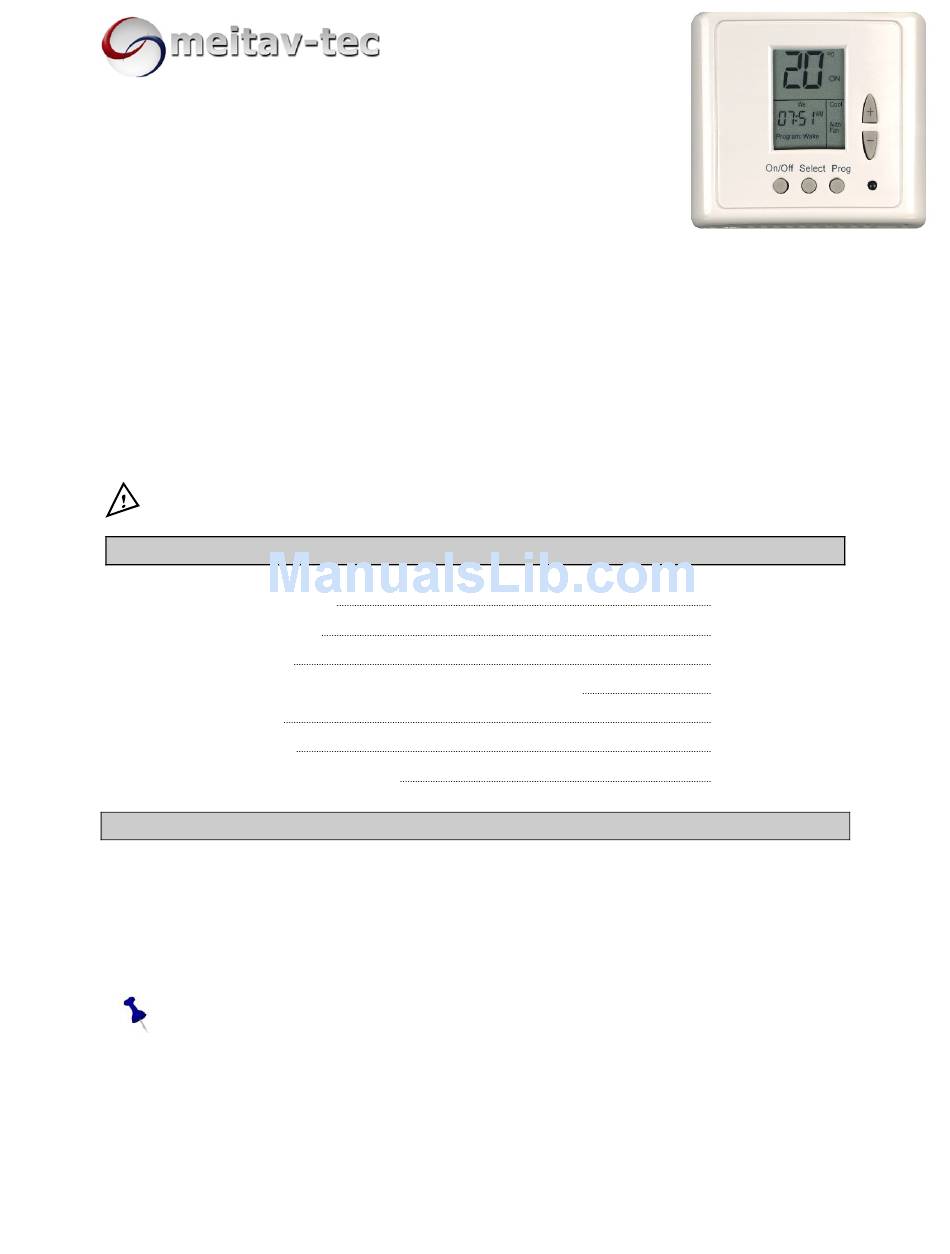

Meitav-tec Ltd (Contel group)
Tel: +972 (3) 962 6462 Fax: +972 (3) 962 6620
www.meitavtec.com - support@meitavtec.com

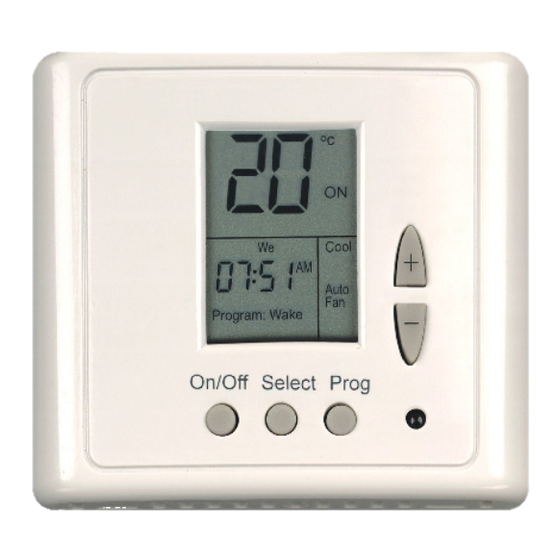

ETN-24-SUPER-PROG
(US Program - Celsius)
Owner's Manual
Installation and Operating Instructions
Please read this manual carefully before installation and use.
Index
Options and accessories
Installation Instructions
Wiring Connections
DIP Switch Configuration and External Sensor Connection
Operating Manual
Technician Settings
Hand held remote control (RT04)
1. Options and Accessories
• Hand held remote control with weekly program.
• External sensor option:
RS01 for remote temperature sensing (1 required)
RS02 for average temperature sensing (2 required)
For details on where to purchase accessories, please contact Meitav-tec for your
nearest location or visit our web site at www.meitavtec.com
File: etn24-super-prog-us-rev1-1.doc | Rev. 1.1 | 16/8/2007
1
2
3
4
5
6
7
Advertisement
Related Manuals for meitav-tec ETN-24-SUPER-PROG
Summary of Contents for meitav-tec ETN-24-SUPER-PROG
- Page 1 RS01 for remote temperature sensing (1 required) RS02 for average temperature sensing (2 required) For details on where to purchase accessories, please contact Meitav-tec for your nearest location or visit our web site at www.meitavtec.com File: etn24-super-prog-us-rev1-1.doc | Rev. 1.1 | 16/8/2007...
- Page 2 2. Installation Instructions It is very important to find the right place to install the thermostat. Please make sure to follow all the installation instructions in order to get an accurate reading of the temperature. Separate the front panel from back panel by depressing the tongue located in the top of the thermostat.
- Page 3 3. Wiring Connections Rc-Rh - If one transformer is in use, Rc-Rh must be shorted - (Default from Factory) Table 3.1 - Connections for all applications Terminal Function ETN HC11 HC22 HP21 HP32 24Vac RED (Bridged to RH) 24Vac RED (Bridged to RC) 24VAC Common from transformer (heat (heat...
- Page 4 4. DIP Switch Configuration Before making any changes disconnect power to the main board. Table 4.1 – DIP Switch Selection Switch Function Default Internal Sensor Control External sensor control Heat Pump (HP) Heat - Cool (HC) Electrical Heat In HC mode: (Switch 2 OFF) Oil/Gas Heat Heat Pump in COOL...
- Page 5 5. External sensor connection - option The external sensor must be Meitav-tec type. Before making any changes disconnect power to the main board. Table 5.1 - N.TC. Sensor: Temperature ~ Resistance Characteristics Temp °C 10.0 12.8 15.6 18.3 21.1 23.9 26.7...
-
Page 6: Operating Manual
6. Operating Manual 6.1 Turning the thermostat On/Off • Press the “On/Off” button to turn the thermostat ON or OFF - the words "ON" or "OFF" will appear on display. 6.2 Adjusting Temperature In Cool mode: • Press the “+” or “-” buttons – “COOL” will appear on display and the set-point temperature for cooling will flash. - Page 7 6.3 Mode, Auto Fan • Press the “Select” button – “UnLo” and the actual mode will appear on display. • Using the “+” and “-” buttons switch between: Cool – “Cool” will appear on display Heat – “Heat” will appear on display Cool/Heat –...
- Page 8 6.5 Programming The thermostat is a 5-1-1 programmable; weekdays Monday through Friday, Saturday and Sunday both have individual programs. There are four program events per day: 1-Wake, 2-Day, 3-Return, 4-Sleep Switch between Programmable/Non Programmable configurations The ETN-24-Super –Prog (U.S Program-Celsius) is a Programmable thermostat by default. To switch to a Non Programmable configuration the remote control MUST be used (see instructions below).
- Page 9 To modify the Program to your own needs simply follow the steps of the following chart: Prog Prog Prog Set the Set the Set the hours minutes Prog Prog Prog Prog START START TIME TIME HEAT COOL (hours) (minuts) Prog Prog Prog Prog...
- Page 10 6. Technician Settings To offset the Room temperature readings- when needed: • Adjust the set-point temperature for cooling to 10°C. • Wait until display returns to normal. • Press and hold the “Select” button (5 sec.) –“Offs” and the OFFSET temperature will appear on display (a number between –6…+6).
- Page 11 7. RT08 - Hand Held Remote Control - Option The remote control is Infrared; the remote must be pointed at the thermostat to operate. Every time you change parameters in the Remote Control, you must send it to the thermostat by pressing the “On/Send”...
- Page 12 In Heat Mode: • Press the “+” or “-” buttons - “HEAT” and set-point temperature for heating will flash. • Using the “+” and “-” buttons, adjust the set-point temperature for heating. • Press the “On/Send” button to send the information to the thermostat.
- Page 13 7.6 Programming Set the Program times and Temperature settings for the week: • The thermostat is 5-1-1 programmable: weekdays (Monday to Friday), Saturday, and Sunday can be programmed differently. • 4 program events per day: 1 (Morning), 2 (Day), 3 (Evening), 4 (Night) The program can be set away from the thermostat and can be sent later on.
- Page 14 • Press the “Select” button again – “COOL” (flashing) and the set-point temperature for cooling will appear on display. • Adjust the set-point temperature for cooling using the “+” and “-” buttons. • Press the “Select” button again – “HEAT” (flashing) and the set-point temperature for heating will appear on display.
- Page 15 • “PROGRAM” (flashing) and “SA” (Saturday) will appear on display. • Set programming for Saturday the same way as programming MON to FRI. • “SEND” will flash; press the “On/Send” button to send the information to thermostat. • “PROGRAM” (flashing) and “SU” (Sunday) will appear in display.
