MTSCV/SUPER/PROG/HU/PIR
MTSCVW/SUPER/PROG/HU/PIR
Owner's manual & Technician Settings
Rev.1.5.a

Advertisement

loading
Need help?

Need help?

Do you have a question about the MTSCV/SUPER/PROG/HU/PIR and is the answer not in the manual?

Questions and answers

Related Manuals for meitav-tec MTSCV/SUPER/PROG/HU/PIR

Summary of Contents for meitav-tec MTSCV/SUPER/PROG/HU/PIR

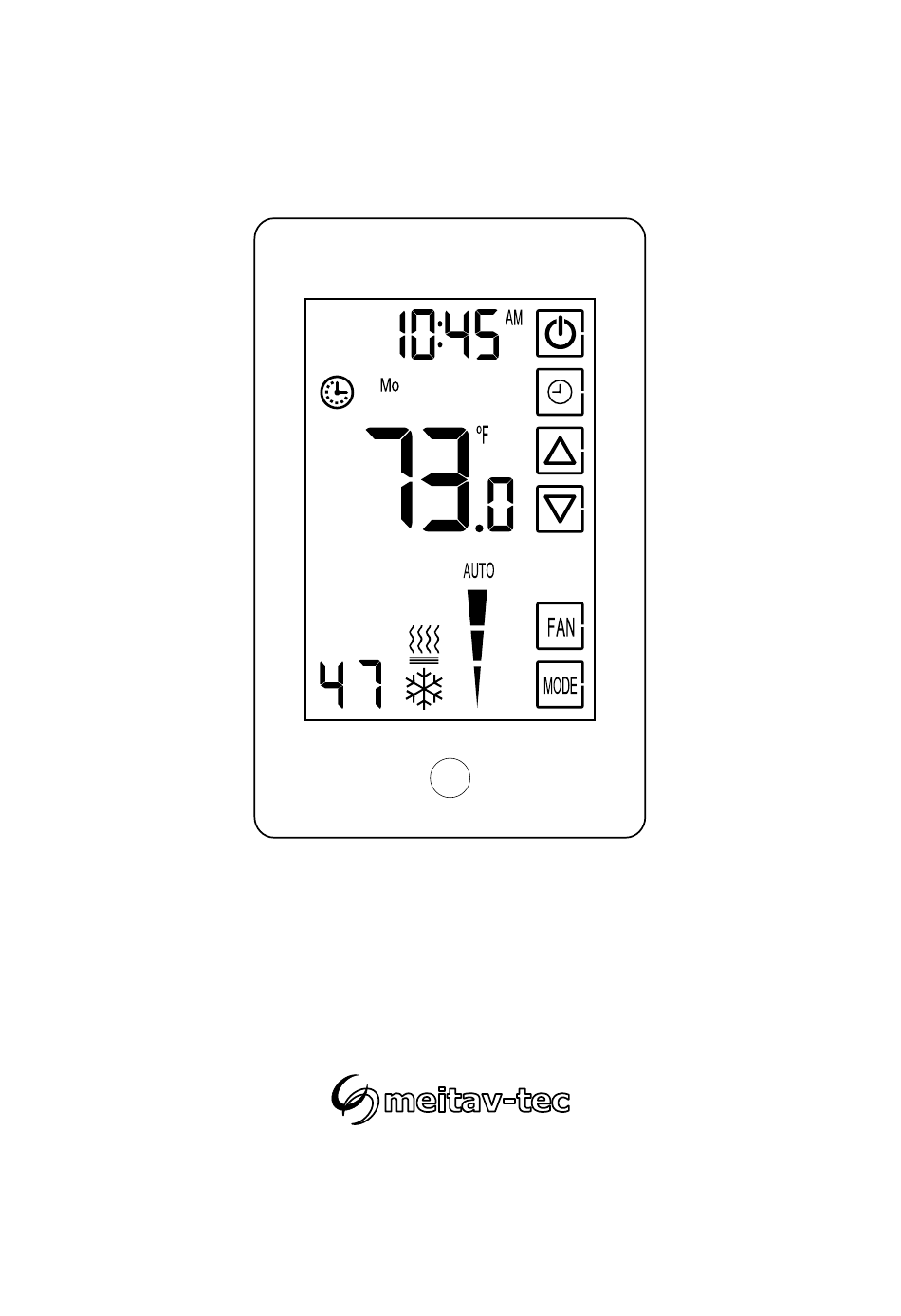

  • Page 1 MTSCV/SUPER/PROG/HU/PIR MTSCVW/SUPER/PROG/HU/PIR Owner’s manual & Technician Settings Rev.1.5.a...
  • Page 2 Index Operating instructions……………………………………..…………………………………….………….4-7 Quick guide……………………………………………………………………………………………… 4 Turning the thermostat ON and OFF ………………………………………………………………… 5 Selecting temperature scale ………………………………………………………………………… 5 Adjusting the Set point temperature (for 1 set point and 2 set points configurations) ………….. 5 Selecting system mode………………………………………………………………………………… 6 Selecting Fan speeds (for 2 and 3 fan speeds configuration) …………………………………….. 6 Turning Auto fan ON or OFF (fan on demand)………………………………………………………...
  • Page 3 Index Technician settings……………………………………………...…………………………….………….. 32-56 P44 – Soft start in heat – cut-out temperature P89 – Deice in heat – cut-in temperature P45 – Cool differential band P90 – Deice in heat – cut-out temperature P46 – Cool differential band offset P91 –...
  • Page 4 Operating instructions Quick guide Clock/Weekdays System ON Temperature scale Press to turn system ON or OFF Weekly program enabled Clock / Weekly program Ambient / Set-point temperature display Set-point adjustment Modes / Economizer indication Press to switch between fan speeds: Ambient Humidity Fan speeds indication *Auto...
  • Page 5 Operating instructions Turning the thermostat ON and OFF Press the button to turn the unit ON – system mode and fan speed symbols will appear on display. Press again to turn the unit OFF – the symbols will disappear. Unit OFF Unit ON Selecting temperature scale Press and hold the...
  • Page 6 Operating instructions (Cont’) Selecting system mode Press the [Mode] button to switch between system modes. Notes: 1. During demand for cooling or heating, the active mode Cool Heat Auto will flash. mode only 2. In Auto mode, the active mode icon (Cool or Heat) will flash on display.
  • Page 7 Operating instructions (Cont’) Economy mode Economy mode can be activated by triggering a window contact – Remote on/off switch, window contact - remote economy switch, door switch, key-tag, Built-in/External PIR sensor (passive infrared sensor) or through communication – binary value “UnoccupiedByNetwork”. - Economy by Window contact –...
  • Page 8 Economizer Economizer is used to reduce the energy consumed by the cooling systems, by using low external air temperatures to assist in the chilling process. When outdoor temperatures are lower relative to indoor (room) temperatures, the system utilizes the cool outdoor air as a free cooling source. The outdoor temperature (Teconomizer) triggering the activation of the economizer, can be measured by the temperature sensor connected to T1,0 terminals (technician parameter P08="05") or by setting a temperature value manually through communication - AV#129 "TEconomizerEffective".

  • Page 9: Weekly Program

    Weekly program General Prior to programming, make sure that parameters P107, P108 and P109 in the technician settings are configured correctly. Program types The thermostat can be configured to run four different types of weekly programs (set by technician parameter P107): 1.
  • Page 10 Weekly program (Cont’) Program display Enter programming procedure Proceed through programming steps Press & Hold to switch to the next daily periods Exit programming procedure Clock Time / Event start or stop time Weekdays - daily periods Programming procedure indication / Program active indication Real time clock adjustment Start time of program event...
  • Page 11 Weekly program (Cont’) Programming procedure The detailed programming procedure is described in the next sections. Make sure to follow the right programming procedure, suitable for the program type and features selected by technician settings. Press the button to enter and proceed through the steps of the real time clock and programming procedure.
  • Page 12 Weekly program (Cont’) Adjusting “EU type” daily programs Start time Press the button – the programmed weekday(s), “P1” indicating the first program event of the day and the word “Start” will appear on display. The HOURS will flash. Use the ▲or ▼buttons to adjust the start time hours of the first event. Press the button again –...
  • Page 13 Weekly program (Cont’) Adjusting “US type” daily programs Start time Press the button – the programmed weekday(s), “P1” indicating the first program event of the day and the word “Start” will appear on display. The HOURS will flash. Use the ▲or ▼buttons to adjust the start time hours of the first event. Press the button again –...

  • Page 14: Installation

    Installation The MTSCV/SUPER/PROG/HU/PIR is designed for wall mounting in the room to be controlled. It should be located where the occupant can easily read the LCD display and use the controls and where the built in PIR occupancy sensor can easily detect any movement in the room (consider PIR detection are below).

  • Page 15: Installation (Cont')

    Installation (Cont’) - 15 -...

  • Page 16: Pir Detection Area

    Wiring *External sensor / Soft start in heat sensor / Deicing in cool sensor / Door switch For outputs 11-16 – **T2 change over sensor / Soft start in Please refer to wiring and DIP heat sensor / Window contact Remote On/Off switch / Window contact Remote switches configurations for different economy switch / External PIR...
  • Page 17 AC Configurations index AC Configurations without humidification/dehumidification Outputs Configuration: Heat elements (max.) Compressors (max.) Heat pump Fan VFS Fan speeds Economizer AC Configurations with humidification/dehumidification Outputs Configuration: Heat elements (max.) Compressors (max.) Heat pump Fan VFS Fan speeds Economizer Humidifier Dehumidifier Reheat (Dehumidify) Option...

  • Page 18: Fc Configurations For 2-Pipe Systems

    FC Configurations for 2-Pipe systems FC Configurations for 2-Pipe systems without humidification/dehumidification Outputs Configuration: Cool/Heat valve Cool/Heat valve PID Heat element (2 stage) Fan VFS Fan speeds Economizer FC Configurations for 2-Pipe systems with humidification/dehumidification Outputs Configuration: Cool/Heat valve Cool/Heat valve PID Heat element (2 stage) Fan VFS...

  • Page 19: Fc Configurations For 4-Pipe Systems / Floor Heating

    FC Configurations for 4-Pipe systems / Floor heating FC Configurations for 4-Pipe systems without humidification/dehumidification Outputs Configuration: Cool valve Heat valve Cool valve PID Heat valve PID Heat element (2 stage) Fan VFS Fan speeds Economizer Floor heating FC Configurations for 4-Pipe systems with humidification/dehumidification Outputs Configuration: Cool valve...
  • Page 20 Wiring and DIP Switches – AC systems HC32 HP42 HP22 HP21 1 Speed fan 1 Speed fan 2/3 Speeds fan 2/3 Speeds fan Heat element 3 Heat element 2 Fan high Fan high stage heat) stage heat) Heat element 2 Heat element 1 Fan medium Fan medium...
  • Page 21 Wiring and DIP Switches – AC systems HC21 HP21 HP22 HC21 2/3 Speeds fan Fan VFS Fan VFS Fan VFS Fan high Fan medium Economizer Economizer Economizer (or Economizer (option - SW2.6 ON) (option - SW2.6 ON) (option - SW2.6 ON) Fan low Heat element 2 Heat element...
  • Page 22 Wiring and DIP Switches – AC systems HC32 HP42 HC22 HP32 1 Speed fan, 1 Speed fan, 1 Speed fan, 1 Speed fan, Humidifier, Humidifier, Economizer Economizer Dehum/Reheat for Dehum/Reheat for Dehumidification Dehumidification Heat element 2 Heat element Heat element 3 Heat element 2 stage heat) stage heat)
  • Page 23 Wiring and DIP Switches – AC systems HC22 HP32 HC21 HP21 1 Speed fan, 1 Speed fan, 2/3 Speeds fan 2/3 Speeds fan Economizer, Economizer, Humidifier, Humidifier, Humidifier, Humidifier, Dehum/Reheat for Dehum/Reheat for Dehum/Reheat for Dehum/Reheat for Dehumidification Dehumidification Dehumidification Dehumidification Heat element 2 Heat element...
  • Page 24 Wiring and DIP Switches – AC systems HP21 HP21 HP22 2/3 Speed fan HP22 Fan VFS, 2/3 Speeds fan Humidifier, Fan VFS, Humidifier, Humidifier, Reheat for Reheat for Humidifier Dehumidifier Dehumidification Dehumidification Fan high Fan high Fan medium Fan medium Economizer Economizer (or Economizer...
  • Page 25 Wiring and DIP Switches – AC systems HC21 Fan VFS, Humidifier, Reheat for Dehumidification Economizer (option - SW2.6 ON) Heat element 2 stage heat) Compressor Heat element 1 stage heat) Humidifier Fan VFS Fan on/off: 110-230VAC, 2.5A max., Fan VFS, Humidifier: 0-10VDC. 0.5mA Not isolated Control - Heat elements, Heat pump, Compressors, Economizer: 110-230VAC, 0.3A max.
  • Page 26 Wiring and DIP Switches – FC systems – 2-Pipe 2-Pipe, 2-Pipe, 2-Pipe, 2-Pipe, 1/2/3 Speeds fan Fan VFS, 1/2/3 Speeds fan Fan VFS Cool/Heat PID Cool/Heat PID Fan high Fan high Fan medium Fan medium Economizer Economizer (or Economizer (or Economizer (option - SW2.6 ON) (option - SW2.6 ON) Fan low...
  • Page 27 Wiring and DIP Switches – FC systems – 2-Pipe 2-Pipe, 2-Pipe, 2-Pipe, 2-Pipe, 1/2/3 Speeds fan 1/2/3 Speeds fan 1/2/3 Speeds fan Fan VFS, Cool/Heat valve, Cool/Heat valve, Cool/Heat PID, Humidifier Humidifier, Humidifier, Humidifier, Reheat for Dehum/Reheat for Reheat for Reheat for Dehumidification Dehumidification...
  • Page 28 Wiring and DIP Switches – FC systems – 4-Pipe 4-Pipe, 4-Pipe, 4-Pipe, 4-Pipe, 1/2/3 Speeds fan 1/2/3 Speeds fan 1/2/3 Speeds fan 1/2/3 Speeds fan Cool valve PID, Floor heating Cool valve PID Floor heating Fan high Fan high Fan high Fan high Fan medium Fan medium...
  • Page 29 Wiring and DIP Switches – FC systems – 4-Pipe 4-Pipe, 4-Pipe, 4-Pipe, 4-Pipe, Fan VFS, 1/2/3 Speeds fan Fan VFS, Fan VFS Cool valve PID Heat valve PID Heat valve PID Fan high Fan medium Economizer Economizer Economizer (or Economizer (option - SW2.6 ON) (option - SW2.6 ON) (option - SW2.6 ON)
  • Page 30 Wiring and DIP Switches – FC systems – 4-Pipe 4-Pipe, 4-Pipe, 4-Pipe, 1/2/3 Speeds fan 4-Pipe, 1/2/3 Speeds fan VFS Fan, Fan VFS, Humidifier, Heat valve PID, Cool valve PID, Humidifier, Dehum/Reheat for Cool valve PID Floor heating Reheat for Dehumidification Dehumidification Fan high...
  • Page 31 Wiring and DIP Switches – FC systems – 4-Pipe 4-Pipe, 4-Pipe, 1/2/3 Speeds fan 1/2/3 Speeds fan Cool valve PID Heat valve PID Humidifier, Humidifier, Reheat for Reheat for Dehumidification Dehumidification Fan high Fan high Fan medium Fan medium (or Economizer (or Economizer Fan low Fan low...

  • Page 32: Technician Settings

    Technician Settings Enter technician settings mode: Adjust the set point temperature to 10ºC or 50ºF. Press and hold the button for 10 seconds to enter technician settings mode. “P01” will appear on display. View objects and make adjustments: Use the [Mode] button to step forward between different objects (parameters). Use the [Fan] button to step backward between different objects (parameters).
  • Page 33 Technician Settings (Cont’) P4 – Enable/Disable the option to lock the [Fan] button “01” [Fan] button can be locked “00” [Fan] button cannot be locked Note: When enabled, press and hold the [Mode] button for 7 [Fan] [Fan] Cannot seconds to actually lock the buttons. be locked be locked P5 –...
  • Page 34 Technician Settings (Cont’) P8 – Functionality of T1 terminals “00” - T1 terminals are not in use “01” - External sensor “02” - *T3 Soft start in heat sensor (FC) T1 terminals T1 sensor T3 Soft start or **Deicing in cool (AC) Not in use (External in heat...
  • Page 35 Technician Settings (Cont’) P11 – Window contact delay time Range: 0…999 seconds. Default: 600 seconds. Window contact delay time (sec.) P12 – Door switch (terminals T1,0) polarity “01” - Normally open “00” - Normally close Door switch Door switch Normally close Normally open P13 –...
  • Page 36 Technician Settings (Cont’) P16 – Enable/Disable Occupancy sensor “00” - Disable “01” - Enable Disable Enable occ. sensor occ. sensor P17 – PIR (occupancy sensor) delay time before switching to unoccupied mode (ON delay) Range: 0…900 minutes. Default: 20 minutes. PIR ON delay (minutes) P18 –...
  • Page 37 Technician Settings (Cont’) P26 – Economy set point for heating Range: 5…35°C / 41…95°F. Default: 10°C / 50°F. EC set point in heating (°C) (°F) P27 – On-delay time on-delay between heating stages Range: 0….600 seconds Default: 5 seconds On delay heating stages P28 –...
  • Page 38 Technician Settings (Cont’) P31 – P34 Fan on/off delay with fan on demand (auto fan) active. Time (sec.) Valve Fan ON Fan OFF delay delay P31 – Fan ON delay in cooling (FC Only!) Range: 0…120 seconds Default: 0 seconds (no delay) Fan ON delay in cooling (seconds)
  • Page 39 Technician Settings (Cont’) P35 – Enable/Disable Freeze protection “00” - Disable Freeze protection “01” - Enable Freeze protection Note: If enabled, freeze protection will start when the thermostat is either ON or OFF and regardless of the Disable freeze Enable freeze protection protection current system mode.
  • Page 40 Technician Settings (Cont’) P40 – View filter counter (hours) – Read only Range: 0…999 hours The filter counter is related to Fan running time. View filter Counter (hours) P41 – Reset filter time Press the [+] button to reset the filter counter. The display will change from “00”...
  • Page 41 Technician Settings (Cont’) P43 – P44 Soft start in heat with fan on demand (auto fan) active. Temp. Fan cut-out Fan cut-in Heat valve temperature temperature P43 – Soft start in heat – cut-in temperature (FC Only!) The fan will not start before the temperature on T3 sensor reaches the cut-in temperature.
  • Page 42 Technician Settings (Cont’) P45 – P46 Cool differential band / offset Room (with cool differential band offset = 0) Temp. Set point Compressor / Valve Cool differential band P45 – P46 Cool differential band / offset Room (with cool differential band offset ≠ 0) Temp.
  • Page 43 Technician Settings (Cont’) P47-48 Heat differential band / offset Room (with heat differential band offset = 0) Temp. Set point Compressor / Valve Heat differential band P47-48 Heat differential band / offset Room (with heat differential band offset ≠ 0) Temp.
  • Page 44 Technician Settings (Cont’) Cooling ON Shift between Cooling OFF Temp. Cool and Heat Cool differential in Auto mode band -0.5 +0.5 (from cooling to heating) Set point Shift between Compressor / Valve Cool and Heat Heating ON Shift between Heating OFF Temp.
  • Page 45 Technician Settings (Cont’) P52 – Cool valve proportional band (FC Only!) Range: 2...10°C / 4-20°F Default: 2°C / 4°F Cool valve proportional band 0-10V Valve opening from fully closed to fully open. (°C) (°F) P53 – Cool proportional low limit (FC Only!) Range: 0...100% Default:...
  • Page 46 Technician Settings (Cont’) Fan turns ON when the Cool Fan ON or Heat valve reaches the “Proportional ON percent” Fan OFF Fan turns OFF when the Cool or Heat valve drops below the “Proportional OFF percent” Cool/Heat Valve % Proportional Proportional OFF percent ON percent...
  • Page 47 Technician Settings (Cont’) P65 – Fan VFS proportional band in cooling Range: 2...10°C / 4…20°F Default: 2°C / 4°F VFS Proportional band in cooling 0-10V fan speed from off closed to fully running. (°C) (°F) P66 – Fan VFS proportional band in heating Range: 2...10°C / 4…20°F Default: 2°C / 4°F VFS Proportional band in heating...
  • Page 48 Technician Settings (Cont’) P71 – Fan VFS Medium speed percent in heating Range: 30...60% Default: 50% VFS Med % in heating P72 – Fan VFS High speed percent in heating Range: 60...100% Default: 80% VFS High % in heating Fan VFS Medium Fan VFS High Speed VFS Medium speed differential...
  • Page 49 Technician Settings (Cont’) P76 – Fan VFS Low limit in cooling Range: 0...100% Default: VFS low limit in cooling P77 – Fan VFS High limit in cooling Range: 0...100% Default: 100% VFS high limit in cooling P78 – Fan VFS Low limit in heating Range: 0...100% Default:...
  • Page 50 Technician Settings (Cont’) P83 – View T2 temperature sensor readings Note: If T2 is not connected, -9.9 will appear on display T2 Sensor T2 Sensor Not connected readings P84 – View T3 temperature sensor readings Note: If T3 is not connected, -9.9 will appear on display T3 Sensor T3 Sensor Not connected...
  • Page 51 Technician Settings (Cont’) P89 – Deice in heat – cut-in temperature (AC only!) Range: -9.5…+8°C / 15...46°F Default: 0°C / 32°F The outdoor unit coil temperature in which deicing will start. Deice in heat (°C) (°F) P90 – Deice in heat – cut-out temperature (AC only!) Range: 2...20°C / 35...68°F Default: 16°C / 61°F The outdoor unit coil temperature in which deicing will stop.
  • Page 52 Technician Settings (Cont’) P101 – Screen dimming delay Range: 0...99 minutes Default: 5 minutes Screen dimming delay P102 – Dimming brightness Range: 1, 5, 10, 20, 30...90% Default: 10% Dimming brightness (%) P105 – Screen brightness when ON Range: 50...100% Default: 100% Screen brightness when ON (%)
  • Page 53 Technician Settings (Cont’) P111 – PIR Sensitivity Range: 1...5 (1 – Less sensitive, 5 – More sensitive) Default: 4 PIR Sensitivity P114 – Cool PID Kp (FC Only!) Range: 0...100% Default: 100% Cool PID Kp P115 – Heat PID Kp (FC Only!) Range: 0...100% Default: 100% Heat PID Kp...
  • Page 54 Technician Settings (Cont’) P122 – Cool Proportional output threshold time (FC Only!) Range: 0...100 seconds Default: 60 seconds Cool proportional threshold time P123 – Heat Proportional output threshold time (FC Only!) Range: 0...100 seconds Default: 60 seconds Heat proportional Threshold time P160 –...
  • Page 55 Technician Settings (Cont’) P187 – Display or hide humidity reading “00” - Do not display humidity reading “01” - Display humidity reading Display or hide humidity readings P188 – Room temperature limit for disabling dehumidification in unoccupied mode Range: 10...30ºC / 50...85ºF Default: 18ºC / 64ºF Temp.
  • Page 56 Technician Settings (Cont’) P195 – Humidity sensor reading offset Range: -9…+9 %RH Default: 0 %RH Humidity offset P196 – Dead zone between humidification and dehumidification Range: 0...100 %RH Default: 0 %RH Dead zone Hum./Dehum. P197 – Humidity set-point Range: 20...100 %RH Default: 45 %RH Humidity set-point...

  • Page 57: Communication Mac Address

    Communication MAC Address Defining the communication MAC Address Adjust the set-point temperature to 11ºC/52ºF – the button will appear on display. To enter MAC Address settings, press and hold the button for 5 seconds. Use the ▲or ▼buttons to change the MAC Address. Set “0”...

  • Page 58: Alarms And Indications

    Alarms and Indications T1 Internal sensor or T1 External sensor fault Deicer in cool indication Deicer in heat indication Alarms and Indications Overheat in heat Overheat in cool Teconomizer sensor fault Economy by: - Window contact - Remote on/off switch - Window contact - Remote economy switch Economy by: - Built-in/External PIR...
