FMHC220-VFS-FC-MDB01
Owner's manual and Technician settings

Advertisement

loading
Need help?

Need help?

Do you have a question about the FMHC220-VFS-FC-MDB01 and is the answer not in the manual?

Questions and answers

Summary of Contents for meitav-tec FMHC220-VFS-FC-MDB01

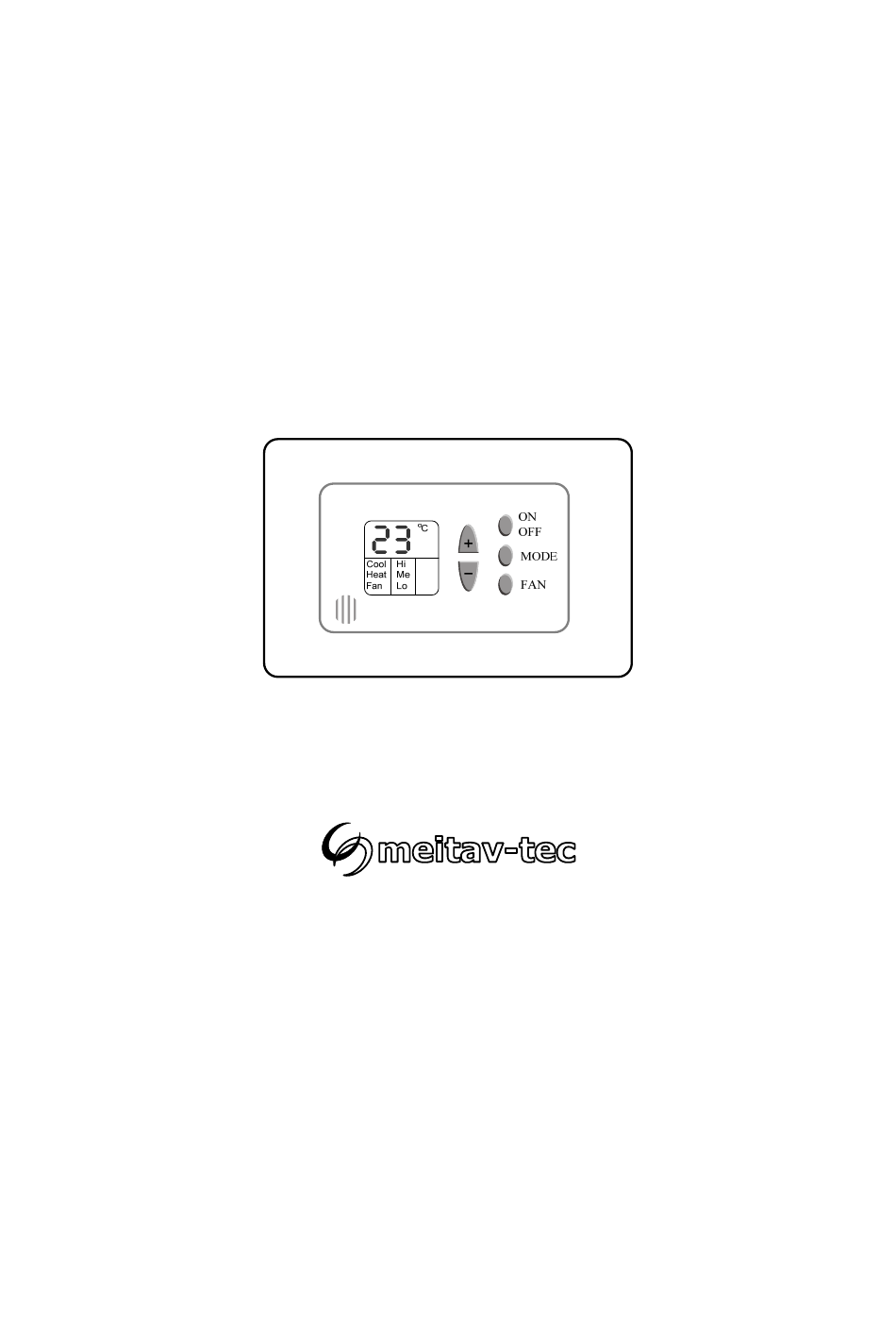

  • Page 1 FMHC220-VFS-FC-MDB01 Owner’s manual and Technician settings...
  • Page 2: Installation Procedure

    Installation The FMHC220 is designed for flush mounting in the room to be controlled. It should be located where the occupant can easily read the LCD display and use the controls. If the built in temperature sensor is being used to measure room temperature, the module should be placed where the temperature is representative of the general room conditions.
  • Page 3 Wiring Before connecting or disconnecting any wires, ensure that all power supplies have been switched off and all wires are potential-free to prevent equipment damage and avoid electrical shock. Do not run wiring close to transformers or high frequency generating equipment. Complete and verify all wiring connections before applying power to the controller to which the module is connected.
  • Page 4: Dip Switch Configuration

    DIP Switch Configuration The DIP Switches are located on the top of the back side of the thermostat. “ON” Position “OFF” Position 1 2 3 1 2 3 4 5 6 IMPORTANT: Disconnect power to the unit before changing the configuration of the DIP switches. Switch “ON”...
  • Page 5 Technician Settings (Temp. limits, Lock, Offset, “0”,”T2" output, Beeper, MAC Address) Adjust the set point temperature to 10°C. Wait until display stops flashing. Press and hold the [MODE] button (10 sec.) to enter technician settings. Use the [MODE] button to switch between different configurable parameters. Use the [+] and [-] buttons to make adjustments or switch between options.
  • Page 6 Technician Settings (Limits for proportional output, Proportional band, Dead zone) Defaults Adjust the set point temperature to 11°C. Wait until display stops flashing. Press and hold the [MODE] button (10 sec.) to enter technician settings. Use the [MODE] button to switch between different configurable parameters. Use the [+] and [-] buttons to make adjustments or switch between options.
  • Page 7 Operating instructions On/Off Press the [ON-OFF] button to turn the thermostat ON or OFF. “ON” or “OFF” will appear on display. Set point Press the [+] or [-] button – “SET” and the set point temperature will appear on display. Adjust using the [+] and [-] buttons.
  • Page 8 Tel: +972-3-9626462 Fax: +972-3-9626620 www.meitavtec.com support@meitavtec.com...
