Installation

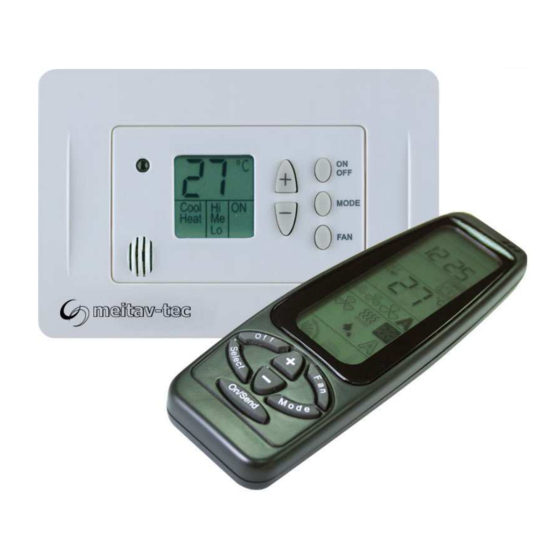

The FMH220 is designed for flush mounting in the room to be
controlled. It should be located where the occupant can easily read
the LCD display and use the controls. If the built in temperature
sensor is being used to measure room temperature, the module
should be placed where the temperature is representative of the
general room conditions. Cold or warm air draughts; radiant heat
and direct sunlight should be avoided.
General points to follow:
- Disconnect power to the main board before installing the unit.
- The unit MUST be fitted into a standard electrical box (Gewiss Box - GW00001481VR)
- The unit should not be installed on an outside wall or where there is an air draft.
- The unit must not be exposed to a direct sunlight.
- The standard height to install this unit is 1.5 meter (5 feet) from the floor.

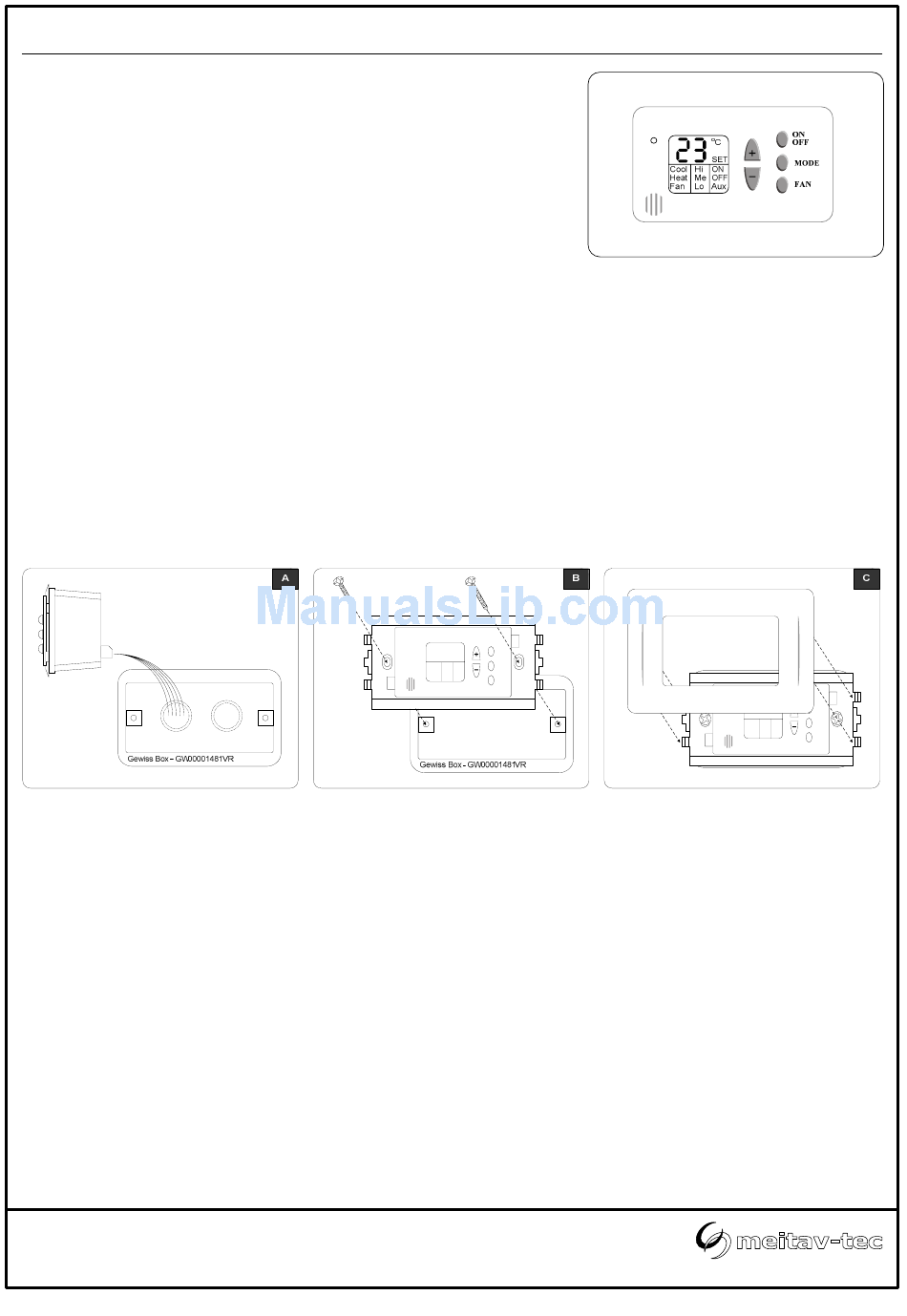

Installation procedure:
A. Connect the wires as shown in the enclosed wiring diagram. All terminals on accept 1x0.5 mm2 /24 AWG.
B. Place the thermostat in the electrical box and tighten up the 2 screws (Gewiss Box - GW00001481VR).
C. Adapt the front frame-panel into its place, by pushing it towards the wall.
FMHC220-P-FC-MDB01
Owner's manual & Technnician Settings
File: FMHC220-P-FC-MDB01_rev1(8 pages).vsd
Tel: +972-3-9626462
Fax: +972-3-9626620
www.meitavtec.com | support@meitavtec.com
Advertisement
Table of Contents
Related Manuals for meitav-tec FMHC220-P-FC-MDB01
Summary of Contents for meitav-tec FMHC220-P-FC-MDB01
- Page 1 B. Place the thermostat in the electrical box and tighten up the 2 screws (Gewiss Box - GW00001481VR). C. Adapt the front frame-panel into its place, by pushing it towards the wall. File: FMHC220-P-FC-MDB01_rev1(8 pages).vsd FMHC220-P-FC-MDB01 Tel: +972-3-9626462 Fax: +972-3-9626620 Owner’s manual &...
- Page 2 - Connect the "T2" and the "0" terminals of the thermostats as shown in the illustration below. - Connect the "T2" and "0" terminals of the last thermostat to the remote switch. Open Close Remote contact T2 0 T2 0 T2 0 FMHC220-P-FC-MDB01 Tel: +972-3-9626462 Fax: +972-3-9626620 Owner’s manual & Technnician Settings www.meitavtec.com | support@meitavtec.com...
- Page 3 Set-point and Room temp. display Set-point temp. display only S1.6 Always Auto fan Auto fan selectable S2.1 Internal sensor External sensor S2.2 External sensor Internal sensor S2.3 External sensor Internal sensor FMHC220-P-FC-MDB01 Tel: +972-3-9626462 Fax: +972-3-9626620 Owner’s manual & Technnician Settings www.meitavtec.com | support@meitavtec.com...
- Page 4 Beeper On or Off Indication: “bF” - Beeper Off (default) “bO” - Beeper On MODE MAC Address Indication: The MAC Address, “SET and “Aux” Range: 1...99 MODE FMHC220-P-FC-MDB01 Tel: +972-3-9626462 Fax: +972-3-9626620 Owner’s manual & Technnician Settings www.meitavtec.com | support@meitavtec.com...
- Page 5 Heat MODE Dead zone for cool Indication: “Cool” (flashing), “Heat”, and the dead zone for cool. Cool Cool Cool Range: 0...5°C, default 1°C. Heat Heat Heat MODE FMHC220-P-FC-MDB01 Tel: +972-3-9626462 Fax: +972-3-9626620 Owner’s manual & Technnician Settings www.meitavtec.com | support@meitavtec.com...
-
Page 6: Operating Instructions
“Fan” flashes on display………….*Fan cycles on with demand Always On with “Fan” does not flash……………….Fan is on continuously demand * The Auto fan function can be disabled by technician. FMHC220-P-FC-MDB01 Tel: +972-3-9626462 Fax: +972-3-9626620 Owner’s manual & Technnician Settings www.meitavtec.com | support@meitavtec.com... - Page 7 Important: The remote control will not operate Press the [On/Send] button to send information unless at least 10 minutes pass between removing to the thermostat. the old batteries and installing the new ones. FMHC220-P-FC-MDB01 Tel: +972-3-9626462 Fax: +972-3-9626620 Owner’s manual & Technnician Settings www.meitavtec.com | support@meitavtec.com...
- Page 8 Tel: +972-3-9626462 Fax: +972-3-9626620 www.meitavtec.com support@meitavtec.com...
