Wood Stone Phoenix 3030 Installation And Operation Manual

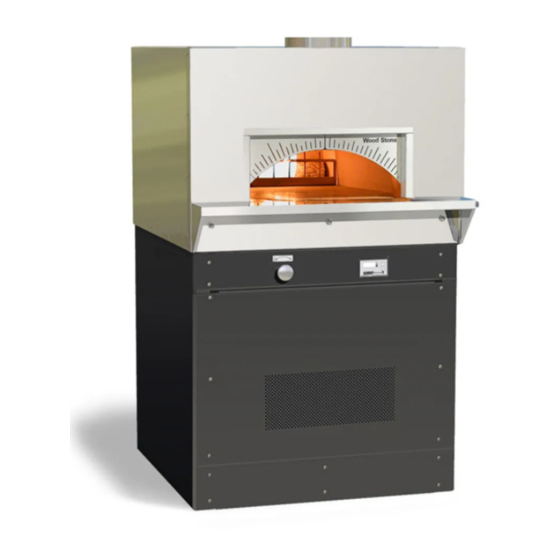

Phoenix series. gas-fired stone hearth oven
Hide thumbs Also See for Phoenix 3030:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operation & Installation Manual
Phoenix oven
Gas-Fired Stone Hearth Oven
Wood Stone CorPoration
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Installation and
Operation Manual
Phoenix 3030
WS-PX-3030-RFG
Phoenix 4343
WS-PX-4343-RFG, WS-PX-4343-RFG-W
Phoenix 4355
WS-PX-4355-RFG, WS-PX-4355-RFG-W
Toll Free (800) 988-8103
Tel (360) 650-1111
Fax (360) 650-1166
www.woodstone-corp.com
Revised September 2009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Phoenix 3030 and is the answer not in the manual?

Questions and answers

Related Manuals for Wood Stone Phoenix 3030

Summary of Contents for Wood Stone Phoenix 3030

  • Page 1 Installation and Operation Manual Phoenix 3030 Phoenix oven WS-PX-3030-RFG Phoenix 4343 Gas-Fired Stone Hearth Oven WS-PX-4343-RFG, WS-PX-4343-RFG-W Phoenix 4355 WS-PX-4355-RFG, WS-PX-4355-RFG-W Wood Stone CorPoration www.woodstone-corp.com Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Revised September 2009 Bellingham, WA 98226 USA...

  • Page 2: Table Of Contents

    DAILY MAINTENANCE �������������������������������������������������������������������������� SAFETY CONSIDERATIONS ��������������������������������������������������������������������� CONTROLLER ��������������������������������������������������������������������������������� 120 V ELECTRICAL DIAGRAM ������������������������������������������������������������������ 240 V ELECTRICAL DIAGRAM ������������������������������������������������������������������ LIMITED WARRANTY ��������������������������������������������������������������������������� Wood Stone CorPoration Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA Fax (360) 650-1166 An ongoing program of product improvement may require us to change specifications without notice.WS�PX�3030, WS�PX�4343, WS�PX�4355...

  • Page 3: Phoenix Oven

    PHOENIX OVEN Phoenix oven Phoenix Installation and Operation Manual INSTALLATION AND OPERATION MANUAL FOR ThE WOOD STONE PhOENIX NATURAL GAS OR PROPANE FUELED STONE hEARTh OvEN WS�PX�4343�RFG�(NG OR LP), WS�PX�3030�RFG�(NG OR LP), WS�PX�4343�RFG�(NG OR LP)�W, WS�PX�3030�RFG�(NG OR LP)�W ThiS AppliAnce iS FoR pRoFeSSionAl USe By qUAliFied peRSonnel. ThiS AppliAnce mUST Be inSTAlled By qUAliFied peRSonS in AccoRdAnce WiTh The RegUlATionS in FoRce.
  • Page 4 Phoenix oven Phoenix Installation and Operation Manual WOOD STONE PhOENIX GAS OvEN INSTALLATION AND OPERATING INSTRUCTIONS DO NOT ThROW ThIS MANUAL AWAY RETAIN ThIS MANUAL FOR FUTURE REFERENCE: Additional copies of this manual and prompt responses to service/maintenance questions are available from Wood Stone @ 1-800-988-8103.

  • Page 5: Ws-Px-3030 Specifications

    499 Kg utility knockouts (provided) to route all regulations pertaining to solid fuel appliances. gas and electrical supplies. Wood Stone CorPoration Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA...

  • Page 6: Ws-Px-4343 Specifications

    953 Kg utility knockouts (provided) to route all regulations pertaining to solid fuel appliances. gas and electrical supplies. Wood Stone CorPoration Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA...

  • Page 7: Ws-Px-4355 Specifications

    Unit Shipping Weight: utility knockouts (provided) to route all regulations pertaining to solid fuel appliances. gas and electrical supplies. 1134 Kg Wood Stone CorPoration Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA Fax (360) 650-1166 An ongoing program of product improvement may require us to change specifications without notice.WS�PX�3030, WS�PX�4343, WS�PX�4355...

  • Page 8: Installation Clearances

    CLEARANCES a. The Wood Stone Phoenix oven should have a minimum 1-inch (2.54 cm) clearance to combustibles from all sides, 6-inch (15.2 cm) clearance to combustibles from the top, and 6-inch clearance (15.2 cm) from the flue collar If building a facade that will contact the oven, use completely non-combustible materials.

  • Page 9: Moving The Oven

    Wood Stone CorPoration Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111...
  • Page 10 If you received the oven disassembled and need to move it through a narrow door or passageway, follow the instructions below... If your oven was originally shipped assembled, the optional lifting system is available from Wood Stone. 1. Use a forklift or other suitable lifting means to set the oven body onto blocks as shown.
  • Page 11 Never attempt to move the oven in this manner on any type of incline or sloped floor. CONTINUE TO ThE EXPLODED DIAGRAM AND ASSEMBLY/REASSEMBLY INSTRUCTIONS Wood Stone CorPoration Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111...

  • Page 12: Exploded Parts View

    All parts shown above and provided with the oven (except the shipping panel) mUST be installed to ensure the safety and proper operation of the oven. Wood Stone CorPoration Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111...

  • Page 13: Assembly

    Follow these instructions only if the oven was shipped disassembled. Use the 3/8" x 1"carriage bolts to assemble the stand on a level surface. Be sure to use the washers provided and to tighten nuts and bolts securely. Wood Stone CorPoration Toll Free (800) 988-8103 1801 W. Bakerview Rd.
  • Page 14 Make sure the pallet jack wheels do not contact the underside of the fork pocket when lifting to avoid damaging the stand. Wood Stone CorPoration Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111...
  • Page 15 6. Attach the Control Box to the oven using (4) 1/4-20 screws. The control box should be oriented so the knob is on the left side of the control box. Wood Stone CorPoration Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111...
  • Page 16 Install the wing nut onto the stud and tighten to secure the burner tray in place. Wood Stone CorPoration Toll Free (800) 988-8103 1801 W.
  • Page 17 Wood Stone CorPoration Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111...
  • Page 18 Wood Stone CorPoration Toll Free (800) 988-8103 Continued on following page. 1801 W. Bakerview Rd.

  • Page 19: Assembly-Connections

    1/2 psi. Wood Stone CorPoration Toll Free (800) 988-8103 1801 W. Bakerview Rd.
  • Page 20 The oven should be bolted to the floor using the holes provided at the base of the stand. Wood Stone CorPoration Toll Free (800) 988-8103 1801 W. Bakerview Rd.

  • Page 21: Disassembly

    Carefully bend the remaining length burner. of tube from the pilot up inside the burner assembly to protect it. Wood Stone CorPoration Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA...
  • Page 22 4. Remove the control box from the oven. Wood Stone CorPoration Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA...
  • Page 23 Follow the instructions on page 9 for tilting and moving the oven body. Follow the assembly instructions on page 12 to reassemble the oven. Wood Stone CorPoration Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA...

  • Page 24: Venting

    All of the combustion products and cooking vapors from the Phoenix 4343 and 4355 vent through a10-inch (25.4 cm) diameter flue collar located on top of the oven, at the front of the unit. The Phoenix 3030 vents through an 8-inch flue collar.

  • Page 25: Oven Startup

    500 degrees F. This will take approximately 3-4 hours. Night Heat Retention Door The night door should be removed whenever the oven is turned 'on'. Wood Stone CorPoration Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111...

  • Page 26: Daily Operation

    Make sure the night door is removed. Push I/O button and turn the radiant flame to its highest setting. The oven should reach the desired cooking temperature typically within 1-2 hours. Use the flame height control knob to control the amount of heat in the oven. See www.woodstone-corp.com for detailed information on cooking in your Wood Stone oven. CLEANING ThE OvEN 1.

  • Page 27: Daily Maintenance

    Phoenix Installation and Operation Manual OvEN INTERIOR Wood Stone recommends the use of a brass bristled brush for sweeping aside excess food particles that will accumulate on the floor of the oven during use. The oven floor can be cleaned with a damp rag.

  • Page 28: Safety Considerations

    They should be retained in the closed container until all the cinders have thoroughly cooled. Ashes can then be disposed of safely. Wood Stone's stainless steel ash shovel and, double compartment ash disposal system is a safe and convenient way to dispose of ash.

  • Page 29: Controller

    'LO' when the temperature is below 100 F. CONTROLLER FLAME hEIGhT CONTROL kNOB� Use this knob to raise/lower the flame to control the oven temperature. Controller Wood Stone CorPoration Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111...

  • Page 30: 120 V Electrical Diagram

    Phoenix Installation and Operation Manual ELECTRICAL SUPPLY: See equipment data plate for correct voltage. (Not used on Wood- Fired Models) Wood Stone CorPoration Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA Fax (360) 650-1166 An ongoing program of product improvement may require us to change specifications without notice.WS�PX�3030, WS�PX�4343, WS�PX�4355...

  • Page 31: 240 V Electrical Diagram

    240 v electrical diagram 240 v eLeCtriCaL diaGraM Phoenix Installation and Operation Manual PhOENIX MODELS 4355, (CS�REC�11), 4343 AND 3030 ELECTRICAL DIAGRAM 240 VAC MODELS Wood Stone CorPoration Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA...

  • Page 32: Limited Warranty

    LIMITATIONS OF LIABILITY: In the event of warranty claim or otherwise, the sole obligation of Wood Stone shall be the repair and/or replacement, at the option of Wood Stone, of the appliance or component or part thereof. Such repair or replacement shall be at the expense of Wood Stone with the exception of travel over 100 miles or two hours, overtime, and holiday charges which shall be at the expense of the purchaser.

This manual is also suitable for:

Phoenix 4343Phoenix 4355
