5.2 Front panel – Status monitoring
The status of the module can be easily monitored visually by the LED's at the front of the
module. The LEDs are visible through the front panel as shown in the figure below.
The HD-OE-2 has 4 LEDs each showing a status corresponding to the GPI pinning.
Diode \ State Red LED
Status Module is faulty,
or module is
initialising.
LOS/LOCK1 Loss of optical
modulated signal.
LOS/LOCK2 Loss of optical
modulated signal.

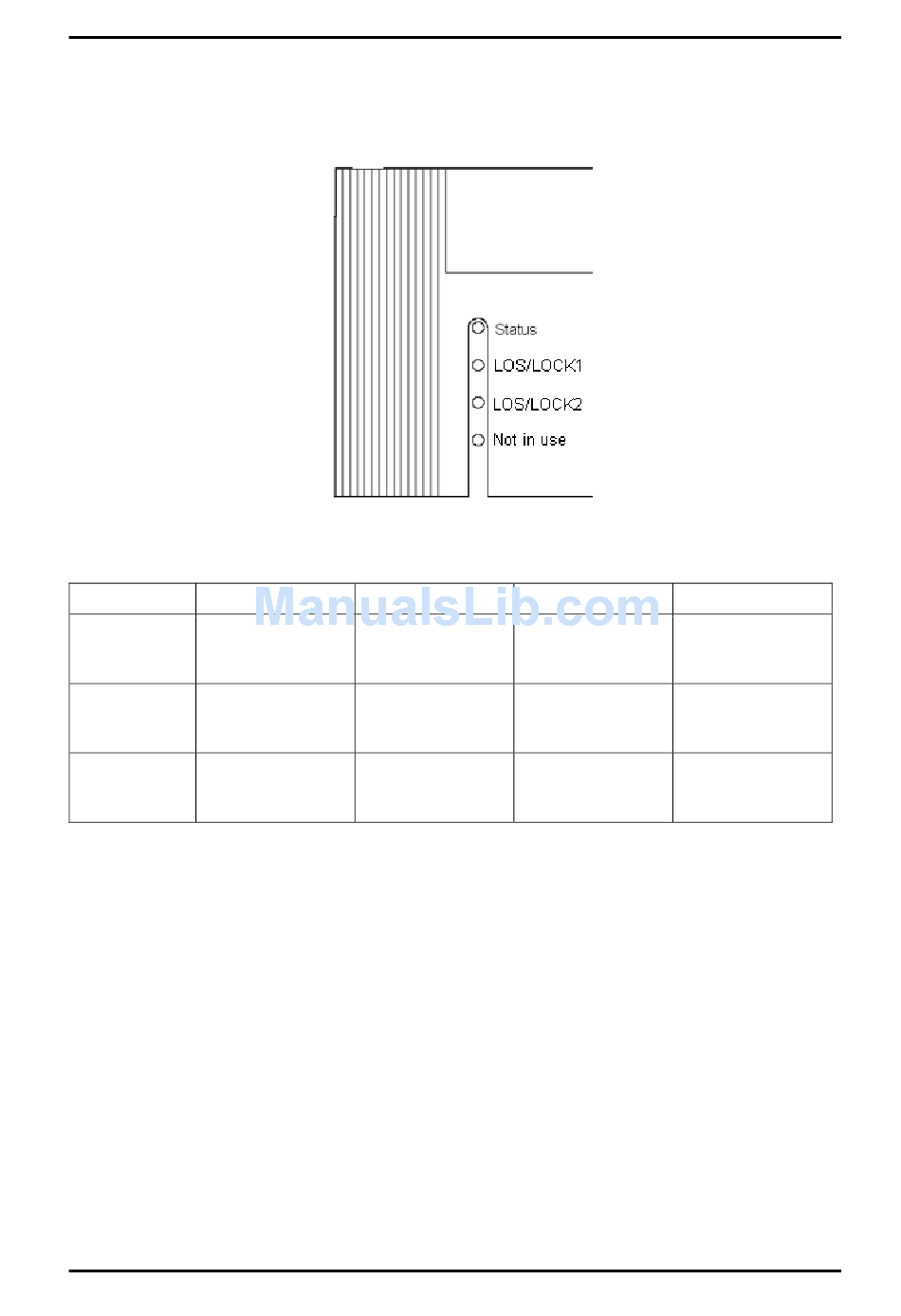

Figure 7 - Front panel indicators for the HD-OE-2
Green LED
Module is OK
Module power is
OK
Signal is present
and reclocker is
locked
Signal is present
and reclocker is
locked
Orange LED No light
Module has no
power
Signal is present,
but reclocker is
out of lock
Signal is present,
but reclocker is
out of lock
