3.2 Configuration examples

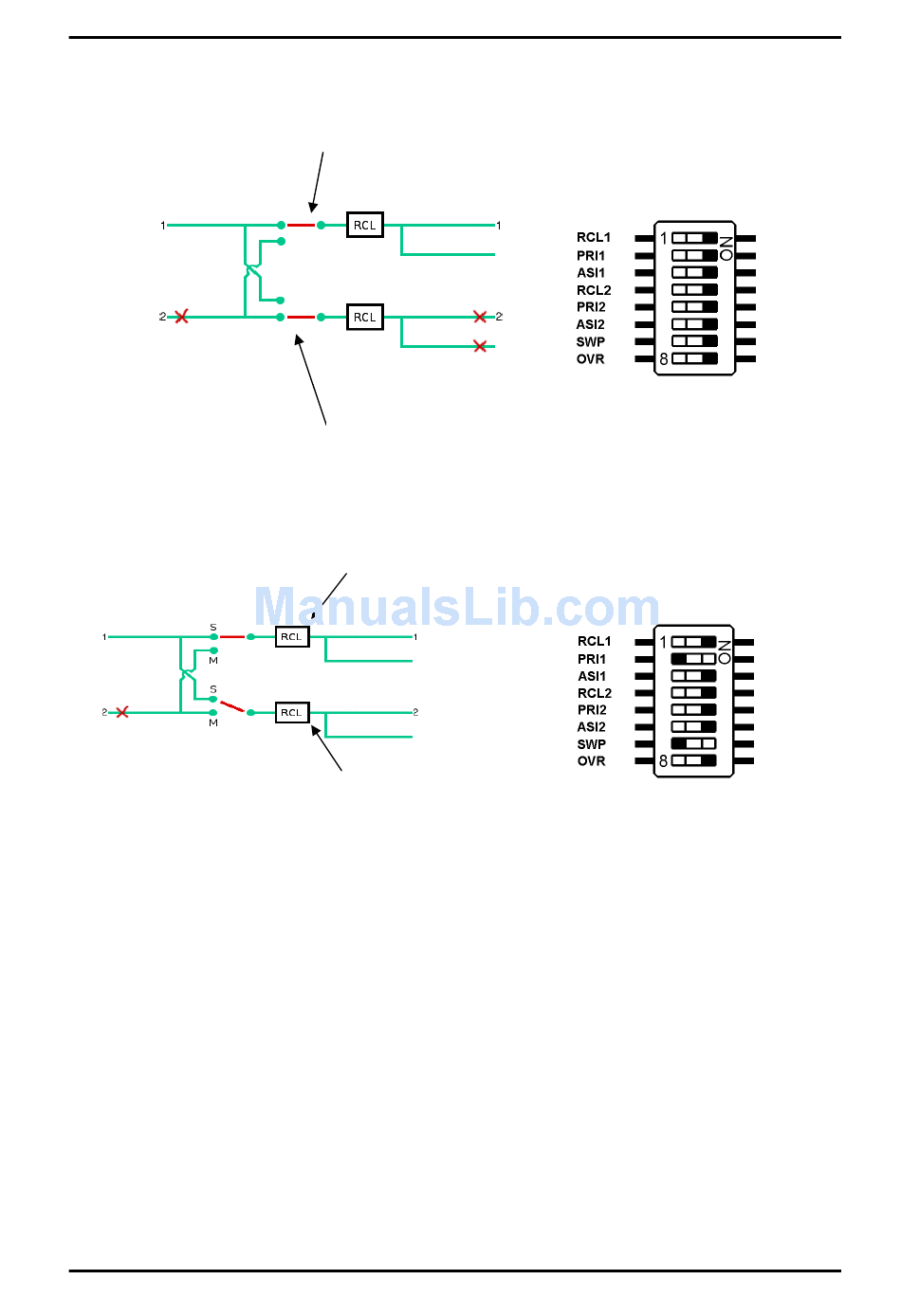

Figure 3 - Normal operation. Signal on input 2 not present
Figure 4 - Change over operation. Priority on input 2. Loss of signal on input 2. HD-OE-2 will
Normal operation.
No change over
functionality.
Input 1 is selected
Normal operation.
No change over
functionality.
Input 2 is selected
Change over.
Priority on input 2
Change over.
Priority on input 2
switch back to input 2 when signal is present
