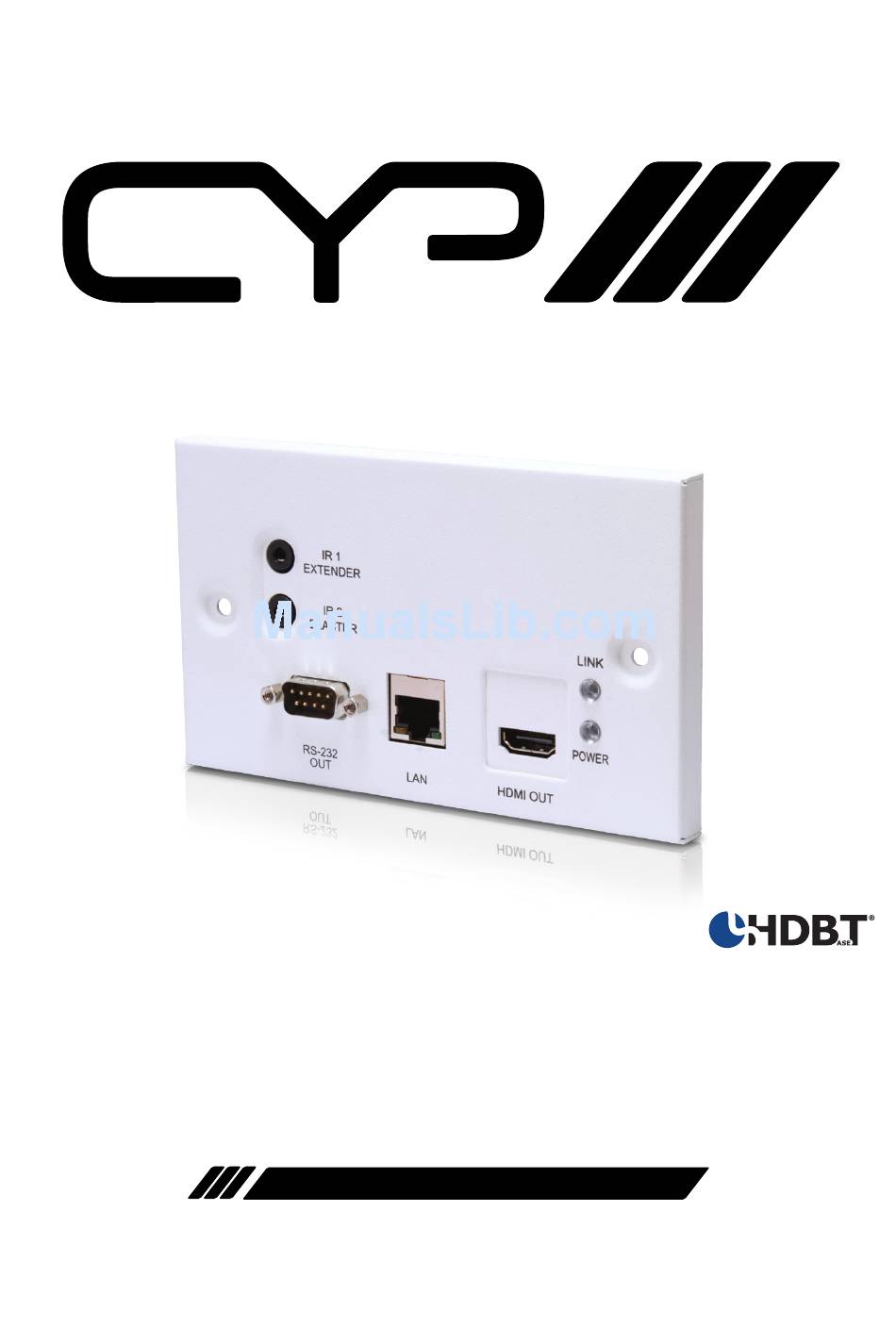

- Page 1 5-Play™ PU-507WPRX v1.4 HDMI over Single CAT5e/6/7 HDBaseT™ - PoE Wall Plate Receiver (full 5-Play™ & Single LAN up to 100m) OPERATION MANUAL...
-
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 7. D-Sub 9 Pin Definitions ......9 8. Connection Diagram ......10 9. Specifications ........11... -
Page 6: Introduction
1. INTRODUCTION The PU-507-WPRX Wall Plate Receiver allows uncompressed HDMI signals and IP data to be received over a Single CAT5e/6/7 cable. This solution has the added features of RS-232, LAN, IP Control, 2-way IR, and Power over Ethernet (PoE) functionality over the same CAT5e/6/7 cable. These combined HDMI and control signals can be transmitted up to lengths of 100 metres. -
Page 7: Features
5. FEATURES Supports all v1.3 HDMI resolutions plus 4k. Supports uncompressed video/audio up to 10.2Gbps Common supported resolutions: HDTV: 480p, 576p, 720p, 1080i, 1080p, 1080p24; PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA. HDMI, HDCP, & DVI compliant Supports HDCP repeating and CEC functions Uncompressed data transfer over single CAT cable (100m - CAT6/7;... -
Page 8: Operation Controls And Functions

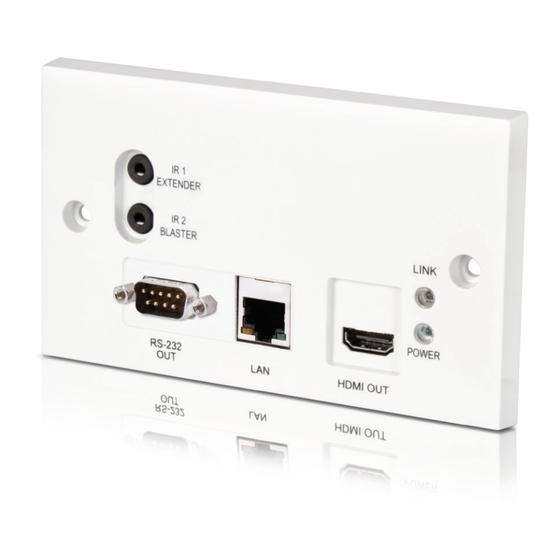

6. OPERATION CONTROLS AND FUNCTIONS IR 1 Extender IR 2 Emitter LINK POWER RS-232 HDMI OUT IR 1Extender: This slot is to connect with the IR receiver cable included in the package for IR signal receiving. IR 2 Emitter: This slot is to connect with the IR blaster cable included in the package for IR signal transmitting. -
Page 9: D-Sub 9 Pin Definitions
7. D-SUB 9 PIN DEFINITIONS Define TX/RX TxD/RxD RxD/TxD... -
Page 10: Connection Diagram
8. CONNECTION DIAGRAM... -
Page 11: Specifications
9. SPECIFICATIONS Input 1×CAT5e/6, 1×IR Extender, 1xLAN Output 1×HDMI, 1×RS-232, 1×IR Blaster ESD Protection Human-body Model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) IR Frequency 30~50 kHz Dimensions 146 mm(W) × 86 mm(D) × 48.5 mm(H) Weight 156 g Chassis Material Plastic Silkscreen Color... - Page 12 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
