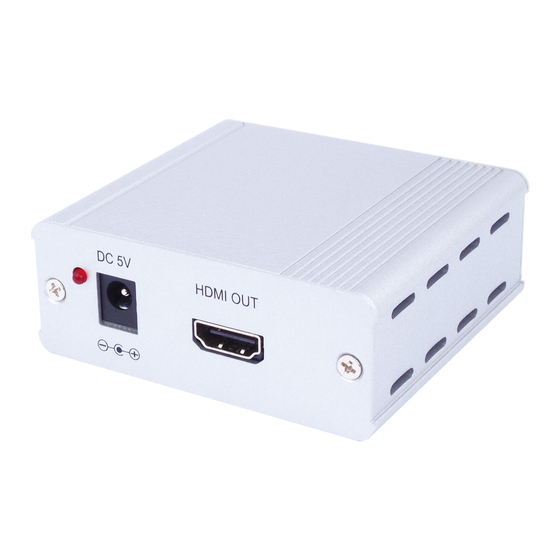

- Page 1 CH-107 RX HDMI v1.3 over ONE CAT6 HDMI Receiver Operation Manual CH-107 RX...
-
Page 2: Copyright Notice
Disclaimers The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents Introduction ……………………..……………………...…..….……. Applications …………………..………………….……....….. Package Contents ………………………...………....… System Requirements ……………..………..………....……. Features …………………………………………..……..…...…… Specifications ………………………………...……..………..…. Operation Controls and Functions ……………...……....…… Front Panel ................Rear Panel .…………………………………..……..…...….… Connection and Installation ….…………………..…..…..…..Acronyms ….................. -
Page 5: Introduction
1. Introduction The HDMI 1.3 receiver over ONE CAT6 is a tool for displaying HDMI content at long distances. Instead of using expensive HDMI cables, your existing CAT 6 cables/sockets can perform functions like transferring Deep Color (12 bits/ color) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio, with a bandwidth up to 2.25Gbps. -
Page 6: Features
5. Features Compliant with HDMI 1.3, HDCP 1.1 and DVI1.1 standards. Supports digital video formats in Deep Color Mode at up to 36 bits (12bits/ color) and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio . Supports one CAT6 cable for data/DDC transmission. -
Page 7: Specifications
6. Specifications Input Port 1 x CAT6 Output Port 1 x HDMI Female port Power Supply 5V/ 1A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human Body Model: ± 8kV (air-gap discharge) ± 4kV (contact discharge) Dimensions (mm) 78.5 (W) x 72 (D) x 30 (H) Weight(g) Chassis Material Aluminum... -
Page 8: Rear Panel
7.2 Rear Panel CH-107RX CAT6 IN ① ① CAT6 IN: Connect from the CAT6 output of the transmitter with a CAT6 cable to the CAT6 input of the receiver. Note: A. Cable tested with CAT6E/23AWG/Solid/UTP, using cables of another type may result in a different operating distance. B. -
Page 9: Acronyms
Acronyms Acronym Complete Term CAT6 Category 6 Cable HDMI High-Definition Multimedia Interface... - Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20101112 MPM-CH107RX...
