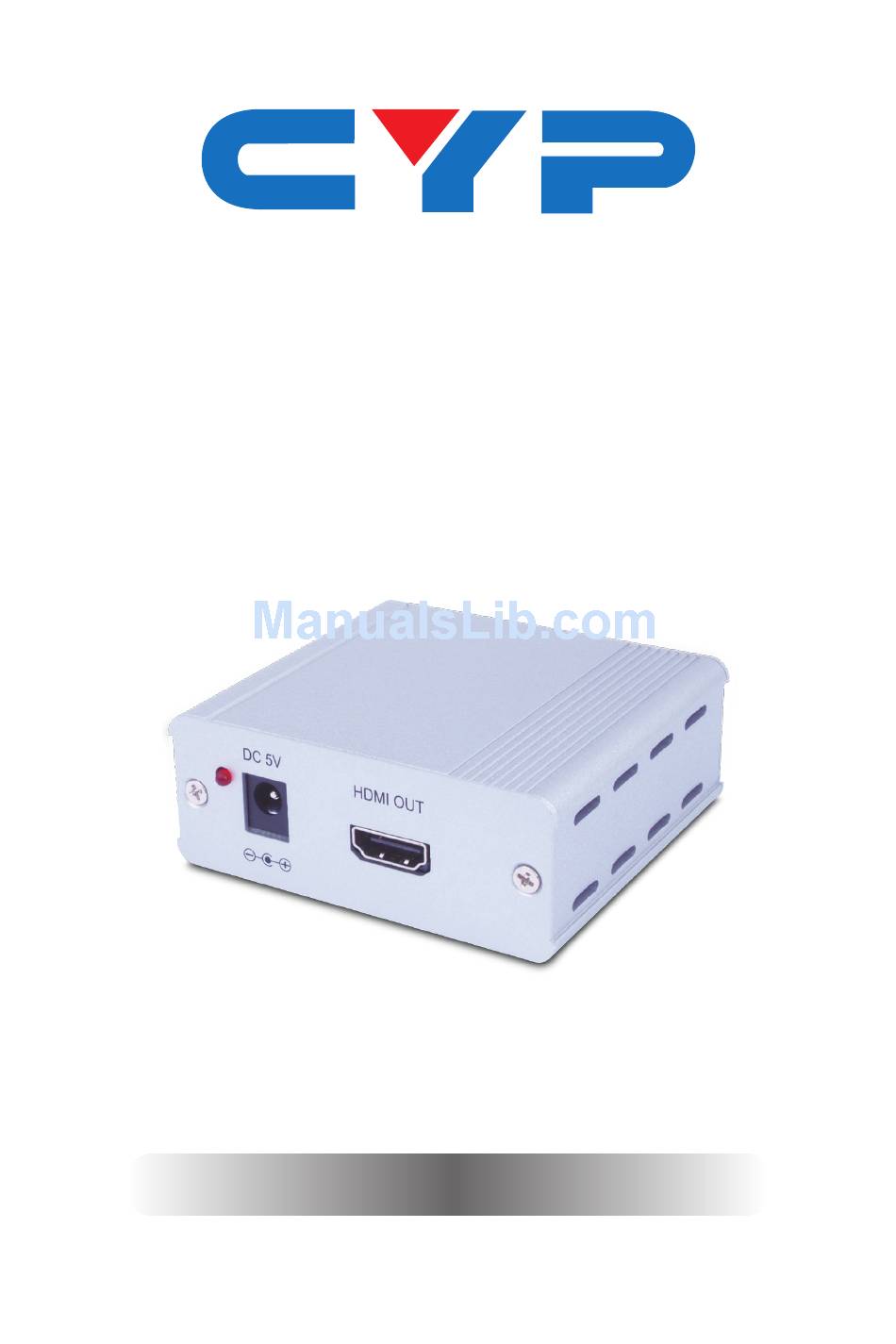

Page 1: Operation Manual
CH-107RXN Single CAT6 to HDMI Receiver Operation Manual Operation Manual... -
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........3 7. Connection Diagram ......4 8. -
Page 6: Introduction
1. INTRODUCTION The Single CAT6 to HDMI Receiver can receive High Definition video (1080p/Deep Color) and audio (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) over a single run of CAT6 cable from a compatible transmitter unit and convert the signal to HDMI for display on a HDTV. -
Page 7: Features
5. FEATURES • HDMI, HDCP 1.1 and DVI 1.1 compliant • Supports digital video formats in 'Deep Color' mode at up to 36-bit (12-bit/color) • Supports lossless compressed Digital Audio formats (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) •... -
Page 8: Operation Controls And Functions

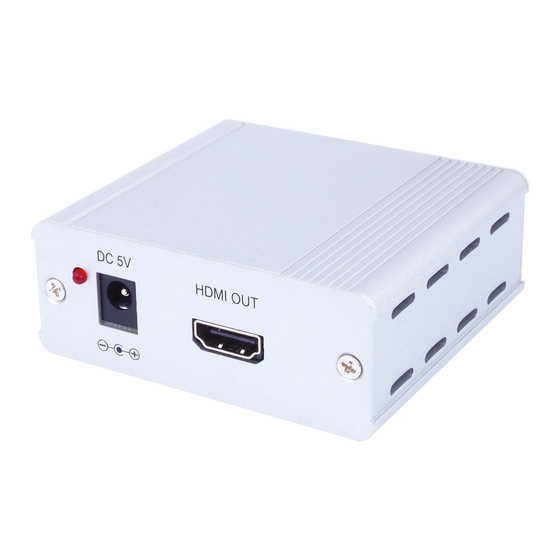

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel DC 5V HDMI OUT DC 5V: Connect the 5V DC power supply to the unit and plug the adaptor into an AC outlet. HDMI OUT: Connect to the HDMI or DVI input (with a DVI to HDMI adaptor) of a display such as an HDTV/HD monitor with an HDMI cable or cascade to a compatible Transmitter unit (see Section 8.2) to extend the transmission distance. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM DVD or Blu-ray Player HDMI Input Power Supply DC 5V HDMI INPUT CAT6 OUT CAT6/7 Cable (45m/8-bit) CAT6 IN MIN. MAX. Power Supply DC 5V HDMI OUT HDMI Output Display... -
Page 10: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 2.25 MHz/6.75 Gbps Input Port 1×RJ45 Output Port 1×HDMI (Female connector) HDMI Cable Distance 10m@1080p/8-bit or 12-bit CAT6 Cable Distance 45m@1080p/8-bit or 15m@1080p/12-bit Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human Body Model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) -
Page 11: Compatible Products
8.2 Compatible Products (Single CAT6) The models listed below are compatible with each other: • CLUX-8MCAT • CH-107TX • CH-107RXN • CH-1107TX • CH-1107EX 9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable Digital Visual Interface... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
