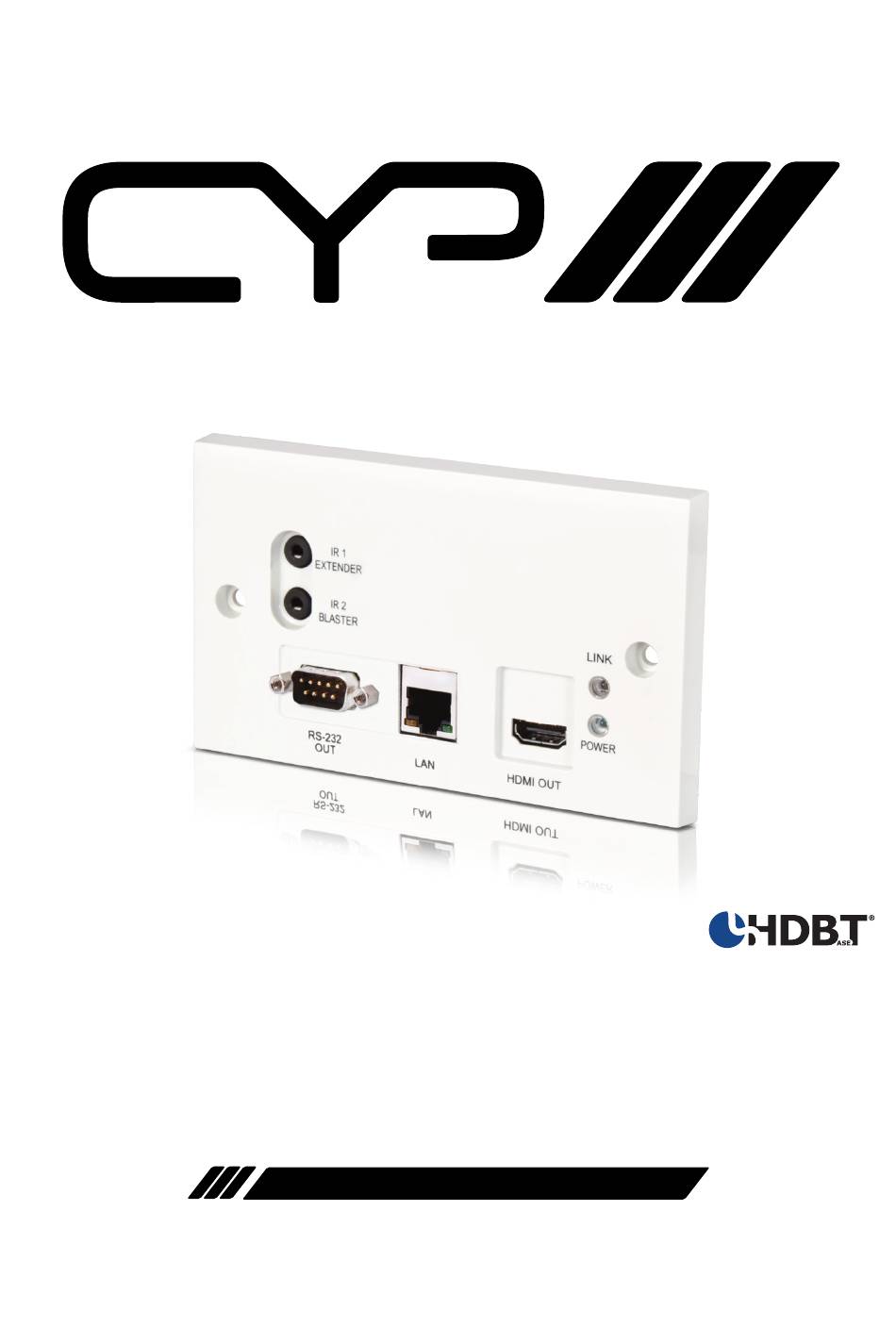

- Page 1 5-Play™ PU-507WPRX 5Play™ HDBaseT™ Wall Plate Receiver (inc. PoC & single LAN, up to 100m) OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Receiver Front Panel ......... 8 6.2 Receiver Rear Panel ........9 6.3 IR Cable Pin Assignment ......9 6.4 D-Sub 9 Pin Definitions ......10 7. -
Page 6: Introduction
1. INTRODUCTION The flagship PU-507-RX HDBaseT™ Receiver is now available in a Wall Plate version for seamless integration into any installation. It is designed to receive uncompressed video, audio and IR control data from a compatible transmitter over a single run of CAT5e/6/7 cable at a distance of up to 100 metres at 1080p or 70 metres at 4K. -
Page 7: Features
5. FEATURES HDMI 1.x and DVI 1.0 compliant HDCP compliant Supports HDMI 3D and 4K x 2K features Supports HDCP repeater and CEC bypass Supports distance up to 100m/328ft at 1080p and 70m/229ft at 4K through CAT5e/6/7 cable HDMI input resolutions up to 4K@60Hz (YUV 4:2:0, 8-bit) or 4K@30Hz ( YUV 4:4:4, 8-bit) Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, and Bitstream over HDMI... -
Page 8: Operation Controls And Functions

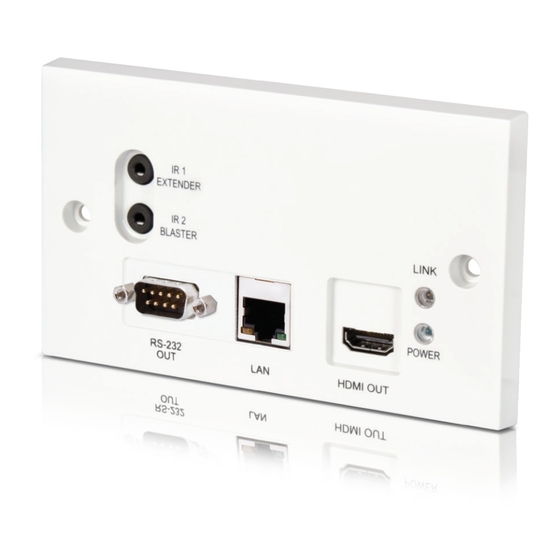

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Receiver Front Panel IR 1 EXTENDER IR 2 BLASTER LINK POWER RS-232 HDMI OUT IR 1 EXTENDER: Connect an IR Extender cable for IR signal reception. Signals received will be transmitted from any IR blaster connected to the transmitter unit. -
Page 9: Receiver Rear Panel
6.2 Receiver Rear Panel CAT5e/6/7 IN: Connect to the transmitter unit with a single CAT5e/6/7 cable for transmission of all data signals. 6.3 IR Cable Pin Assignment IR Blaster Power IR Blaster Signal IR Extender IR Signal Power Ground... -
Page 10: D-Sub 9 Pin Definitions
6.4 D-Sub 9 Pin Definitions Define TX/RX TxD/RxD RxD/TxD... -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM Option 1: Point to Point RS-232 Equipped PC or Notebook DVD/Blu-ray Player Internet Router HDMI LAN Connection Input RS-232 1.5m 60° IR Blaster 60° Compatible RS-232 In Transmitter HDMI In IR Extender Transmitter HDMI to CAT5e/6 with LAN/IR/RS232 IR1 Blaster unit with PoC Power... -
Page 12: Option 2: Matrix System
Option 2: Matrix System TV/Display Extender CAT 5e/6/7 Cable HDMI 1.5m (LAN Serving) Output 60° IR Blaster 60° IR 1 EXTENDER IR 2 BLASTER LINK POWER RS-232 HDMI OUT Single Internet CAT5e/6/7 Router Cable Up to 7 Other Zones HDBaseT IR OUT IR OUT IR OUT... -
Page 13: Specifications
8. SPECIFICATIONS 8.1 Technical Specification Video Bandwidth 340 MHz/10.2 Gbps Input Ports 1×CAT5e/6/7,1×LAN, 1×IR Extender Outpu t Ports 1×HDMI,1×RS-232, 1×IR Blaster IR Frequency 30 – 50kHz (30 – 60kHz under ideal conditions) Baud Rate Up to 115200/sec ESD Protection Human-body Model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Dimensions... -
Page 14: Cable Specifiions
8.2 Cable Specifiions 1080p 4K30 4K60 (4:4:4) (4:2:0) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input HDMI Output Ethernet Cable Cat.5e/6/7 100m 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit colour - Data rates lower than 5.3Gbps or below 225MHz TMDS clock 4K30 (UHD Video) - 4K@24/25/30Hz &... -
Page 15: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High Definition Multimedia Interface Infrared... - Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.02...
