Artesyn MVME3100 Quick Start Manual

MVME3100

Quick Start Guide

P/N:6806800M29B (May 2014)
1
What's in the box?
Make sure you receive all items of your
shipment:

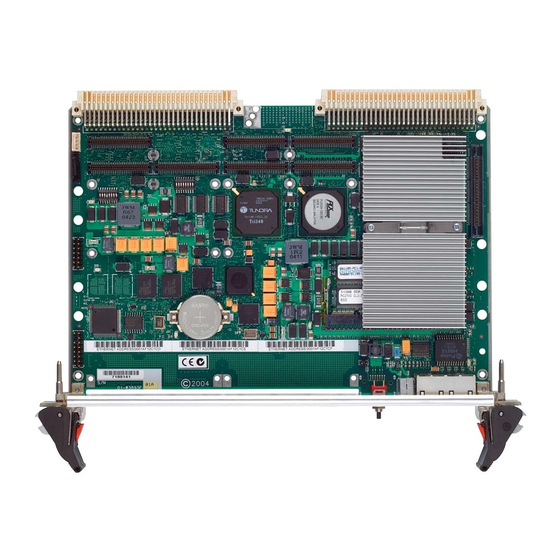

• MVME3100 board
• Other items that were ordered
• Printed Safety Notes
When installing or servicing the
module or accessories, strictly
observe the safety precautions in
the Safety Notes. Otherwise, per-
sonal injury or property damage
may occur.
2
Observe ESD-safe
measures
• Use either a properly grounded ESD wrist
strap or make sure that you are working
in an ESD-safe environment.
• Connect your ESD wrist strap to the ESD
connector at the front or the rear of the
system.
3
Prepare the installation
site
For information on the environmental and
power requirements, see the MVME3100
Installation and Use manual.
4
Configure the hardware
To produce the desired configuration and
ensure proper operation of the MVME3100,
you may need to carry out certain hardware
modifications before installing the module.
For more information, refer to MVME3100
Installation and Use.

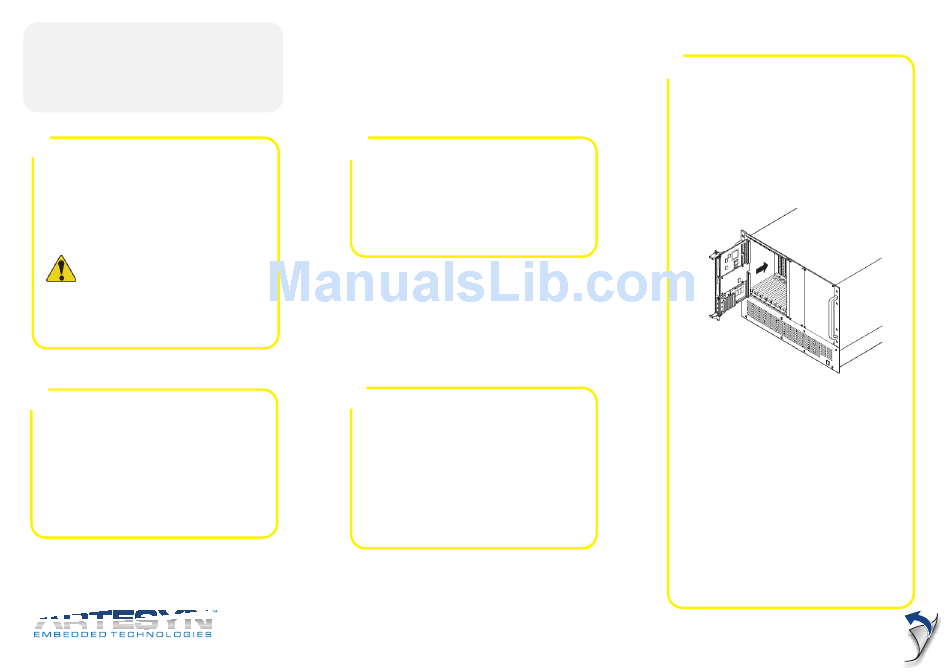

5
Install the MVME3100
board
1. Remove the filler panel filling the
slot on the chassis.
2. Install the top and bottom edge of
the MVME3100 into the guides of
the chassis.
3. Ensure that the levers of the two
injector/ejectors are in the outward
position.
4. Slide the MVME3100 into the chas-
sis until resistance is felt.
5. Verify that the MVME3100 is prop-
erly positioned and secure it to the
chassis using the two screws located
adjacent to the injector/ejector
levers.
6. Connect the appropriate cables to
the MVME3100.
