Shield pin configuration
3

High-Level Functional Description

The Intel® Edison kit for Arduino*expansion board is designed to be hardware and software pin-compatible with
Arduino shields designed for the Uno R3. Digital pins 0 to 13 (and the adjacent AREF and GND pins), analog inputs
0 to 5, the power header, ICSP header, and the UART port pins (0 and 1) are all in the same locations as on the
Arduino Uno R3. This is also known as the Arduino 1.0 pinout. Additionally, the Intel® Edison kit for Arduino* board
includes a micro SD card connector, a micro USB device port connected to UART2, and a combination micro USB
device connector and dedicated standard size USB 2.0 host Type-A connector (selectable via a mechanical
microswitch).

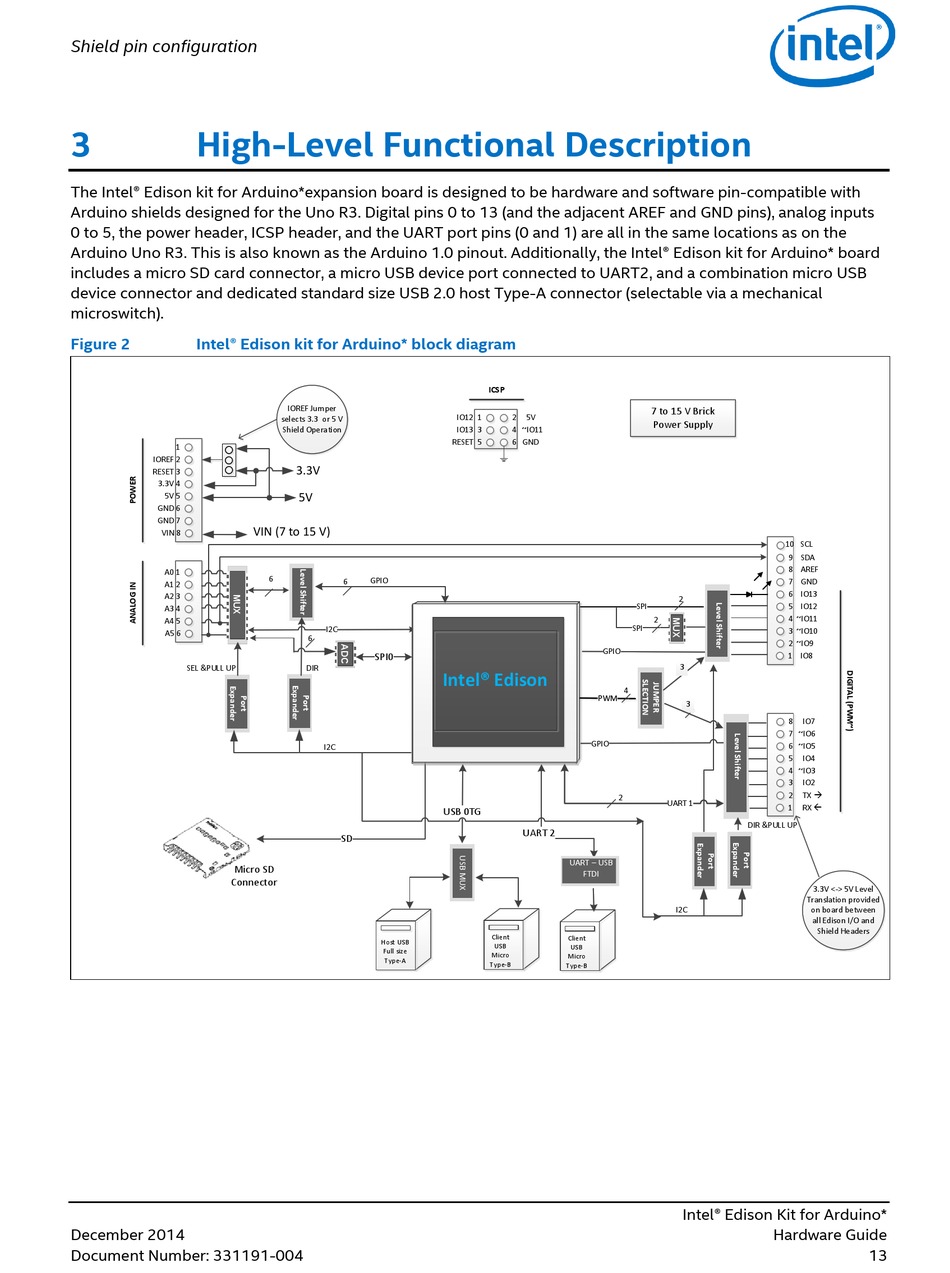

Figure 2 Intel® Edison kit for Arduino* block diagram
1
IOREF 2
RESET 3
3.3V 4
5V 5
GND 6
GND 7
VIN 8
A0 1
A1 2
A2 3
A3 4
A4 5
A5 6
SEL &PULL UP
Micro SD
Connector
December 2014
Document Number: 331191-004
IOREF Jumper
selects 3.3 or 5 V
Shield Operation
3.3V
5V
VIN (7 to 15 V)
6
GPIO
6
I2C
6
SPI0
DIR
I2C
SD
Host USB
Full size
Type-A
ICSP
IO12 1 2 5V
IO13 3 4 ~IO11
RESET 5 6 GND
GPIO
Intel® Edison
4
GPIO
2
USB 0TG
UART 2
UART – USB
FTDI
Client
Client
USB
USB
Micro
Micro
Type-B
Type-B
7 to 15 V Brick
Power Supply
10 SCL
9 SDA
8 AREF
7 GND
6 IO13
2
SPI 5 IO12
4 ~IO11
2
SPI
3 ~IO10
2 ~IO9
1 IO8
3
3
8 IO7
7 ~IO6
6 ~IO5
5 IO4
4 ~IO3
3 IO2
2 TX 
UART 1
1 RX 
DIR &PULL UP
3.3V <-> 5V Level
Translation provided
I2C
on board between
all Edison I/O and
Intel® Edison Kit for Arduino*
Hardware Guide
Shield Headers
13
