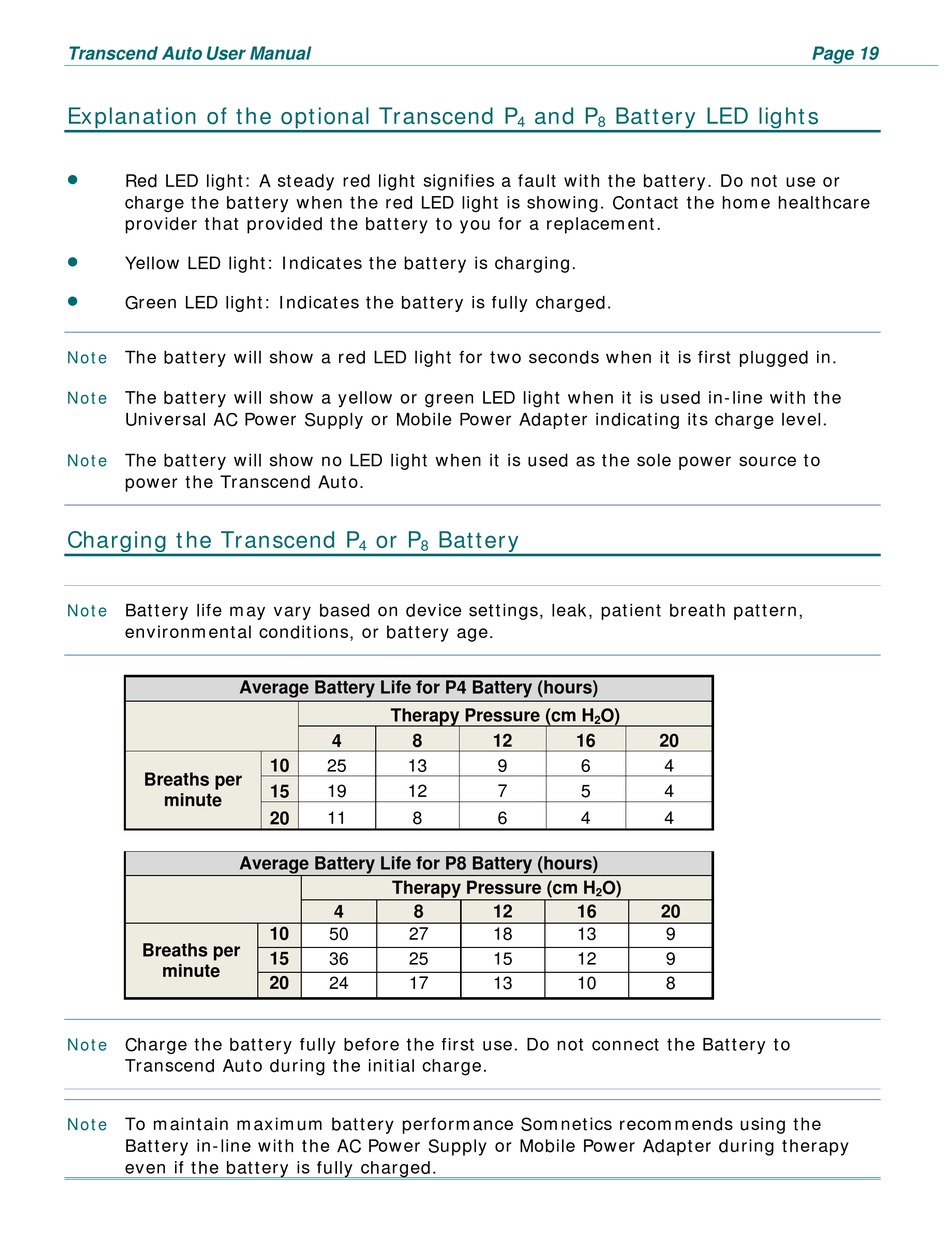

Explanation of the optional Transcend P

Red LED light: A steady red light signifies a fault with the battery. Do not use or
charge the battery when the red LED light is showing. Contact the home healthcare
provider that provided the battery to you for a replacement.

Yellow LED light: Indicates the battery is charging.

Green LED light: Indicates the battery is fully charged.
Note The battery will show a red LED light for two seconds when it is first plugged in.
Note The battery will show a yellow or green LED light when it is used in-line with the
Universal AC Power Supply or Mobile Power Adapter indicating its charge level.
Note The battery will show no LED light when it is used as the sole power source to
power the Transcend Auto.
Charging the Transcend P
Note Battery life may vary based on device settings, leak, patient breath pattern,
environmental conditions, or battery age.
Average Battery Life for P4 Battery (hours)
Breaths per
minute
Average Battery Life for P8 Battery (hours)
Breaths per
minute
Note Charge the battery fully before the first use. Do not connect the Battery to
Transcend Auto during the initial charge.
Note To maintain maximum battery performance Somnetics recommends using the
Battery in-line with the AC Power Supply or Mobile Power Adapter during therapy
even if the battery is fully charged.
or P Battery
4 8
Therapy Pressure (cm H
4 8
10 25 13
15 19 12
20 11 8
Therapy Pressure (cm H
4 8
10 50 27
15 36 25
20 24 17
and P Battery LED lights
4 8
O)
2
12 16 20
9 6 4
7 5 4
6 4 4
O)
2
12 16 20
18 13 9
15 12 9
13 10 8
