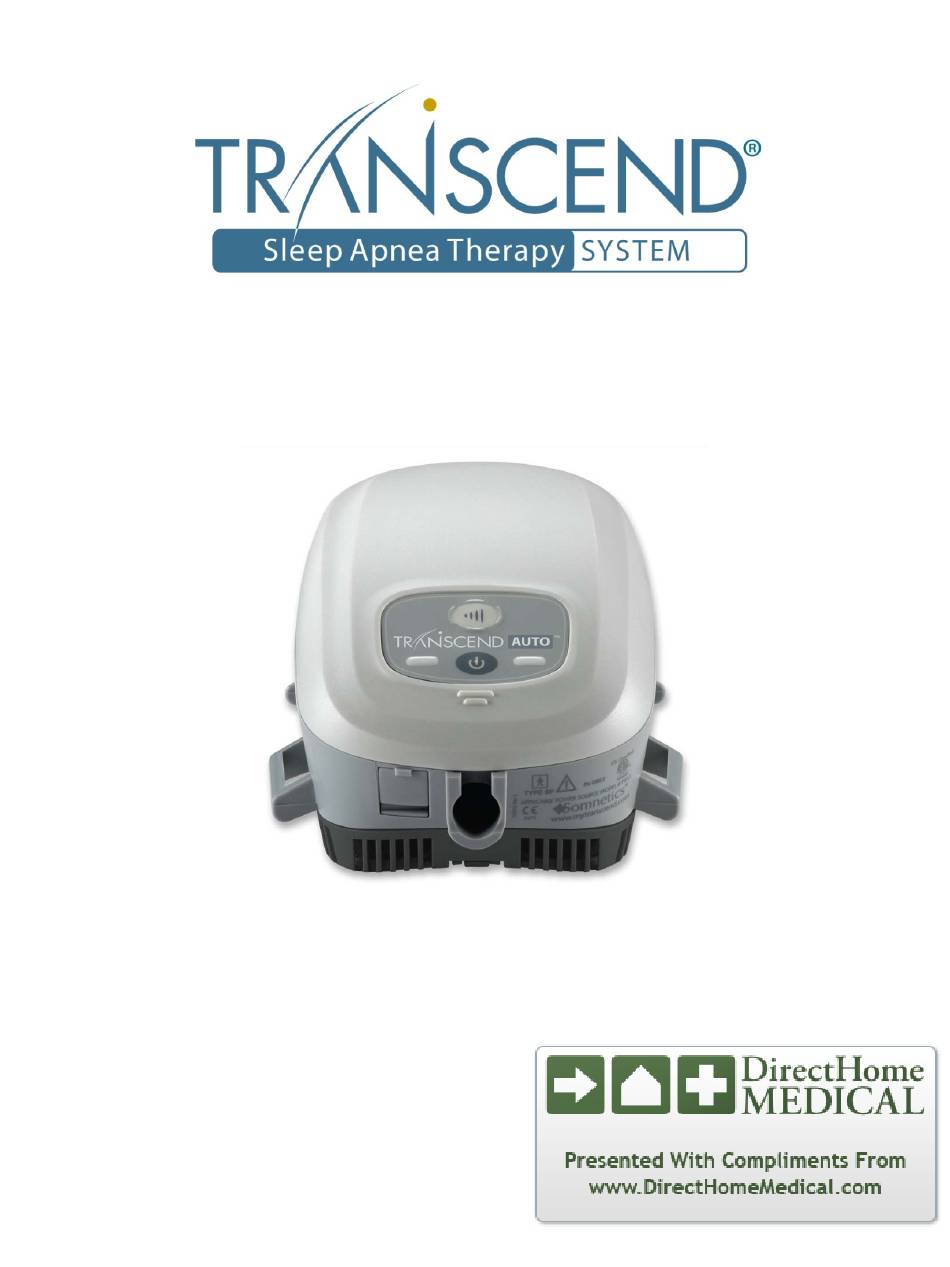

- Page 1 AUTO User Manual...
- Page 2 ® ® Trademark Somnetics and Transcend are registered trademarks of Somnetics International, Inc.; all rights reserved. Copyright © Copyright 2013 Somnetics International, Inc.; all rights reserved. Contact Somnetics International, Inc. Corporate headquarters Somnetics International, Inc. Email info@somnetics.com http://www.mytranscend.com/ Telephone 651.621.1800 Toll-free telephone 877.621.9626...
- Page 3 Page iii Transcend AUTO Sleep Apnea Therapy User Manual About this user manual This user manual is designed to be duplex-printed (printed on both sides of each Note sheet). If not printed in this manner, you will find blank pages in your printout.
-
Page 4: Table Of Contents
Page iv Transcend AUTO Sleep Apnea Therapy User Manual Contents Introduction ....................7 Indications for use ....................7 Contraindications ....................7 Precautions for use ....................7 Warnings ....................... 8 Cautions ......................9 Symbols ......................10 Components of the Transcend AUTO System .......... - Page 5 Page v Transcend AUTO Sleep Apnea Therapy User Manual Fault codes....................... 33 Alert codes ....................... 34 Troubleshooting ..................35 Appendix: Part numbers ................35 Disposable parts ....................36 Accessories ...................... 36 Replacement parts .................... 36 Appendix: Specifications ................38 Transcend AUTO .....................
-
Page 6: Introduction
Introduction The Transcend AUTO provides positive airway pressure to users in the range of 4 to 20 as prescribed by the clinician. The therapeutic pressure is automatically titrated by the device. Buttons and LED lights facilitate control and provide operational feedback. A DC power jack and a USB port are also incorporated into the Transcend AUTO. -
Page 7: Warnings
Indicates a tip, explanation or feature to aid in understanding, or efficient operation Note of the device. Warnings • Do not allow water to enter this device. Transcend AUTO should not be exposed to environmental conditions where the system may get wet. • This device is not intended for life support. •... -
Page 8: Cautions
Appendix: Part Numbers. supplies, mobile power adapter, or batteries. See • Discontinue use of the Transcend AUTO and contact your physician if respiratory or skin irritations occur. • Do not introduce objects into the Transcend AUTO air inlet or air outlet. -
Page 9: Symbols
Page 9 Transcend AUTO Sleep Apnea Therapy User Manual Symbols Attention: Consult accompanying documents Type BF Applied Part ETL Classified ETL Seal of Approval demonstrating quality, safety and professional manufacturing of medical product Upper and lower temperature limits Separate collection for electrical and electronic equipment per EC Directive 2002/96/EC. –... -
Page 10: Components Of The Transcend Auto
Components of the Transcend AUTO System Begin by unpacking all items from the Transcend AUTO travel bag and inspect them to ensure they were not damaged during shipment. Report any missing or damaged items to the home healthcare provider that provided the Transcend AUTO System to you. -
Page 11: What's Not Included (All Sold Separately)
Page 11 Transcend AUTO Sleep Apnea Therapy User Manual What’s not included (all sold separately) • B Waterless Humidification System • M Waterless Humidification System • Nasal seal (mask cushion for use with H B or H M Waterless Humidification Systems) •... -
Page 12: Description Of Transcend Auto
Description of Transcend AUTO System components Transcend AUTO Device The Transcend AUTO comes ready to generate and regulate continuous positive airway pressure therapy for delivery to the interface. An external power source connects to the Transcend AUTO to supply power to the device. -
Page 13: Power Connection Jack And Usb Port
DC power source to operate the Transcend AUTO. A variety of power sources may be used to power the Transcend AUTO. An AC to DC converting power supply is provided with your device and should be used when powering the device by line (wall outlet) power. -
Page 14: Air Inlet Filter
Page 14 Transcend AUTO Sleep Apnea Therapy User Manual Air Inlet Filter During therapy operation ambient air is drawn into the Transcend AUTO through an Air Inlet Filter. The Filter Media should be cleaned at least weekly according to the... - Page 15 Transcend AUTO Sleep Apnea Therapy User Manual Assembling the Transcend AUTO System The mask interface connects to the Transcend AUTO via the air supply tube. One end of the air supply tube attaches to the outlet port of the Transcend AUTO via the Universal Hose Adapter.
-
Page 16: Powering The Transcend Auto
Page 16 Transcend AUTO Sleep Apnea Therapy User Manual Powering the Transcend AUTO There are three choices for powering your Transcend AUTO device: • Using the Multi-plug Universal Power Supply (PSA2) • Using the optional Transcend P Overnight (BAT4) or P... -
Page 17: Using The Multi-Plug Universal Power Supply
The Transcend AUTO power-up LED flash sequence should initiate. Once the power-up LED flash sequence is complete the LED lights will turn off. This sequence indicates that power is being supplied to the Transcend AUTO and that it has successfully entered Standby Mode. -
Page 18: Using The Transcend P
P battery outlet cable to the Transcend AUTO by inserting the barrel connector into the power jack on the Transcend AUTO. Be sure the power-up LED flash sequence completes indicating that power is being supplied to the Transcend AUTO and that it has successfully entered Standby Mode. -
Page 19: Mobile Power Adapter
Transcend AUTO Sleep Apnea Therapy User Manual Insert the barrel plug of the Mobile Power Adapter into the battery. Insert the barrel plug of the battery into the Transcend AUTO power jack so that the plug and cord face upward. - Page 20 Page 20 Transcend AUTO Sleep Apnea Therapy User Manual • A full battery charge is indicated when the LED light on the Battery turns from yellow to green. • Charge time for a fully discharged Battery may be up to five (5) hours for the P Overnight Battery and up to eight (8) hours for the P Multi-Night Battery.
-
Page 21: Using The Optional Chest Or Arm Strap With A Transcend P
Page 21 Transcend AUTO Sleep Apnea Therapy User Manual Using the optional chest or arm strap with a Transcend P Overnight or Multi-Night Battery Slide battery into the battery pouch and attach the Velcro strap to secure. Insert the buckle through the loop of the battery pouch with the Velcro facing towards the battery pouch. -
Page 22: Using The Transcend Mobile Power Adapter (Mpa1)
Make certain that the cables are securely connected to the Mobile Power Adapter Note and to the power jack on the back of the Transcend AUTO. It may be necessary to unplug the cables and reconnect to ensure a good connection. -
Page 23: Using The Transcend Auto Tm
The Transcend AUTO operational status is displayed by LED illumination states. When a power source is connected to the device the Transcend AUTO power-up LED flash sequence should initiate. Once the power-up LED flash sequence is complete the LED lights will turn off. -
Page 24: Starting Therapy
Be sure your mask is fit firmly in place before initiating therapy. To initiate therapy press the Power button. Pressing the Power button when Transcend AUTO is in Standby Mode will initiate On Mode. Air flow will begin as the blower delivers or ramps to prescribed therapy pressure. -
Page 25: Using The Ezex Function
Page 25 Transcend AUTO Sleep Apnea Therapy User Manual Using the EZEX function The EZEX function is a special feature that decreases therapy pressure on exhalation. This feature is designed to provide additional comfort to the patient by reducing the amount of resistance they experience as they exhale. -
Page 26: Replacing The Filter Media
Transcend AUTO Sleep Apnea Therapy User Manual Replacing the Filter Media The Transcend AUTO Filter Media should be replaced every six months at minimum. Remove the Filter Frame by gently pressing the button release at the back of the Filter Frame towards the front of the device. Then pull the filter frame away from the device. -
Page 27: Caring For Your Transcend Auto
5. Rinse the cloth in clear water to remove residual cleaning solution. 6. Wring excess water from the cloth then wipe the Transcend AUTO using a gentle front to back wiping motion to remove any detergent solution remaining on its surface. - Page 28 Page 28 Transcend AUTO Sleep Apnea Therapy User Manual Cleaning of Accessories The following accessories should be cleaned with a 5% solution of mild liquid detergent in distilled water (1.6 fl oz liquid cleaning detergent per quart of distilled water). Mild detergent should contain biodegradable anionic surfactants and no phosphate.
- Page 29 Page 29 Transcend AUTO Sleep Apnea Therapy User Manual 3. Clean the inside of the air supply tube by lifting, then lowering the ends of the tube while the tube is filled with cleaning solution. 4. Rinse accessories by immersing in distilled water. Move the accessory in a back and forth motion for approximately10 seconds to remove cleaning agent residue.
- Page 30 Follow instructions for cleaning the exterior of the device as noted in Cleaning the Exterior (above). Apply a new bacterial/viral filter to the Universal Hose Adapter of the Transcend AUTO and attach a new air supply tube before providing the device to a new user.
-
Page 31: Fault Codes
Fault, alert and reminder codes Fault codes When the Transcend AUTO encounters a fault the processor resets and enters a fault loop. In this loop, the device repeatedly flashes the yellow fault LED to indicate the specific fault encountered. If the device is reset or power cycled while in fault mode, it re-enters fault mode upon power up. -
Page 32: Alert Codes
Page 32 Transcend AUTO Sleep Apnea Therapy User Manual Alert codes Alerts are similar to faults but they do not reset the processor when they occur (i.e., the AUTO device continues to deliver therapy pressure). Device Fault Error Comments Flashes... -
Page 33: Troubleshooting
Page 33 Transcend AUTO Sleep Apnea Therapy User Manual Troubleshooting Problem Probable Cause Solution Discomfort due to a feeling Transcend AUTO device Breathe slowly through your nose with of high pressure. pressure may be set too high. your mouth closed. -
Page 34: Appendix: Part Numbers
Page 34 Transcend AUTO Sleep Apnea Therapy User Manual Appendix: Part numbers This section presents three topics: • Disposable parts • Accessories • Replacement parts Disposable parts Item Part Item Part number number Filter Media 503067 Base Pad (optional) 503009... -
Page 35: Appendix: Specifications
Page 35 Transcend AUTO Sleep Apnea Therapy User Manual Appendix: Specifications This section presents the following topics: • Transcend AUTO • AC power supply - PSA2 • Mobile power adapter (optional) - MPA1 • Batteries • Transcend AUTO performance •... - Page 36 Page 36 Transcend AUTO Sleep Apnea Therapy User Manual Transcend AUTO performance Working pressure range: 4 to 20 cm H Accuracy of pressure setting: ±1 cm H O or ±10%, whichever is greater Maximum system shutdown pressure: 30 cm H...
-
Page 37: Electromagnetic Emissions
• IEC 60601-1 Compliance Electromagnetic emissions The Transcend AUTO system is intended for use in the electromagnetic environment specified below. The customer or the user of the system should ensure that it is used in such an environment. Emissions test Compliance Electromagnetic environment—guidance... - Page 38 Page 38 Transcend AUTO Sleep Apnea Therapy User Manual Immunity test IEC 60601 test Compliance level Electromagnetic level environment—guidance Voltage dips, short <5% U (>95% dip <5% U (>95% dip in Linepower quality should be that interruptions, and in U ) for 0.5 cycle...
- Page 39 Page 39 Transcend AUTO Sleep Apnea Therapy User Manual IEC 60601-1 compliance Protection against electric shock: Class II Type BF Degree of protection against ingress of IP22 water: Equipment not suitable for use in the presence of a flammable Use of flammable gasses: anesthetic mixture with air or oxygen, or with nitrous oxide.
- Page 40 Page 40 Transcend AUTO Sleep Apnea Therapy User Manual Maximum flow rate Test Pressures (typical) 4 cm 8 cm 12 cm 16 cm 20 cm Measured pressure at the patient connection port (hPa) 11.0 15.0 19.0 Average flow at the patient...
-
Page 41: Appendix: Limited Warranty
2 years from the date of sales by Somnetics to the dealer. The Transcend P4 Overnight and P8 Multi-night battery packs are warranted for a period of 9 months from the date of sale by Somnetics to the dealer. - Page 42 Somnetics International, Inc. 33 5th Avenue NW, Suite 500 New Brighton, Minnesota 55112 USA http://www.mytranscend.com/ Phone: 651.621.1800 Toll-free: 877.621.9626 Fax: 651.204.0064 Transcend AUTO User Manual 103347 Rev B...
