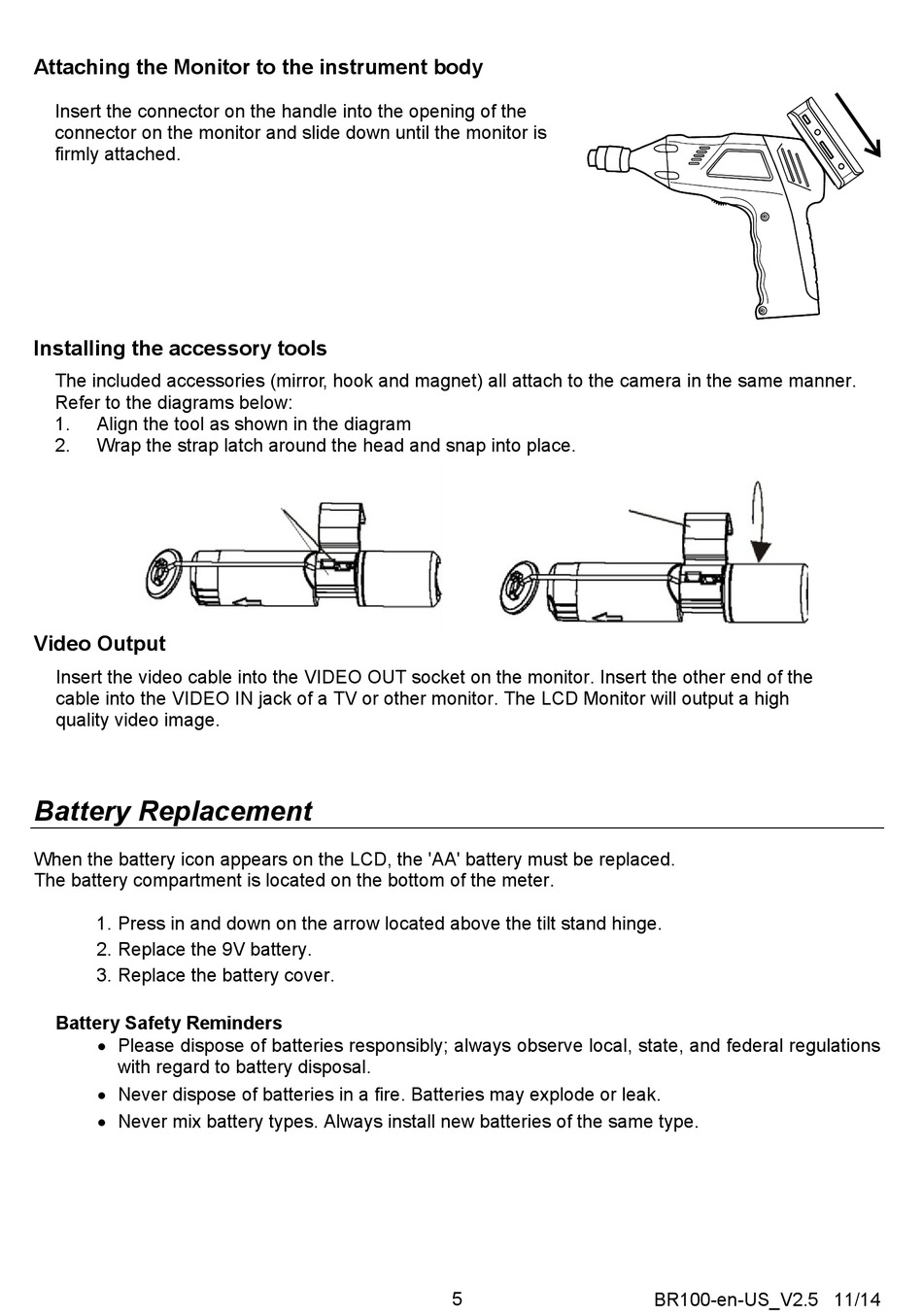

Attaching the Monitor to the instrument body
Insert the connector on the handle into the opening of the
connector on the monitor and slide down until the monitor is
firmly attached.
Installing the accessory tools
The included accessories (mirror, hook and magnet) all attach to the camera in the same manner.
Refer to the diagrams below:
1. Align the tool as shown in the diagram
2. Wrap the strap latch around the head and snap into place.
Video Output
Insert the video cable into the VIDEO OUT socket on the monitor. Insert the other end of the
cable into the VIDEO IN jack of a TV or other monitor. The LCD Monitor will output a high
quality video image.

Battery Replacement

When the battery icon appears on the LCD, the 'AA' battery must be replaced.
The battery compartment is located on the bottom of the meter.
1. Press in and down on the arrow located above the tilt stand hinge.
2. Replace the 9V battery.
3. Replace the battery cover.
Battery Safety Reminders
 Please dispose of batteries responsibly; always observe local, state, and federal regulations
with regard to battery disposal.
 Never dispose of batteries in a fire. Batteries may explode or leak.
 Never mix battery types. Always install new batteries of the same type.
www.ponpe.com
5
BR100-en-US_V2.5 11/14
