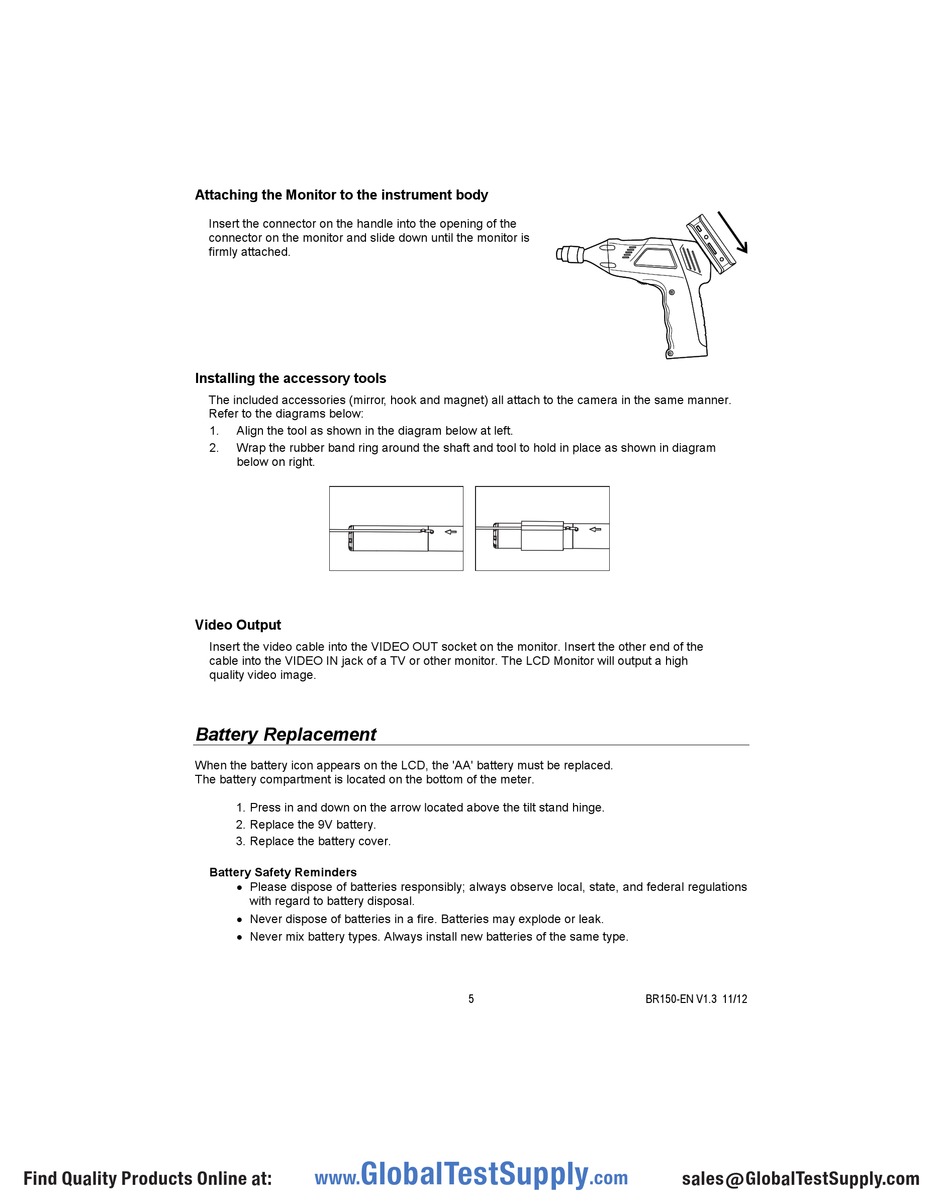

Attaching the Monitor to the instrument body

Installing the accessory tools

Video Output

Battery Replacement

When the battery icon appears on the LCD, the 'AA' battery must be replaced.
The battery compartment is located on the bottom of the meter.
Find Quality Products Online at:
Insert the connector on the handle into the opening of the
connector on the monitor and slide down until the monitor is
firmly attached.
The included accessories (mirror, hook and magnet) all attach to the camera in the same manner.
Refer to the diagrams below:
1. Align the tool as shown in the diagram below at left.
2. Wrap the rubber band ring around the shaft and tool to hold in place as shown in diagram
below on right.
Insert the video cable into the VIDEO OUT socket on the monitor. Insert the other end of the
cable into the VIDEO IN jack of a TV or other monitor. The LCD Monitor will output a high
quality video image.
1. Press in and down on the arrow located above the tilt stand hinge.
2. Replace the 9V battery.
3. Replace the battery cover.

Battery Safety Reminders

 Please dispose of batteries responsibly; always observe local, state, and federal regulations
with regard to battery disposal.
 Never dispose of batteries in a fire. Batteries may explode or leak.
 Never mix battery types. Always install new batteries of the same type.
GlobalTestSupply
www.
5
.com
BR150-EN V1.3 11/12
