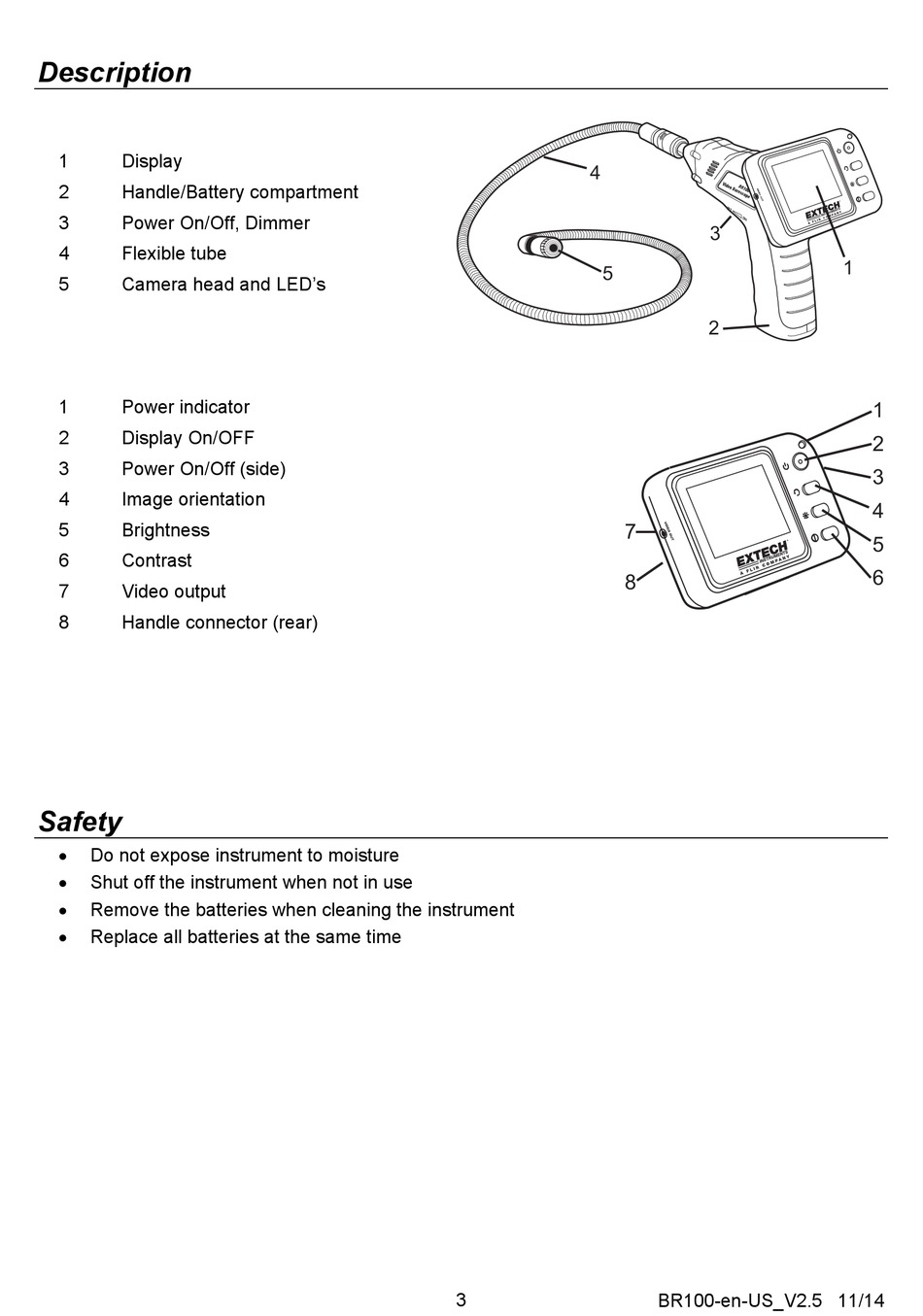

Description
1 Display
2 Handle/Battery compartment
3 Power On/Off, Dimmer
4 Flexible tube
5 Camera head and LED's
1 Power indicator
2 Display On/OFF
3 Power On/Off (side)
4 Image orientation
5 Brightness
6 Contrast
7 Video output
8 Handle connector (rear)
Safety

Do not expose instrument to moisture

Shut off the instrument when not in use

Remove the batteries when cleaning the instrument

Replace all batteries at the same time
www.ponpe.com
4
5
7
8
3
3
2
BR100-en-US_V2.5 11/14
