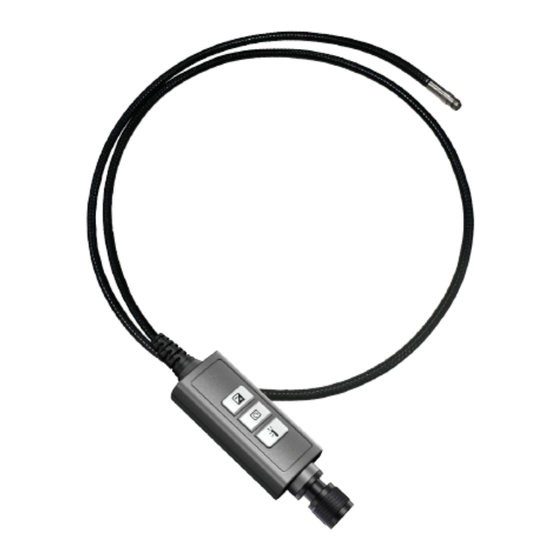

Probe for use with the hdv700 videoscope
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

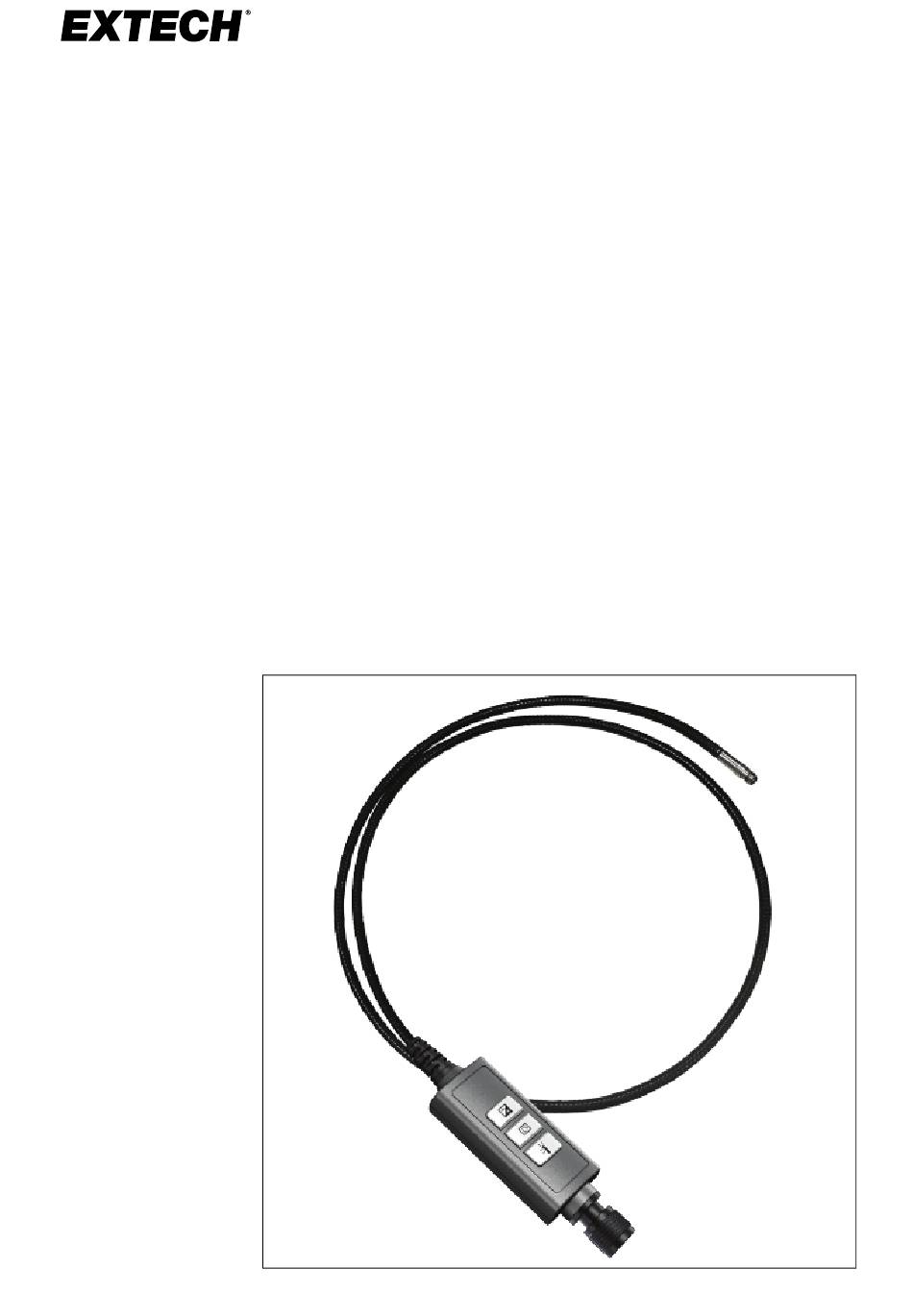

User Manual
HDV7C-55-3 Probe
For use with the HDV700 VideoScope

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDV7C-55-3 and is the answer not in the manual?

Questions and answers

Related Manuals for Extech Instruments HDV7C-55-3

Summary of Contents for Extech Instruments HDV7C-55-3

  • Page 1 User Manual HDV7C-55-3 Probe For use with the HDV700 VideoScope...

  • Page 2: Probe Description

    Introduction This probe is designed for use with the HDV700 High Definition Vid- eoScope. The probe is controlled by its three physical buttons and the touch-screen icons on the HDV700. The HDV700 user manual and additional translations of this probe manual are available from the support site (see the Support section).

  • Page 3: Button Descriptions

    Button Descriptions Boost Button Use the boost button to enhance the image lighting. The figure below, on left, shows an image without boost; the figure on right shows the same image with boost. The red LED on the button will glow when the boost function is en- abled.

  • Page 4: Connecting The Probe

    Connecting the Probe The steps below explain how to safely connect the probe to the HDV700. Always turn the HDV700 power off before replacing the probe. 1. Align the white dot on the probe connector with the white dot on the monitor connector.
  • Page 5 Do not bend or force the probe end into a position > 90°, damage to the probe could result. Do not coil the probe to a diameter greater than 6 inches (15 cm) in use or when storing. Replace the protective cap and tighten the protec- tive ring when storing the probe.

  • Page 6: Specifications

    Specifications Camera resolution 640 x 480 pixels Probe Diameter 0.2 inches (5.5 mm) 90° Field of View Depth of Field 0.4 to 2.4 inches (10 to 60 mm) Probe tip length 0.78 inches (20 mm) Probe length 9.8 ft. (3 m) LED Worklights Four (4) white LED lamps Operating and Storage...

  • Page 7: Two Year Warranty

    Two-year Warranty FLIR Systems, Inc. warrants this Extech brand instrument to be free of defects in parts and workmanship for two years from date of shipment (a six-month limited warranty applies to sensors and cables). To view the full warranty text please visit: http://www.extech.com/support/warranties.
  • Page 8 #NAS100124; r. AB/87921/87926; en-US...
  • Page 10 User Manual last page Website http://www.flir.com Customer support http://support.flir.com Copyright © 2022, FLIR Systems, Inc. All rights reserved worldwide. Disclaimer Specifications subject to change without further notice. Models and accessories subject to regional market considerations. License procedures may apply. Products described herein may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions.
