CME2 Control Panel
CME2 is the PC based software tool used for configuring, commissioning, and troubleshooting Copley Control
digital servo drives. A graphic LED labeled "Safety" on the CME2 Control Panel screen gives the status of the
STO function.
Green =
STO inactive. Torque production in the motor is under user control.
Red
=
STO active. Drive outputs are Safe-Torque-Off

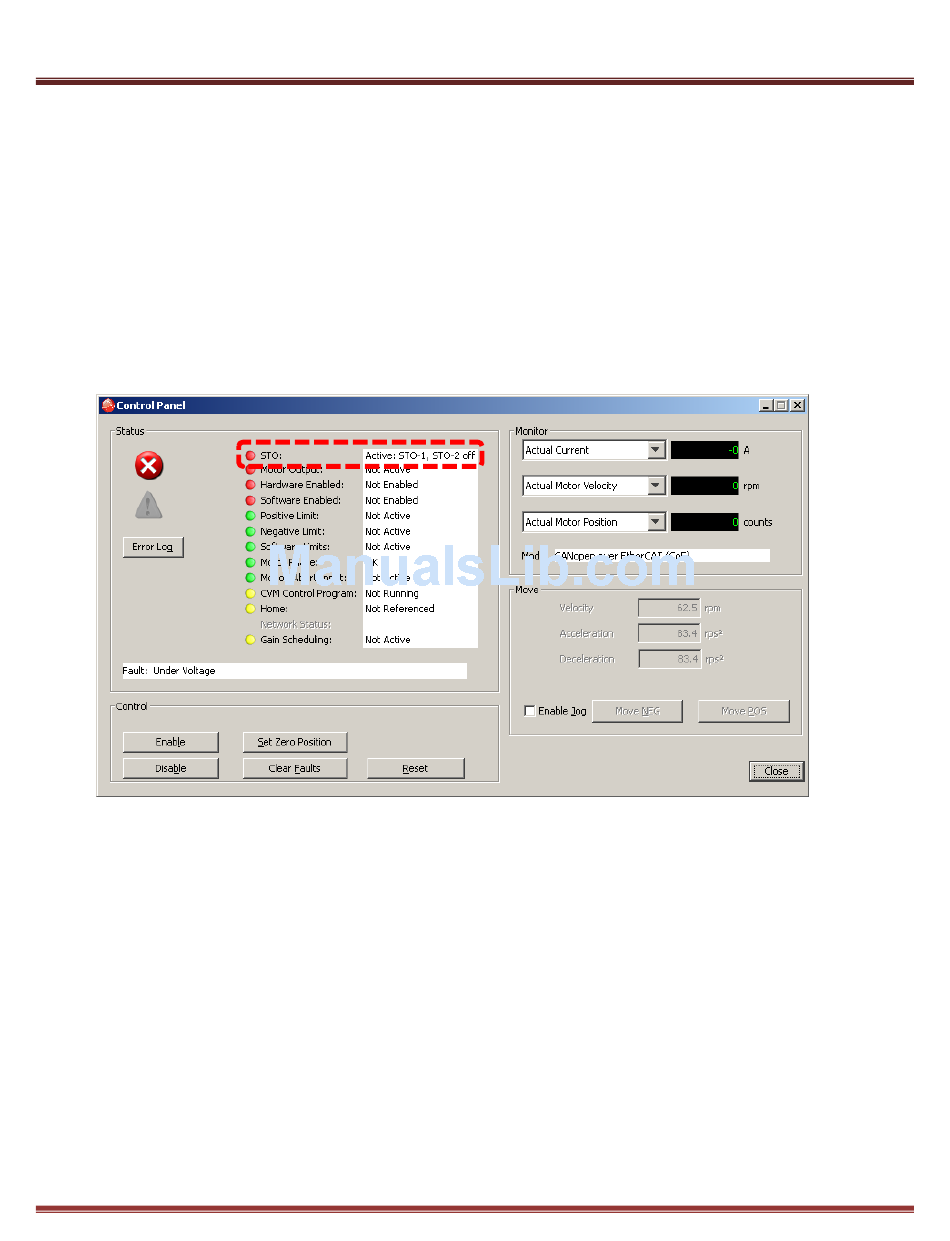

In the screen capture below the Safety (STO) LED is red, indicating that the STO function is active. The
message in the box to the right "Active: STO-1, STO-2 off" refers to the STO channels, both of which are un-
powered, activating the STO function.
Page 25 of 31
16-01553 Rev 00
Fig. 8
