Operation

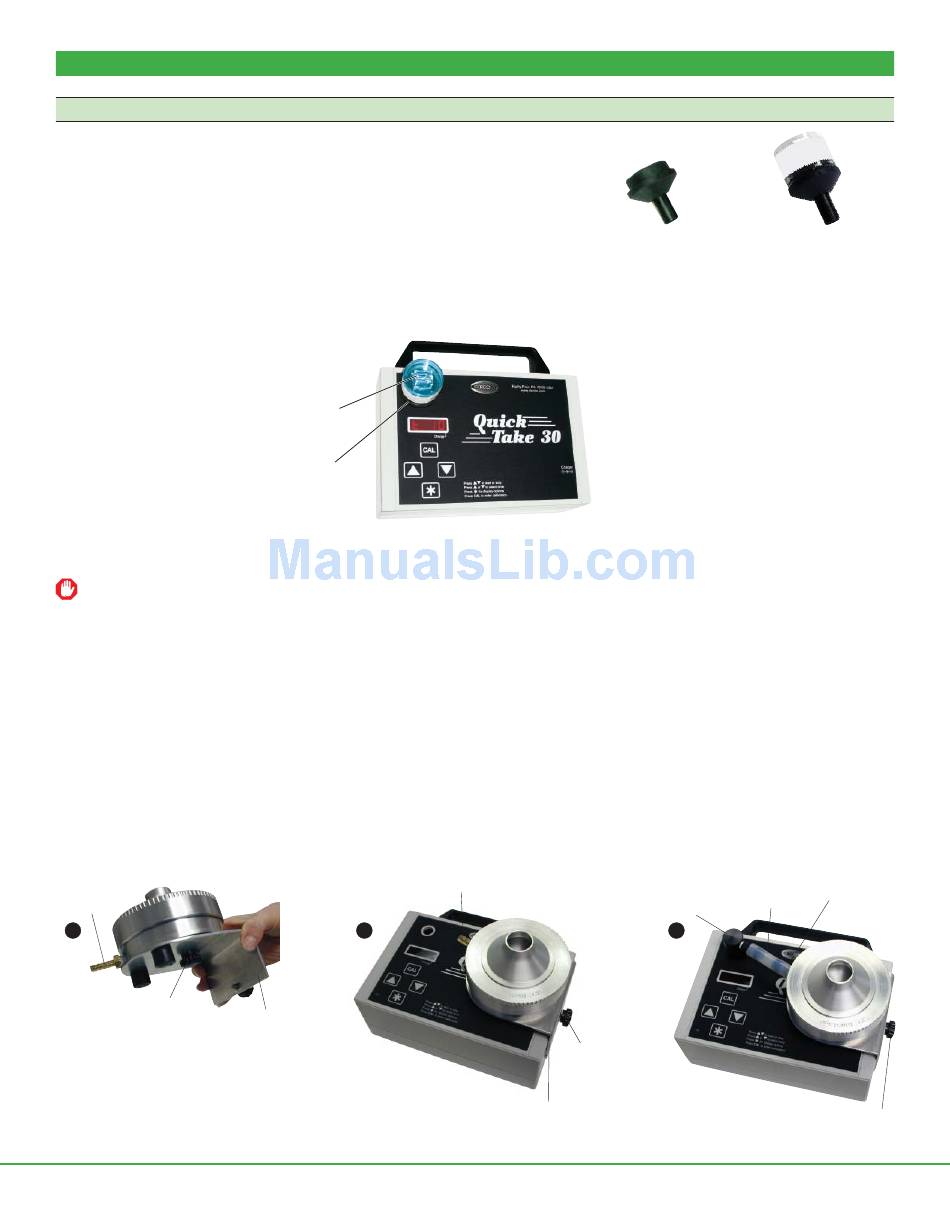

Mount Sampling Media
Spore Trap Cassette
Use the cassett e adapter supplied with the pump.
1. Insert the tube end of the adapter into the pump inlet up to the fl ange.
2. Remove the seal from the outlet of the cassett e and push the cassett e onto
the bowl end of the adapter until a fi rm seal is established.
Calibration Note: Flow rate can be calibrated by pushing the bowl end of a second cassette adapter onto the spore trap cassette inlet (seal
removed), attaching fl exible tubing to the tube end of the second adapter, and attaching the other end of the fl exible tubing to the outlet of a
calibrator. See Set/Calibrate Flow Rate.
For bioaerosol sampling at 15 L/min, SKC recommends using the Leland Legacy
(10 to 30 L/min).
BioStage Impactor
Use with Mounting Bracket accessory (Cat. No. 228-9531).
1. Place the BioStage on the L-shaped bracket. Align the BioStage outlet to the 10 o'clock position on the bracket. Secure with thumbscrew
on the bott om of the bracket.
2. Place the L-shaped bracket to the right on the pump faceplate with the short leg of the bracket fi tt ing over the right edge of the
pump. Align the hole on the short leg of the bracket with the hole on the side of the pump. Secure the bracket to the pump with the
thumbscrew.
3. Insert the inlet adapter (included with bracket) into the pump inlet and connect the inlet adapter tubing to the BioStage outlet.
BioStage
outlet
1
Thumbscrew
Short leg
securing
of bracket
BioStage
VersaTrap
cassette
Cassette
adapter
QuickTake 30 with VersaTrap cassette
mounted in cassette adapter
BioStage outlet
aligned to 10 o'clock position
2
www.skcinc.com
Empty cassette
adapter
pump (5 to 15 L/min) or the QuickTake 30 pump
®
Inlet adapter
inserted into
inlet
3
Thumbscrew
securing
bracket
Bracket
Cassette adapter with
spore trap cassette
Inlet
adapter
tubing
BioStage
outlet
Thumbscrew
securing
bracket
