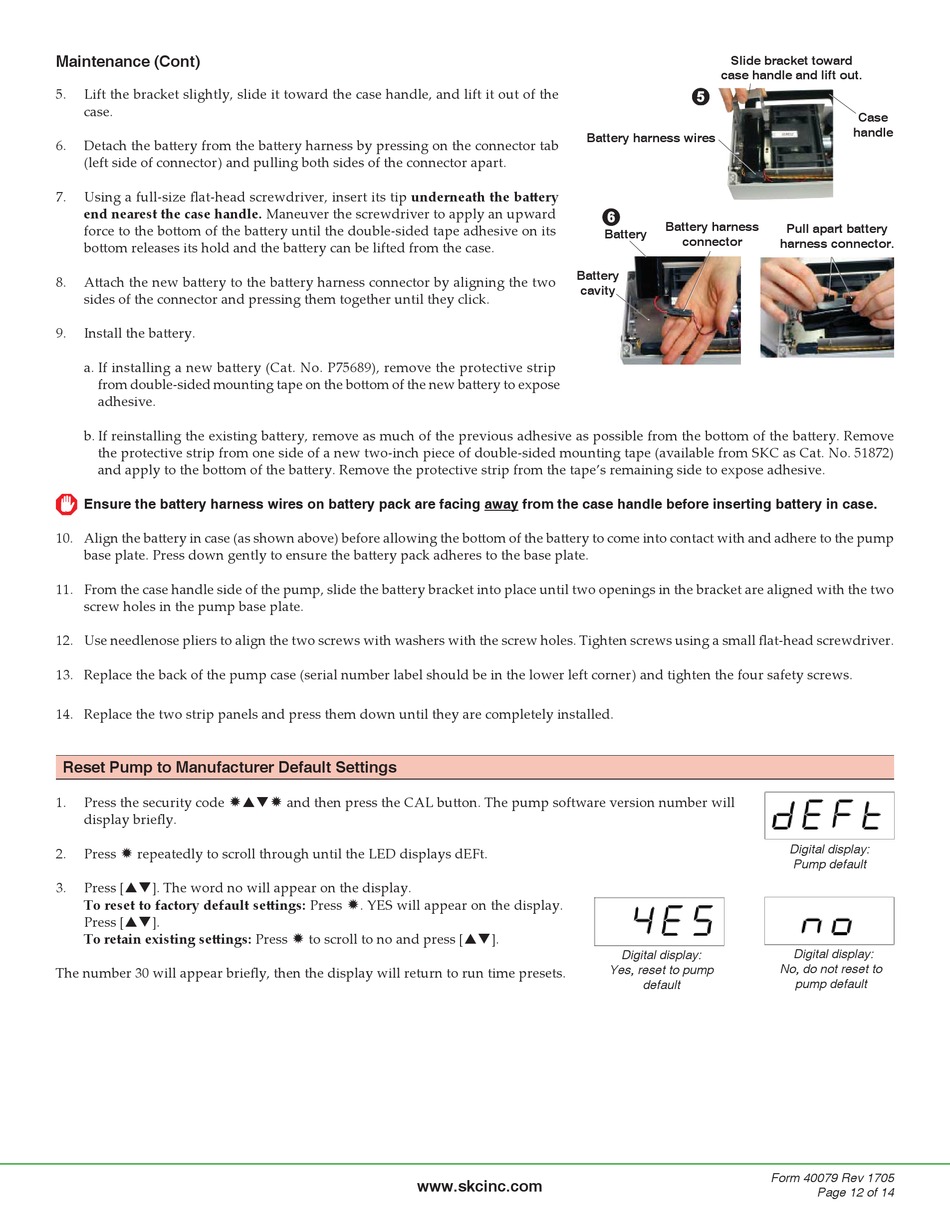

SKC QuickTake 30 Operating Instructions Manual page 12

Maintenance (Cont)
5. Lift the bracket slightly, slide it toward the case handle, and lift it out of the
case.
6. Detach the batt ery from the batt ery harness by pressing on the connector tab
(left side of connector) and pulling both sides of the connector apart.
7. Using a full-size fl at-head screwdriver, insert its tip underneath the batt ery
end nearest the case handle. Maneuver the screwdriver to apply an upward
force to the bott om of the batt ery until the double-sided tape adhesive on its
bott om releases its hold and the batt ery can be lifted from the case.
8. Att ach the new batt ery to the batt ery harness connector by aligning the two
sides of the connector and pressing them together until they click.
9. Install the batt ery.
a. If installing a new batt ery (Cat. No. P75689), remove the protective strip
from double-sided mounting tape on the bott om of the new batt ery to expose
adhesive.
b. If reinstalling the existing batt ery, remove as much of the previous adhesive as possible from the bott om of the batt ery. Remove
the protective strip from one side of a new two-inch piece of double-sided mounting tape (available from SKC as Cat. No. 51872)
and apply to the bott om of the batt ery. Remove the protective strip from the tape's remaining side to expose adhesive.
Ensure the battery harness wires on battery pack are facing away from the case handle before inserting battery in case.
10. Align the batt ery in case (as shown above) before allowing the bott om of the batt ery to come into contact with and adhere to the pump
base plate. Press down gently to ensure the batt ery pack adheres to the base plate.
11. From the case handle side of the pump, slide the batt ery bracket into place until two openings in the bracket are aligned with the two
screw holes in the pump base plate.
12. Use needlenose pliers to align the two screws with washers with the screw holes. Tighten screws using a small fl at-head screwdriver.
13. Replace the back of the pump case (serial number label should be in the lower left corner) and tighten the four safety screws.
14. Replace the two strip panels and press them down until they are completely installed.
Reset Pump to Manufacturer Default Settings

1. Press the security code
display briefl y.

2. Press repeatedly to scroll through until the LED displays dEFt.
3. Press []. The word no will appear on the display.
To reset to factory default sett ings: Press
Press [].
To retain existing sett ings: Press
The number 30 will appear briefl y, then the display will return to run time presets.
 
and then press the CAL butt on. The pump software version number will

. YES will appear on the display.

to scroll to no and press [].
www.skcinc.com
Slide bracket toward
case handle and lift out.
5
Battery harness wires
6
Battery harness
Battery
connector
Battery
cavity
Digital display:
Yes, reset to pump
default
Case
handle
Pull apart battery
harness connector.
Digital display:
Pump default
Digital display:
No, do not reset to
pump default
