3.4 Creating and Setting Up a G-Code

(1) Adding an object

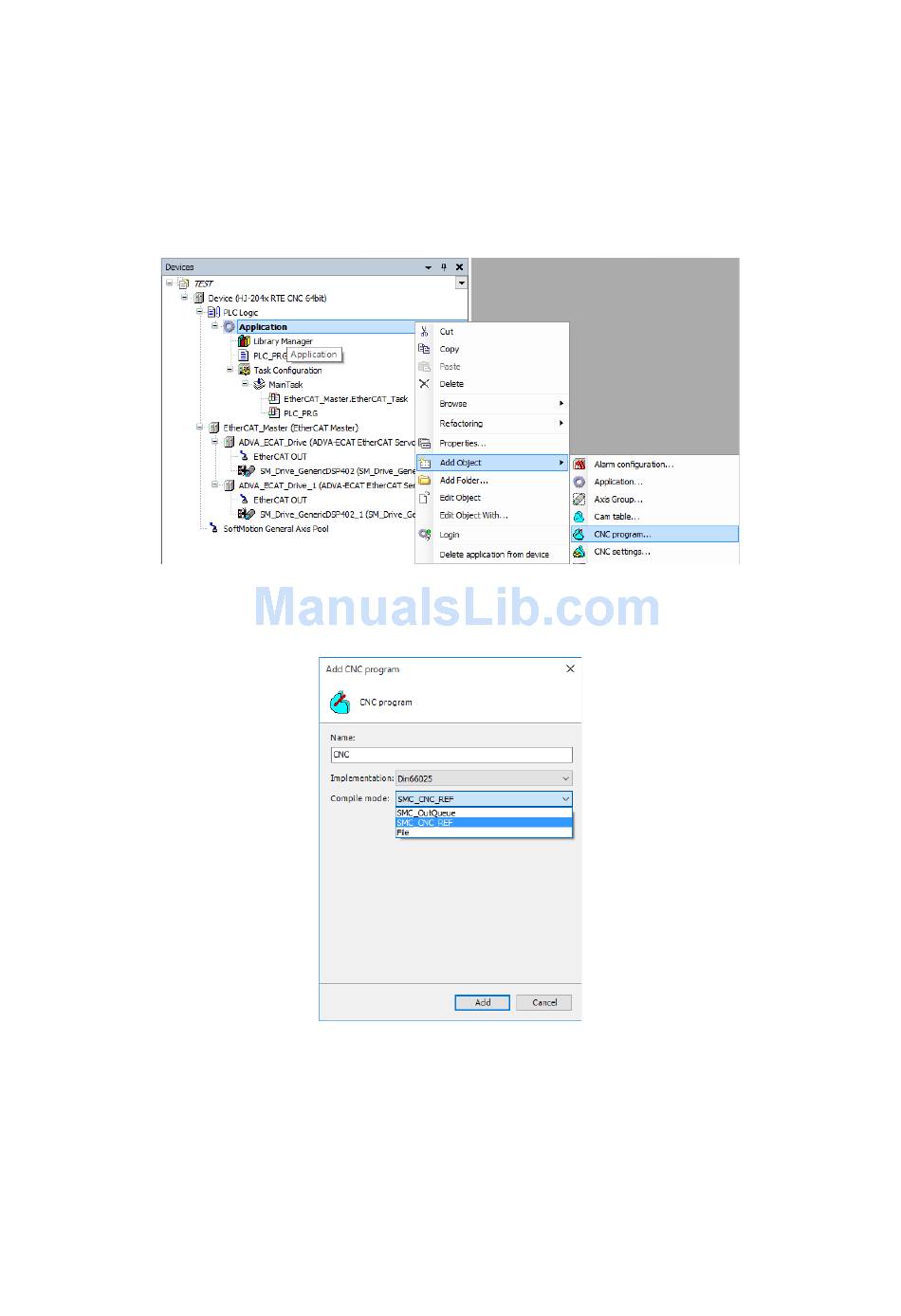

1. In the right-click menu on Application in the Devices window, click Add Object >
CNC program.
(In the following, the project created in "4.2 Configuration for Using Servo
Amplifiers and Servo Motors" is used.)
2. The Add CNC program window is displayed. Select Din66025 for Implementation
and SMC_CNC_REF for Compile mode. Then click Add.
3-19
3. CREATING A PLC PROGRAM
