Step #7
Mount the Wheels
Parts Required:
•
(2) Prepared
wheels/tires
•
(2) Black servo-horn
screws
•
SumoBot chassis

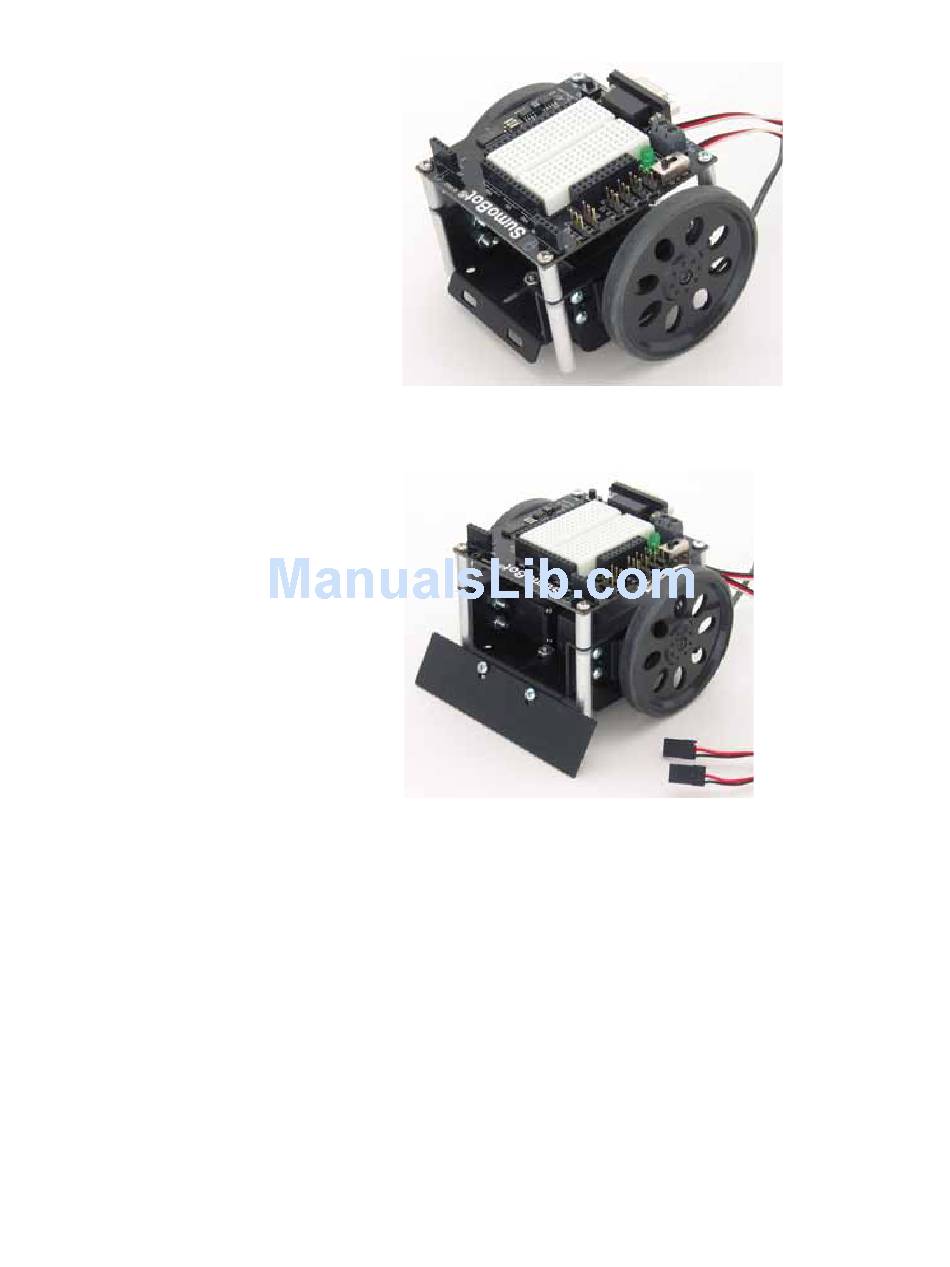

Carefully press each prepared wheel onto the servo splines. Secure each wheel with
the small black Phillips head screw.
Step #8
Mount the Scoop
Parts Required:
•
SumoBot scoop
•
(2) 4/40 1/4" long pan-
head machine screws
•
(2) 4/40 nuts
•
SumoBot chassis
Using two 4/40 1/4" pan-head machine screws and 4/40 nuts, attach the scoop to the
SumoBot chassis. Carefully center the scoop before tightening the screws and nuts.
