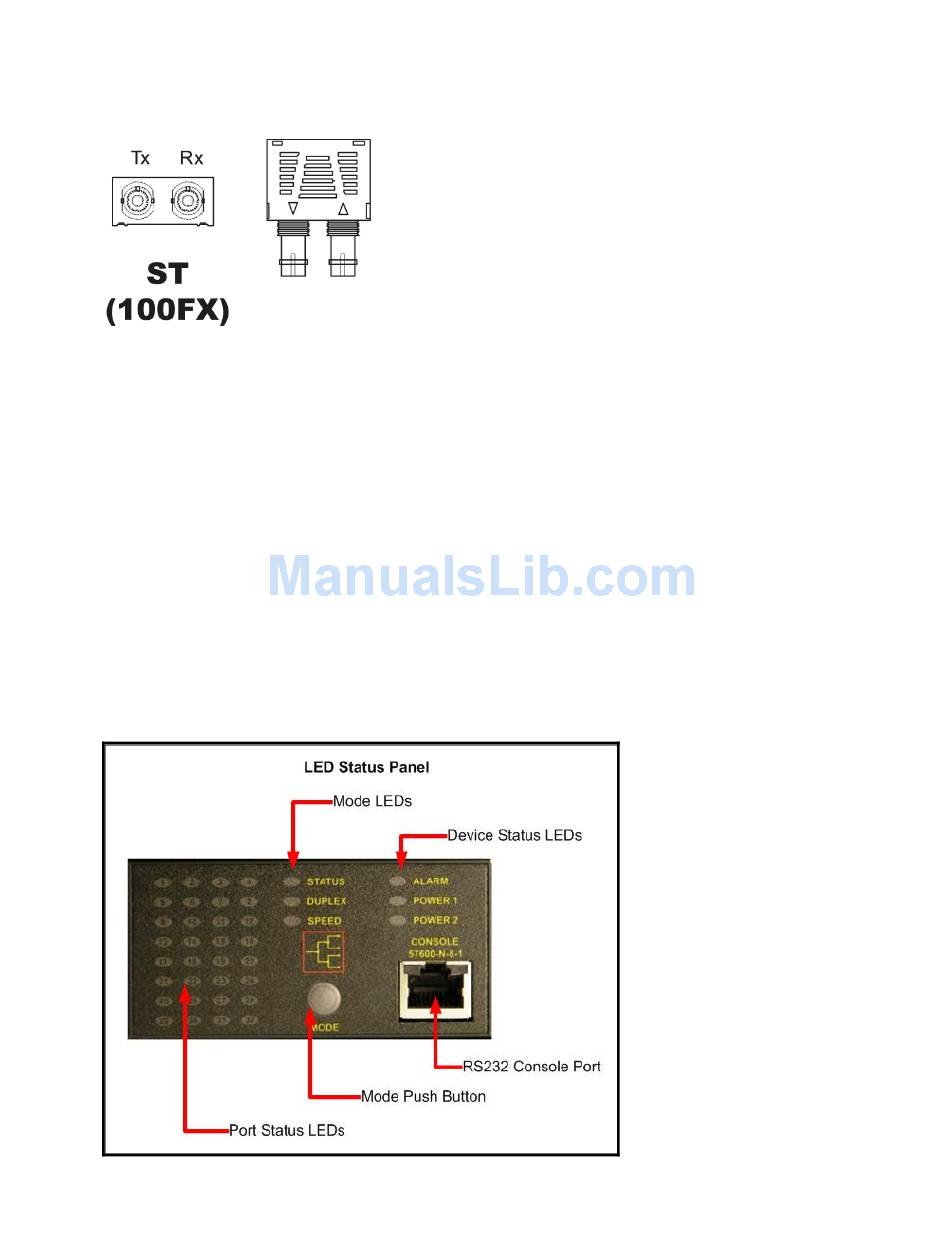

3.5 Display Panel Description

The RSG2000 series products are equipped with a versatile display panel, shown in Figure 9,

which is designed to provide quick status information for each port, as well as the entire device to

allow for simple diagnostics and troubleshooting. It features:

• RS232 console port for 'out of band' console access and configuration

• Power supply and Alarm status indicators

• Convenient port status indicators conveying Link-Activity, Duplex, or Speed via push-

button control.

• System reset via push-button if held for 5 seconds

Rev105
