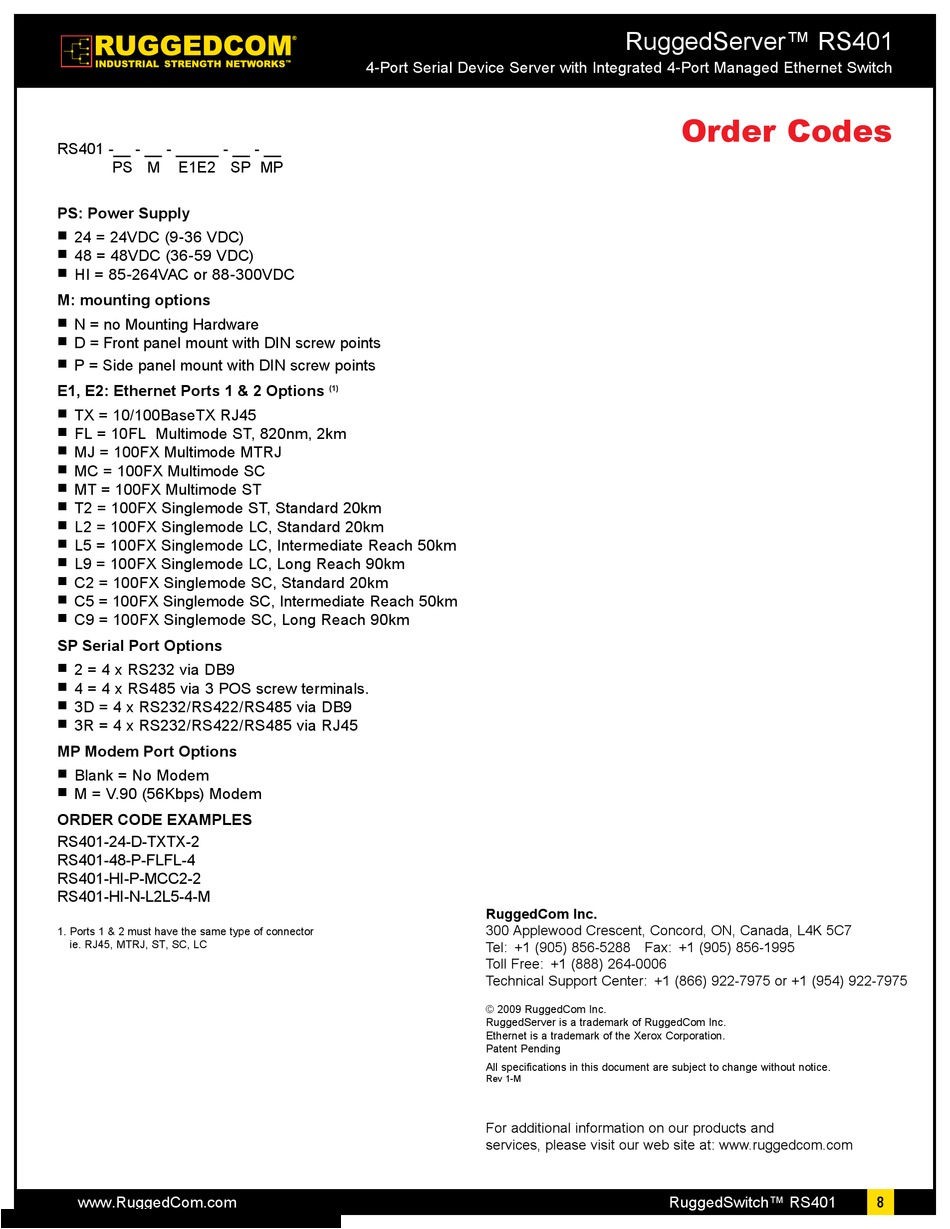

Order Codes - RuggedCom RuggedServer RS401 Specifications

RS401 -__ - __ - _____ - __ - __
PS M E1E2 SP MP
PS: Power Supply
24 = 24VDC (9-36 VDC)
„

48 = 48VDC (36-59 VDC)
„

HI = 85-264VAC or 88-300VDC
„

M: mounting options
N = no Mounting Hardware
„
„  D = Front panel mount with DIN screw points
P = Side panel mount with DIN screw points
„
E1, E2: Ethernet Ports 1 & 2 Options
TX = 10/100BaseTX RJ45
„

FL = 10FL Multimode ST, 820nm, 2km
„

MJ = 100FX Multimode MTRJ
„

MC = 100FX Multimode SC
„

MT = 100FX Multimode ST
„

T2 = 100FX Singlemode ST, Standard 20km
„

L2 = 100FX Singlemode LC, Standard 20km
„

L5 = 100FX Singlemode LC, Intermediate Reach 50km
„

L9 = 100FX Singlemode LC, Long Reach 90km
„

C2 = 100FX Singlemode SC, Standard 20km
„

C5 = 100FX Singlemode SC, Intermediate Reach 50km
„

C9 = 100FX Singlemode SC, Long Reach 90km
„

SP Serial Port Options
2 = 4 x RS232 via DB9
„

4 = 4 x RS485 via 3 POS screw terminals.
„

3D = 4 x RS232/RS422/RS485 via DB9
„

3R = 4 x RS232/RS422/RS485 via RJ45
„

MP Modem Port Options
Blank = No Modem
„

M = V.90 (56Kbps) Modem
„

ORDER CODE EXAMPLES
RS401-24-D-TXTX-2
RS401-48-P-FLFL-4
RS401-HI-P-MCC2-2
RS401-HI-N-L2L5-4-M
1. Ports 1 & 2 must have the same type of connector
ie. RJ45, MTRJ, ST, SC, LC
