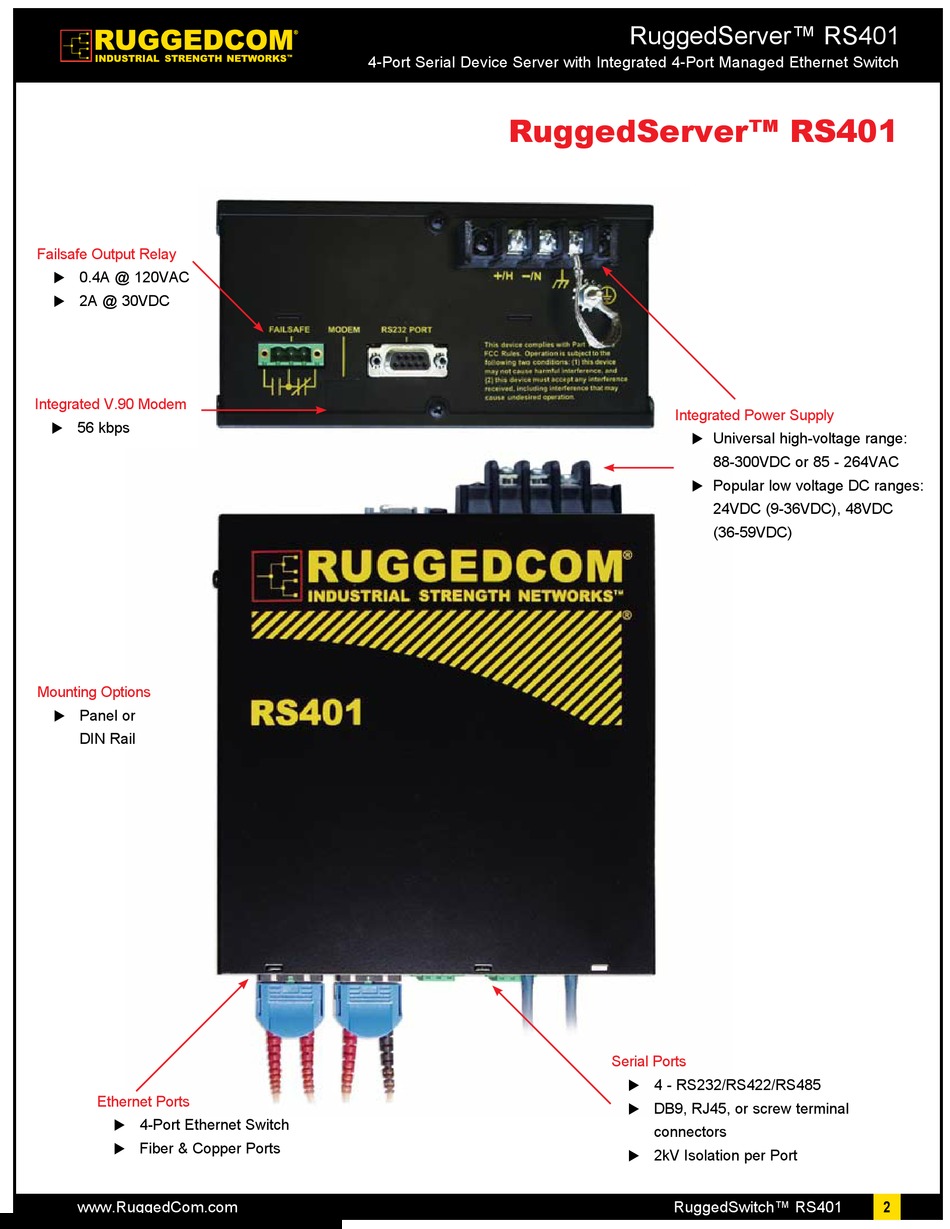

RuggedCom RuggedServer RS401 Specifications page 2
4-port serial device server with integrated 4-port managed ethernet switch
Hide thumbs
Also See for RuggedServer RS401:
- Specification (10 pages) ,
- Installation manual (36 pages)
Table of Contents
Advertisement
Failsafe Output Relay
0.4A @ 120VAC
u
2A @ 30VDC
u
Integrated V.90 Modem
56 kbps
u
Mounting Options
Panel or
u
DIN Rail
Ethernet Ports
4-Port Ethernet Switch
u
Fiber & Copper Ports
u
www.RuggedCom.com
4-Port Serial Device Server with Integrated 4-Port Managed Ethernet Switch
RuggedServer™ RS401
RuggedServer™ RS401
Integrated Power Supply
Universal high-voltage range:
u
88-300VDC or 85 - 264VAC
Popular low voltage DC ranges:
u
24VDC (9-36VDC), 48VDC
(36-59VDC)
Serial Ports
4 - RS232/RS422/RS485
u
DB9, RJ45, or screw terminal
u
connectors
2kV Isolation per Port
u
RuggedSwitch™ RS401
2
