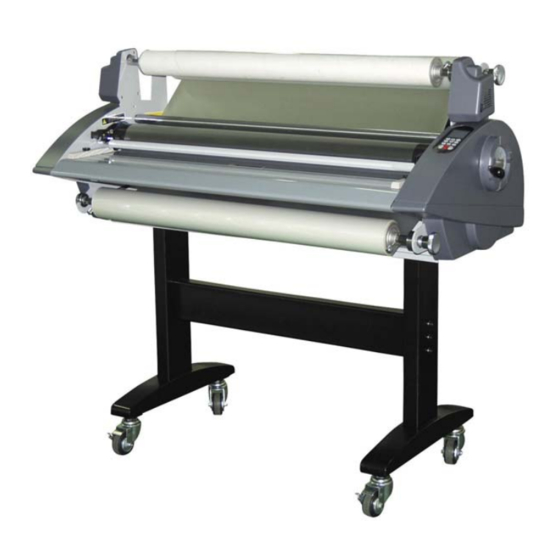

Royal Sovereign RSS-1050 Owner's Manual
  1. Manuals
  2. Brands
  3. Royal Sovereign Manuals
  4. Laminator
  5. RSS-1050
  6. Owner's manual

Royal Sovereign RSS-1050 Owner's Manual

Royal sovereign laminators owner's manual
Hide thumbs Also See for RSS-1050:
Table of Contents

Advertisement

Quick Links

See also: Manual

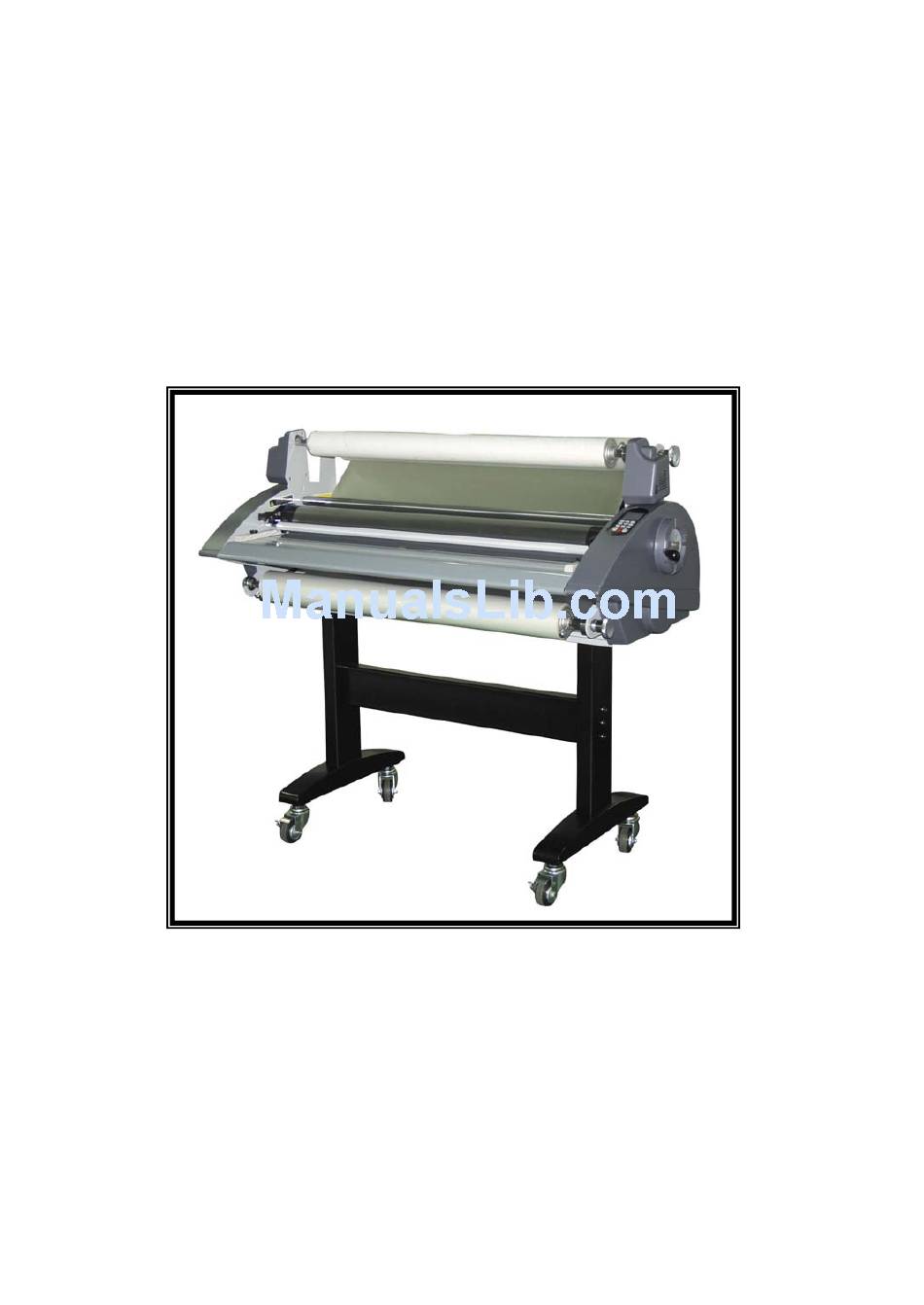

LAMINATORS
Royal Sovereign
OWNER'S MANUAL
RSS-1200,1050 ,685
PLEASE READ AND SAVE INSTRUCTIONS.
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RSS-1050 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Royal Sovereign RSS-1050

Summary of Contents for Royal Sovereign RSS-1050

  • Page 1 LAMINATORS Royal Sovereign OWNER'S MANUAL RSS-1200,1050 ,685 PLEASE READ AND SAVE INSTRUCTIONS. - 1 -...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS TOPICS INTRODUCTION --------------------------------------------------------------------------------- SAFETY PRECAUTIONS CHARACTERISTICS ------------------------------------------------------------------------------ SPECIFICATIONS ---------------------------------------------------------------------------------- NAMES OF MAJOR PARTS OF MACHINE ADJUSTMENT OF FILM TENSION AND LOCATIONS SETTING UP FILM ------------------------------------------------------------------------------- HANGING FILM ----------------------------------------------------------------------------------- 1.HOT FILM ----------------------------------------------------------------------------------------- 2.COLD FILM --------------------------------------------------------------------------------------- CONTROL OF ROLLER PRESSURE INSTRUCTIONS FOR CONTROL PANEL 1.LCD WINDOW ----------------------------------------------------------------------------------- 2.FUNCTIONS OF BUTTONS -----------------------------------------------------------------...

  • Page 3: Introduction

    Thank you for purchasing a Royal Sovereign Roll Laminator. It has been designed and manufactured to provide years of continuous service in the professional environment. To insure high quality lamination, please read this instruction manual thoroughly. This manual will provide you with complete operating and maintenance information.

  • Page 4: Characteristics

    RS Roll Laminator Line are advanced laminators with time transcendental design, utilizing the latest in laminating technology. It is designed for you to set temperature and speed as necessary and have the machine remember your settings. Also, you can laminate anything at high speed, regardless of thickness of material and type of film.

  • Page 5: Names Of Major Parts Of Machine

    NAMES OF MAJOR PARTS OF MACHINE 1. FILM-UPPER 2. FILM-LOWER 3. TAKE-UP (ASS'Y-TAKE-UP) 4. IDLER BAR (UPPER) 5. TABLE-FRONT 6. SHOE-HEATER,UPPER 7. ASS'Y-STAND 8. FOOT SWITCH 9. REMOTE CONTROL SWITCH 10. CONTROL PANEL 11. PRESSURE LEVER 12. TENSION CONTROL KNOB 13.

  • Page 6: Adjustment Of Film Tension And Locations

    ADJUSTMENT OF FILM TENSION AND LOCATIONS Alignment Knob. Locking Nut Film 필 름 Anti-Wrinkle 주 름 방 지 부 device Film 필 름 1. HOW TO CONTROL TENSION Tension of film can be controlled depending on the state of lamination, but basically you can adjust it, to some extent, and make wrinkles straighten from Anti-Wrinkle Part of the heat shoe.

  • Page 7: Setting Up Film

    SETTING UP FILM Picture 1 Picture 2 Picture 3 Picture 4 Picture 5 1. Set the glossy side of upper/lower film to face the heat. ( Glossy side is PET film and matte side is thermal polymer laminating film.) 2. Like picture 1, insert core into the left side of upper/lower film shaft. 3.

  • Page 8: Hanging Film

    1. HOT FILM HEAT SHOE LOWER IDLE BAR SHAFT LOWER FILM Picture 1 LOWER ROLL FILM 1. Insert the bar into the core of roll film then place the bar on the machine. 2. Place the Pressure Lever to the open mode (10~13mm). 3.

  • Page 9: Cold Film

    2. COLD FILM TAKE UP DEVICE PAPER BACK HEAT SHOE 1. Take out the guiding table. 2. Put the shaft of roll film in each hole exactly. 3. Set the pressure lever to the proper lamination mode.(1mm/5mm/10~13mm) 4. Pull the film around the idler bar to the Anti-wrinkle device. 5.

  • Page 10: Control Of Roller Pressure

    CONTROL OF ROLLER PRESSURE ***Methods of controlling pressure of the roller *** 1. For setting, pull the pressure lever out and turn the lever to following the indication. 2. 10~13mm Board : Mode that you can laminate 10~13mm(1/3" to 1/2") 3.

  • Page 11: Instructions For Control Panel

    INSTRUCTIONS FOR CONTROL PANEL You can manipulate speed and temperature with the LCD controller. We designed the LCD panel for user convenience by adopting memory working condition. ***Terms*** LCD DISPLAY BUTTON - 11 -...

  • Page 12: Lcd Window

    1.LCD WINDOW 1. Initial display status. It displays the last working condition when the power is turned on. is displayed when the preset temperature is reached. Blinking Indicates to wait till blinking stops. Current temperature is higher or lower than the preset temperature.

  • Page 13: Functions Of Buttons

    2. FUNCTIONS OF BUTTONS UPPER SPEED LOWER MEMORY ST/BY C/HOT T-CHECK STOP MEANS RESET : Reverse function STOP : Stop working : Run the rollers. : Upper shoe temperature controller UPPER : Lower shoe temperature controller LOWER : Speed controller SPEED : Choose memorized working condition MEMORY...

  • Page 14: How To Use Buttons

    3.HOW TO USE BUTTONS ***Set the upper/ lower heat shoes*** 1. Temperature available range from 0°C (32°F) Button & Display 2. Set temperature of upper shoe. 3. Set temperature of lower shoe. UPPER UPPER LOWER LOWER 5. Buzzer is ringing each time you press the button. ***Speed controls*** 1.
  • Page 15 ***Memorizing Working condition and Using the memorized working condition*** 1) Memorize working condition 1.Operator can memorize 9 working conditions. 2.Each time you press the button, buzzer is ringing. 3.find the condition number you are willing to memorize 4.When you finish setting upper/lower temperature and UPPER SPEED LOWER...

  • Page 16: Cold Mode

    ***Check current temperature on the shoes.*** 1.This function allows you to check the current temperature on the shoes. 2.Press display while display is blinking. 3.It shows current temperature 5 times then returns to temperature which the operator has set. 4.It shows "LO" when the temperature is 40°c (104°F) or below.
  • Page 17 ***STND-BY (Saving Electricity while you are not operating for a while)*** 1. When press 2. When machine is in 3. When the machine runs, you can’t change it to the the machine to the ST/BY ST/BY ***Check the laminating length & How many laminated papers*** 1.

  • Page 18: Laminating Steps

    "OFF" position. 4. Set pressure lever to "Laminating" position. 5. Increase temperature of the hot shoe. If the temperature is memorized for the laminator, please push MEMORY button to choose the correct location. 6. It is ready when the LCD window shows three times.
  • Page 19 ***Useful Information*** 1. It would be easier for you to operate the machine next time if the tempreature and the speed are set at the best condition and memorized by using the sign may appear on LCD window in the case continuous laminating. If it happens, the speed needs to be lowered by one speed level and started again after signal on the LCD window.
  • Page 20 ***Temperature/Speed adjustment guide*** Film Paper Thickness Thickness 100g/㎡ 38 micron 150g/㎡ (1.5 mil) 300g/㎡ 100g/㎡ 80 micron 150g/㎡ (3 mil) 300g/㎡ 100g/㎡ 100micron 150g/㎡ (4 mil) 300g/㎡ 100g/㎡ 125micron 150g/㎡ (5 mil) 300g/㎡ 100g/㎡ 150micron 150g/㎡ (6 mil) 300g/㎡ 100g/㎡ 175micron 150g/㎡...

  • Page 21: Cold Laminating

    2. COLD LAMINATING 1. Put cold roll film on upper bar. (Set the same as method of HOT film for protect paper of lower part) 2. Pull COLD film, and fix it so that backside protecting paper can be wound on the take-u mandrel clockwise.

  • Page 22: Tips For Remote Control And Foot Switch

    TIPS FOR REMOTE CONTROL AND FOOT SWITCH 1. It is convenient to use the remote control in the back of machine while laminating. 2. It is also convenient if you use Foot Switch while laminating HARD BOARD. 3. "RUN", "STOP", "REV" buttons on Remote Control have same functions with the ones on Control Panel.

  • Page 23: Sliters

    2. Slitters **CAUTION.** *When you do not use vertical cutter, please set the both cutter at the bottom of each side. It could cause you to cut your hands while installing roll film. 1.This machines has two vertical cutters (slitters) 2.

  • Page 24: Important Safety Concerns

    IMPORTANT SAFETY CONCERNS 1.Please be cautious that neck tie, necklace, long hair, clothes are kept well away while operation. 2. Prevent children from accessing the machine. Extreme Heat Will Cause Injury 3.Place the machines on the plated place in order to prevent the machine from damage. 4.Make certain that the machine is connecterd to an adequate power source.

  • Page 25: It's Not Out Of Order

    Symptom Rollers do not operate 1. Power cord may not be plugged after press RUN button. 2. Power switch is at OFF mode. 3. Emergency switch may be at ON mode. 4. It may stay at STAND-BY mode. Heat shoe is not 1.

  • Page 26: Warranty

    LIMITED WARRANTY 1. DURATION OF LIMITED WARRANTY One (1) year from the date of "Buyer's" receipt of delivery. 2. INSPECTION and CLAIMS It is the "Buyers" responsibility to inspect all merchandise immediately upon receipt. Any claims must be submitted to the "Seller" in writing, along with adequate examples (samples, photos, etc.) clearly showing the reason for the claim.

  • Page 27: Memo

    MEMO - 27 -...
