- Page 1 Owner's Manual RSC-5500H/6500H GRAPHIC LAMINATION PRODUCTS Please read and retain these instructions. To register your product, please go to www.royalsovereign.com www.royalsovereign.com Royal Sovereign International Inc.
-
Page 2: Introduction
Graphic Lamination Products Model RSC-5500H/6500H IN TRODUCTION Thank you for choosing a Royal Sovereign laminator. It has been designed and manufactured to provide years of continuous service. For complete operating and maintenance information please read this manual thoroughly. Upon receipt of your laminator, please inspect the box, the machine and all other contents for shipping damage. -
Page 3: Table Of Contents
CONTENTS Introduction∙ ∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2 Safety Precautions∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 Installation∙ ∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 5 Included With Laminator∙ ∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 Product Identification∙ ∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙7 Operation∙ ∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 8 Control Panel∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 8 Loading Film∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 9 Th reading Film And Setting Nip Guide∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙10 Pressure Setting∙ ∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 11 Decaling∙... -
Page 4: Safety Precautions
7. Ensure the unit is turned off, cooled, and unplugged from the outlet prior to moving and/or repairing. 8. Keep out of reach of children. 9. Only Royal Sovereign authorized maintenance and service technicians should make repairs. 10. Do not attempt to laminate items that exceed total recommended material thickness for the unit 11. -
Page 5: Installation
Always unlock the casters (“OFF” position) when moving to a different location. ELECTRICAL REQUIREMENTS Royal Sovereign recommends that a licensed electrician ensures proper power installation to your laminator in accordance with electrical codes in your area. The laminator should have a dedicated power line. -
Page 6: Included With Laminator
INCLUDED WITH LAMINATOR Thoroughly inspect the parts and the unit. It is imperative that any missing parts are reported and a claim is filed with the reseller immediately upon receipt of shipment. Part Name Quantity Picture Laminator Owner's Manual Spare Motor Fuse - FUSE(50T) (6.3A) Spare Main Power Fuse - FUSE(65TS) 10A/20A... -
Page 7: Product Identification∙ ∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙7

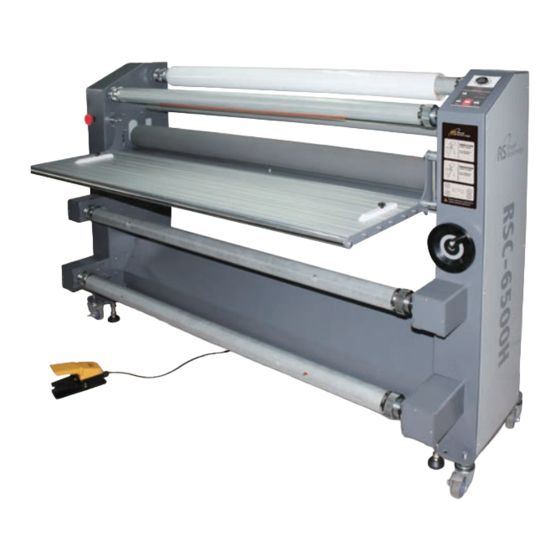

RSC-5500H/6500H PRODUCT IDENTIfICATION Shaf Release Liner Caster (Unlock) Emergency Switch Power Switch Roller Shaft Rear Rewinder Safety Sensor Nip Setting Wheel Table Front Button Speed Sensor Knob Speed Control Caster (Clock) Control Panel Foot Idle Bar Foot Switch Shaft Film... -
Page 8: Operation
OPERATION CONTROL PANEL Indicate the roller pressure value(according to the different material and different size to set a Pressure reasonable pressure value) from 0~9. • See page11. To change the mode from cold to hot or oppositely. Heat Temperature for hot mode on upper rpller is max.122˚F 50˚C. -
Page 9: Loading Film
RSC-5500H/6500H LOADING fILM Royal Sovereign films are wound with the adhesive side facing the inside of the roll (adhesive in). Loading film to upper film shafts: 1. Loosen the stop ring and take down the film shaft, then Figure 1 load the film and center it on the shaft. -
Page 10: Th Reading Film And Setting Nip Guide∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙10
THREADING fILM AND SETTING NIP GUIDE... -
Page 11: Pressure Setting
RSC-5500H/6500H PRESSURE SETTING Thin images The best pressure setting for thin films and images is about 8. During processing the pressure can be adjusted and might be varied. Caution: Thin material requires less pressure. Set the pressure proportional to the rigidity of the material between 4 and 8 to avoid permanent compression marks. -
Page 12: Decaling
DECALING · Please Adjust the wheel to Change the roller pressure with different Material for the best Laminating quality. 1. Pluged in and turn the power switch on (“I” position). The Power switch is located on the rear right side of the unit and press the “power”... -
Page 13: Maintenance
RSC-5500H/6500H MAINTENANCE Cleaning the Body of the laminator 1. To clean the machine body, dampen a cloth with water only and gently wipe the machine clean. Removing Adhesive Build Up 1. Remove the film from the laminator. 2. Use a damp (water only) cloth and a rubber gum eraser to remove the adhesive on the Teflon (metal) and silicone rollers. -
Page 14: Specifications
SPECIfICATIONS Description RSC-5500H RSC-6500H Power Supply AC100V,120V,220~240V,50/60Hz AC100V,120V,220~240V,50/60Hz Power Consumption 1450W 1450W Maximum Laminating width 55"(1400mm) 65"(1650mm) Maximum Material diameter(Film) Ø381mm Ø381mm Maximum Material diameter(Feeder) Ø381mm Ø381mm Maximum Material diameter(Rewinder) Ø381mm Ø381mm Maximum Laminating speed 8.5m/min 8.5m/min Ready Time <20min <40min... -
Page 15: Warranty
WARRANTy Royal Sovereign International warrants the equipment sold is free from defects in material and workmanship for a period of One (1) year for Parts and Labor from the date of installation, excluding lamination rollers which are warranted for Six (6) months.
