15. WARRANTY
Royal Sovereign International warrants the equipment sold is free from defects in
material and workmanship for a period of One (1) year for Parts and Labor from the date
of installation, excluding lamination rollers which are warranted for Six (6) months. This
warranty is extended only to the original purchaser. This warranty is the only warranty
made by Royal Sovereign International and cannot be modified or amended. Royal
Sovereign's sole and exclusive liability and the customer's sole and exclusive remedy
under this warranty shall be, at Royal Sovereign's option, to repair or replace any such
defective part or product. These remedies are only available if Royal Sovereign's
examination of the product discloses to Royal Sovereign's satisfaction that such defects
actually exist and were not caused by misuse, neglect, attempt to repair, unauthorized
alternation or modification, incorrect line voltage, fire, accident, flood or other hazard.
All warranty claims must be filed through the authorized Royal Sovereign dealer or
reseller through which the equipment was originally purchased. Model, serial number
and date of delivery are required for all claims.
The warranty made herein is in lieu of all other warranties, expressed or implied,
including any warranty or merchantability or fitness for a particular purpose. Royal
Sovereign will not be liable for personal damage or personal injury (unless primarily
caused by its negligence), loss of profit, or other incidental or consequential damages
arising out of the use or inability to use this equipment.
LIMITED WARRANTY
This warranty specifically does not cover damage to laminating rollers caused by knives,
razor blades, or any sharp objects or abrasives, or failure caused by adhesives, or
damage caused by lifting, tilting or improper use of the machine. Warranty repair or
replacement by Royal Sovereign or its authorized Reseller(s) does not extend the
warranty beyond the initial one year period from the date of installation. Unauthorized
customer alterations will void this warranty.
CORPORATE HEADQUARTERS
Royal Sovereign International Inc.
2 Volvo Drive, Rockleigh, NJ 07647 U.S.A.
TEL : +1 ) 800-397-1025
E-mail : info@royalsovereign.com
RS Holland B.V.
Planetenweg 75 2132HM Hoofddorp, The Netherlands.
TEL : +31) 23-5626620, +31) 23-5654451
FAX : +31) 23-5654565
E-mail : purchaseorder@royalsovereign.com
RS Canada Inc.
164 Oakdale Road, Toronto, Ontario M3N 2S5
CANADA
TEL : +1
416-741-8400
FAX : +1
416-741-8185
)
)
E-mail : info@royalsovereign.com
FAX : +1 ) 201-750-1022
Royal Sovereign Inc.
<Oversea Sales Office>
1001, World Meridian II, 426-5, Gasan-dong,
Geumcheon-gu, Seoul, 153-759, KOREA
TEL : +82)2-2025-8800
FAX : +82)2-2025-8830
E-mail : sales@royalsovereign.com
RS International Australia PTY. LTD.
30 Prime Drive, Seven Hills, NSW 2147, Australia
TEL : +61) 2-9674-2127
FAX : +61) 2-9674-2027
E-mail : salesaust@royalsovereign.com
19
OWNER'S MANUAL

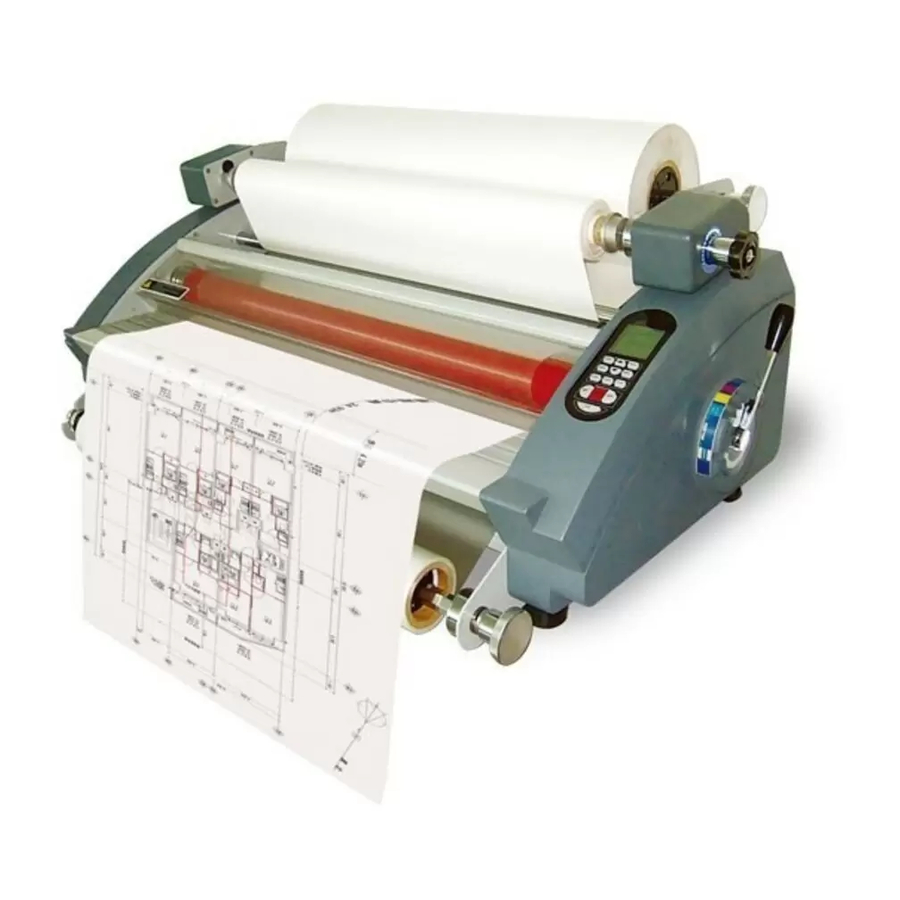

RSL-2702 Laminator
Read all instructions carefully before use.
For any Customer Support needs please choose the
Customer Support tab
on www.royalsovereign.com
Royal Sovereign International Inc.
www.royalsovereign.com

Advertisement

Table of Contents
loading

Summary of Contents for Royal Sovereign RSL-2702

  • Page 1 Royal Sovereign International and cannot be modified or amended. Royal Sovereign’s sole and exclusive liability and the customer’s sole and exclusive remedy under this warranty shall be, at Royal Sovereign’s option, to repair or replace any such defective part or product. These remedies are only available if Royal Sovereign’s examination of the product discloses to Royal Sovereign’s satisfaction that such defects...
  • Page 2: Table Of Contents

    14. Specifications ... 18 15. Warranty... 19 PAGE Thank you for choosing a Royal Sovereign laminator. It has been designed and manufactured to provide years of continuous service. For complete operating and maintenance information please read this manual thoroughly. Upon receipt of your laminator, please inspect the box, the machine and all other contents for shipping damage.
  • Page 3: Included With Laminator

    4. Center film as shown in picture 3 and 4. KNOB-TENSION 5. LOADING FILM Picture 1 Picture 2 Picture 3 Picture 4 film shaft with set-screws. ( Glossy side is PET film and matte side is thermal polymer laminating adhesive) RSL-2702...
  • Page 4: Threading Film

    19. Peel Trim any excess film off of the leader board edges. The leader board can be reused. 20. Set the roller nip setting to the appropriate position for the lamination or encapsulation application. Picture 2 RSL-2702 Picture 3 Picture 4 Picture 5 Picture 6...
  • Page 5: Cold Film

    (Royal Print-Pro Film) and lower shaft with pressure sensitive mounting adhesive films or backing paper (Royal Sovereign White-Mount or Clear-Mount). 2. Pull the upper laminate under the upper idle bar and separate the release liner from the laminate.
  • Page 6: Control Of Roller Pressure

    8. REV: To reverse the rollers. Must press and hold the button to activate. 9. STOP: To stop the rollers from turning. 10. RUN: To start the rollers . 11. FAN: To activate the cooling fans. RSL-2702...
  • Page 7: Laminating Steps

    @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ g Laminating Speed at each level(mm/min) SPEED HOT / COLD MODE 1100 1500 1800 2100 2500 RSL-2702 @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ g...
  • Page 8: Cold Laminating

    2. Grasp film with one hand, press the cutter downward into the application and slide it first to one end of the application, then to the other end to complete the cut. (Figure 2 & 3) Figure 2 Figure 3 RSL-2702...
  • Page 9: Maintenance

    Downward curl. The main roller temperatures are too low and/or lamination Unclear lamination: speed is too fast. RSL-2702 Possible Solution a. Put the power switch to the "I" (On) position b. Reset the circuit breaker. c. Replace the fuse.
  • Page 10: Recommended Temperature And Speed Settings

    NOTE: Speed and temperature should be adjusted in accordance with film manufacturer's recommendations. User Remark Temp Speed Max. Temperature contro l 14. SPECIFICATIONS Description RSL-2702 Power supply AC 100, 200, 220~240V 50/60Hz 120V 60Hz Power consumption 1500W Max. laminating width 685mm / 27" Film thickness 25~250 mic / 1~10mil Max.
