UM0488

User manual

STM3210E-EVAL

evaluation board

Introduction
The STM3210E-EVAL evaluation board is designed as a complete development platform for
STMicroelectronic's ARM Cortex-M3 core-based STM32F103Z microcontroller with full
2
2
speed USB2.0, CAN2.0A/B compliant interface, two I
S channels, two I
C channels, five
USART channels with smartcard support, three SPI channels, two DAC channels, FSMC
interface, SDIO, internal 64 KB SRAM and 512 KB Flash, JTAG and SWD debug support.
The full range of hardware features on the board helps you to evaluate all peripherals (USB,
motor control, CAN, MicroSD card, smartcard, USART, NOR Flash, NAND flash, SRAM)
and develop your own applications. Extension headers make it possible to easily connect a
daughter board or wrapping board for your specific application.

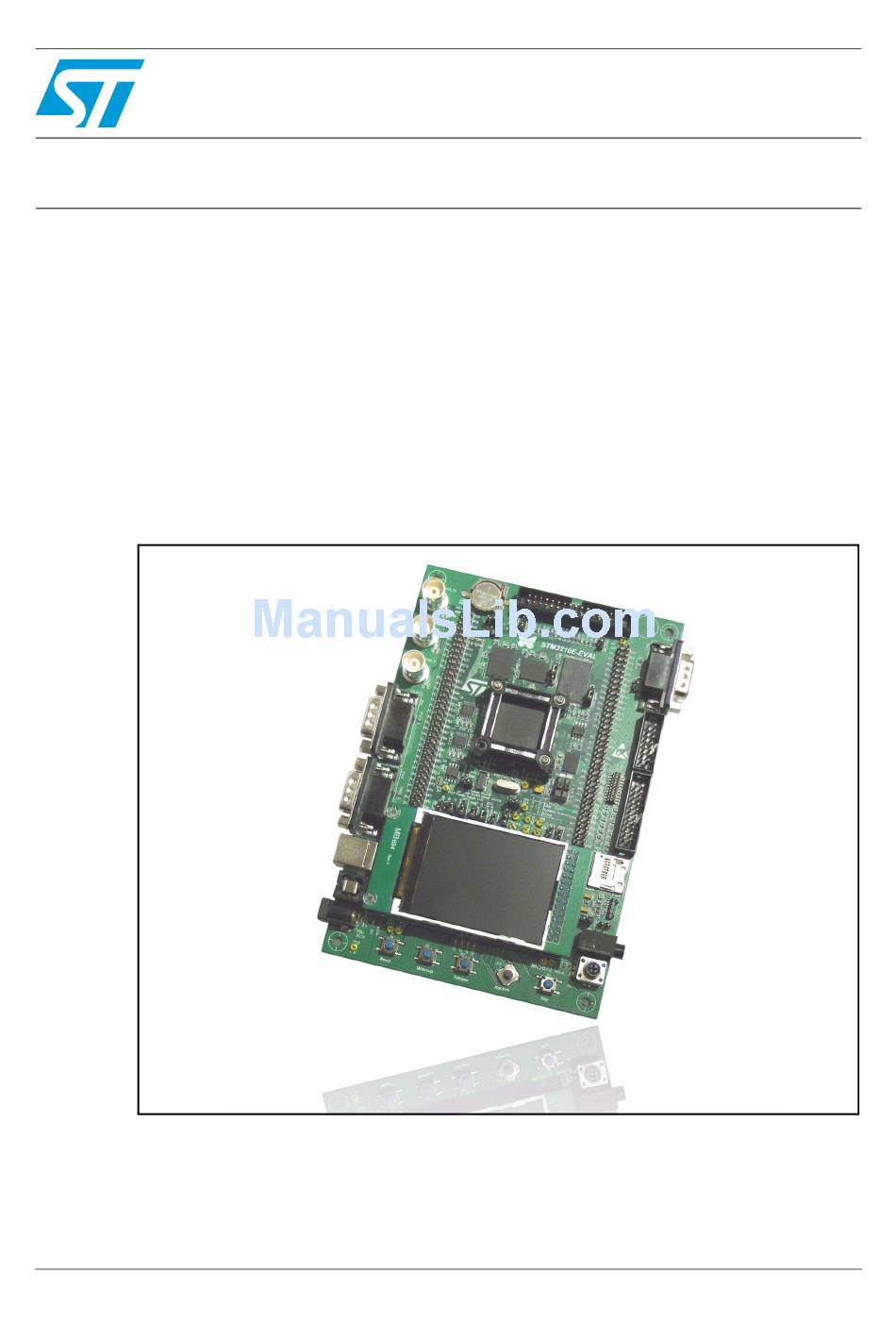

Figure 1.
STM3210E-EVAL evaluation board
Order code
To order the STM32F103Z evaluation board, use the order code STM3210E-EVAL.
November 2008
Rev 3
1/48
www.st.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STM3210E-EVAL and is the answer not in the manual?

Questions and answers

Related Manuals for ST STM3210E-EVAL

Summary of Contents for ST STM3210E-EVAL

  • Page 1: User Manual

    User manual STM3210E-EVAL evaluation board Introduction The STM3210E-EVAL evaluation board is designed as a complete development platform for STMicroelectronic's ARM Cortex-M3 core-based STM32F103Z microcontroller with full speed USB2.0, CAN2.0A/B compliant interface, two I S channels, two I C channels, five USART channels with smartcard support, three SPI channels, two DAC channels, FSMC interface, SDIO, internal 64 KB SRAM and 512 KB Flash, JTAG and SWD debug support.

  • Page 2: Table Of Contents

    Contents UM0488 Contents Overview ..........3 Features .
  • Page 3 Schematic diagrams ........28 Appendix A STM3210E-EVAL IO assignment......41 Revision history .

  • Page 4: Overview

    RTC with backup battery Demonstration software To use the STM3210E-EVAL evaluation board, you must have the demonstration software version 1.1 or later. If the version installed on your evaluation board is earlier than version 1.1, you must download the latest version from www.st.com.

  • Page 5: Hardware Layout And Configuration

    UM0488 Hardware layout and configuration Hardware layout and configuration The STM3210E-EVAL evaluation board is designed around the STM32F103Z microcontroller in a 144-pin TQFP package. The hardware block diagram Figure 2 illustrates the connection between the STM32F103Z and peripherals (LCD, SPI Flash, USART, IrDA,...
  • Page 6 Hardware layout and configuration UM0488 Figure 3. STM3210E-EVAL evaluation board layout CN10 CN11 STM32F103Z Extension connector Extension connector Motor control CN2,3,5 connector CN14 Trace USART2 JTAG Color LCD CN13 MicroSD card CN12 USART1 CN15 Audio jack IrDA CN17 5V power...

  • Page 7: Power Supply

    Hardware layout and configuration Power supply The STM3210E-EVAL evaluation board is designed to be powered by 5V DC power supply and to be protected by PolyZen U15 in the event of wrong power plug-in. It is possible to configure the evaluation board to use any of following three sources for the power supply: 5V DC power adapter connected to CN17, the power jack on the board (PSU on silk screen for power supply unit).

  • Page 8: Boot Option

    X1, 8MHz crystal with socket for STM32F103Z microcontroller, it can be removed from socket when internal RC clock is used. Reset source The reset signal of the STM3210E-EVAL evaluation board is low active and the reset sources include: Reset button B1...

  • Page 9: Audio

    UM0488 Hardware layout and configuration Audio The STM3210E-EVAL evaluation board supports stereo audio play because it provides an audio DAC AK4343 connected to both I S port and two channels of DAC of microcontroller STM32F103Z. Either external slave mode or PLL slave mode (reference clock BICK or LRCK) of audio DAC can be used by setting the jumper JP18.

  • Page 10: Rs232 Connectors

    Motor control The STM3210E-EVAL evaluation board supports three-phase brushless motor control via a 34-pin connector CN1, which provides all required control and feedback signals to and from the motor power driving board. Available signals on this connector include emergency stop,...

  • Page 11: Smartcard

    Hardware layout and configuration 2.10 Smartcard STMicroelectronics smartcard interface chip ST8024 is used on the STM3210E-EVAL board for asynchronous 3V and 5V smartcards. It performs all supply protection and control functions based on the connections with STM32F103Z listed in Table The Smartcard_CMDVCC and Smartcard_OFF are multiplexed with motor control.

  • Page 12: Temperature Sensor

    3 of the MicroSD card when JP22 is open. Default setting: not fitted 2.15 STM3210E-EVAL evaluation board support USB2.0 compliant full speed communication via a USB type B connector (CN14). The evaluation board can be powered by this USB connection at 5V DC with 500mA current limitation.

  • Page 13: Development And Debug Support

    B2 which shares the same IO with USART2 and motor control connector. The STM3210E-EVAL evaluation board also supports a second optional 122x32 graphic LCD that can be mounted on the U18 connector. By default, the graphic LCD is not present.

  • Page 14: Sram

    Hardware layout and configuration UM0488 Table 12. LCD modules (continued) TFT LCD CN16 (default) Graphic LCD U18 (optional) Pin on Pin on Description Pin connection Description Pin connection CN16 PD15 FSMC_D13 PD16 FSMC_D14 PD17 FSMC_D15 BL_GND BL_control 3.3V 3.3V 3.3V BL_VDD 3.3V PA6 via JP26...

  • Page 15: Nor Flash

    UM0488 Hardware layout and configuration 2.20 NOR Flash 128 Mbit NOR Flash is connected to bank1 NOR/PSRAM2 of the FSMC interface. The 16- bit operation mode is selected by a pull-up resistor connected to the BYTE pin of the NOR Flash.

  • Page 16: Connectors

    Connectors UM0488 Connectors Motor control connector CN1 Figure 4. Motor control connector CN1 (top view) 33 31 29 27 25 23 21 19 17 15 13 11 9 7 5 34 32 30 28 26 24 22 20 18 16 14 12 10 8 6 Table 16.

  • Page 17: Analog Input Connectors Cn2, Cn3 And Cn5

    1,4,8,9 CANH CANL 3,5,6 QST connector CN6 The QST connector is designed to connect the STM3210E-EVAL to the QST evaluation board to demonstrate the QST function. Figure 7. QST connector CN6 (front view) 13 11 9 7 5 3 1...

  • Page 18: Trace Debugging Connector Cn7

    Connectors UM0488 Table 19. QST connector CN6 Pin number Description Pin number Description PF11 Trace debugging connector CN7 Figure 8. Trace debugging connector CN7 (top view) 19 17 15 13 11 9 7 5 20 18 16 14 12 10 8 6 Table 20.

  • Page 19: Rs232 Connector Cn8 With Rts/Cts Handshake Support

    UM0488 Connectors RS232 connector CN8 with RTS/CTS handshake support Figure 9. RS232 connector CN8 with RTS/CTS handshake support (front view) Table 21. RS232 connector CN8 with RTS/CTS handshake support Pin number Description Pin number Description Connect to Pin 4 USART2_PA3 USART2_PA1 USART2_PA2 USART2_PA0...

  • Page 20: Daughter Board Extension Connectors Cn10 And Cn11

    Two 70-pin male headers CN10 and CN11 can be used to connect a daughter board or standard wrapping board to the STM3210E-EVAL evaluation board. All total 112 GPI/Os are available on it. The space between these two connectors and the position of power, GND...
  • Page 21 Daughter board extension connector CN10 (continued) How to disconnect from function block on Pin # Description Alternative function STM3210E-EVAL board Disconnect STM3210E-EVAL evaluation board from motor power drive board. Debug_TRST/MC Keep JP19 on open. Disconnect STM3210E-EVAL evaluation board from I2C_SCL/QST QST board.
  • Page 22 FSMC_EBAR1 Remove R21. PG11 PG13 Joystick_Right Remove R103. PG15 Joystick_Up Remove R104. Debug_TDO Disconnect STM3210E-EVAL evaluation board from motor power drive board and QST board. MC/QST/Temperature sensor Remove R46. Disconnect STM3210E-EVAL evaluation board from I2C_SDA/QST QST board. CAN_TX Trace_D0/FSMC_A19 Trace_D2/FSMC_A21...
  • Page 23 FSMC_D1 FSMC_D6 FSMC_D4 FSMC_A11 PF14 FSMC_A8 PF12 FSMC_A6 BOOT1/SPI_NSS Disconnect STM3210E-EVAL evaluation board from MC/QST motor power drive board and QST board. Disconnect STM3210E-EVAL evaluation board from Smartcard_3/5V/MC motor power drive board. Potentiometer Remove R126. Disconnect STM3210E-EVAL evaluation board from motor power drive board and QST board.
  • Page 24 Daughter board extension connector CN11 (continued) How to disconnect from function block on Pin # Description Alternative function STM3210E-EVAL board Disconnect STM3210E-EVAL evaluation board from MC/USART2_RTS motor power drive board. Disconnect STM3210E-EVAL evaluation board from motor power drive board. MC/BNC3 Disconnect analog signal from BNC3.
  • Page 25 How to disconnect from function block on Pin # Description Alternative function STM3210E-EVAL board Disconnect STM3210E-EVAL evaluation board from motor power drive board. Disconnect STM3210E-EVAL evaluation board from MC/SPI_MOSI/QST motor power drive board and QST board. Disconnect STM3210E-EVAL evaluation board from QST board.

  • Page 26: Rs232 Connector Cn12

    Connectors UM0488 RS232 connector CN12 Figure 11. RS232 connector CN12 (front view) Table 25. RS232 connector CN12 Pin number Description Pin number Description Connect to Pin 4 USART1_PA10 Connect to Pin 8 USART1_PA9 Connect to Pin 7 Connect to Pin 6 3.10 MicroSD connector CN13 Figure 12.

  • Page 27: Usb Type B Connector Cn14

    13 for details. 3.14 Power connector CN17 Your STM3210E-EVAL evaluation board can be powered from a DC 5V power supply via the external power supply jack (CN17) shown in Figure 14. The central pin of CN17 must be positive.

  • Page 28: Smartcard Connector Cn18

    Connectors UM0488 3.15 Smartcard connector CN18 Figure 15. Smartcard connector CN18 (front view) 17 18 5 6 7 8 Table 28. Smartcard connector CN18 Pin number Description Pin number Description Detection pin of card presence Detection pin of card presence 28/48...

  • Page 29: Schematic Diagrams

    UM0488 Schematic diagrams Schematic diagrams This section provides the design schematics for the STM3210E-EVAL board key features, to help you implement these features in your applications. Schematics are provided for: Microcontroller connections, see Figure 16 MCU, see Figure 17 Peripherals, see...
  • Page 30 Schematic diagrams UM0488 Figure 16. Microcontroller connections 30/48...
  • Page 31 UM0488 Schematic diagrams Figure 17. MCU 31/48...
  • Page 32 Schematic diagrams UM0488 Figure 18. Peripherals 32/48...
  • Page 33 UM0488 Schematic diagrams Figure 19. RS232 and IrDA connectors 33/48...
  • Page 34 Schematic diagrams UM0488 Figure 20. Audio 34/48...
  • Page 35 UM0488 Schematic diagrams Figure 21. LCD and joystick connections 35/48...
  • Page 36 Schematic diagrams UM0488 Figure 22. SD card and smartcard 36/48...
  • Page 37 UM0488 Schematic diagrams Figure 23. Motor control 37/48...
  • Page 38 Schematic diagrams UM0488 Figure 24. JTAG and trace connectors 38/48...
  • Page 39 UM0488 Schematic diagrams Figure 25. Power supply 39/48...
  • Page 40 Schematic diagrams UM0488 Figure 26. SRAM and Flash 40/48...
  • Page 41 UM0488 Schematic diagrams Figure 27. Color LCD module 41/48...

  • Page 42: Appendix A Stm3210E-Eval Io Assignment

    STM3210E-EVAL IO assignment UM0488 Appendix A STM3210E-EVAL IO assignment Table 29. STM3210E-EVAL IO assignment Pin # Pin name STM3210E-EVAL IO assignment Trace_CLK/FSMCA23 Trace_D0/FSMCA19 Trace_D1/FSMCA20 Trace_D2/FSMCA21 Trace_D3/FSMCA22 VBAT +3V3 or battery PC13-ANTI_TAMP Anti-tamper button PC14-OSC32_IN 32K OSC PC15-OSC32_OUT 32K OSC FSMCA0...
  • Page 43 UM0488 STM3210E-EVAL IO assignment Table 29. STM3210E-EVAL IO assignment (continued) Pin # Pin name STM3210E-EVAL IO assignment VDDA +3V3 PA0-WKUP MC_TIM2_CH1 pin 31(Ena) / WAKEUP /USART2 CTS MC_TIM2_CH2 pin 33 (EnB)/USART2 RTS MC_TIM2_CH3 pin34 (EnIndex)/USART2 TX MC_TIM6_CH4 pin 23 (dissipative brake)/USART2 RX...
  • Page 44 STM3210E-EVAL IO assignment UM0488 Table 29. STM3210E-EVAL IO assignment (continued) Pin # Pin name STM3210E-EVAL IO assignment PE14 FSMCD11 PE15 FSMCD12 PB10 Smart_IO PB11 Smart Reset VSS_1 VDD_1 +3V3 PB12 Smart_CK / MC_pin21 (NTC) / Audio I2S_CMD PB13 Audio I2S_CK...
  • Page 45 UM0488 STM3210E-EVAL IO assignment Table 29. STM3210E-EVAL IO assignment (continued) Pin # Pin name STM3210E-EVAL IO assignment PA10 USART1 RX PA11 USB DM PA12 USB DP PA13 Debug TMS VSS_2 VDD_2 +3V3 PA14 Debug TCK PA15 Debug TDI PC10 IRDA TX / MicroSD card D2...
  • Page 46 STM3210E-EVAL IO assignment UM0488 Table 29. STM3210E-EVAL IO assignment (continued) Pin # Pin name STM3210E-EVAL IO assignment Audio I2C_SCL & Temperature SCL / QST pin3 Audio_I2C_SDA & Temperature SDA / QST pin5 BOOT0 BOOT0 CAN RX CAN TX FSMCBLN0 FSMCBLN1...

  • Page 47: Revision History

    UM0488 Revision history Revision history Table 30. Document revision history Date Revision Changes 5-May-2008 Initial release. Added information on NOR Flash references in Section 2.20. 2-Jun-2008 Updated schematics in Section Modified cover page. Inserted a newChapter 20-Nov-2008 Modified bank specified in Section 2.17, Section...
  • Page 48 No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein.
