On - Off - emitor SATLOOK Micro plus Owner's Manual

4. External power supply 220V/13.5V
5. 2 x Adaptor F-female/F-female
6. Owner's Manual
7. Program CD
8. Serial cable

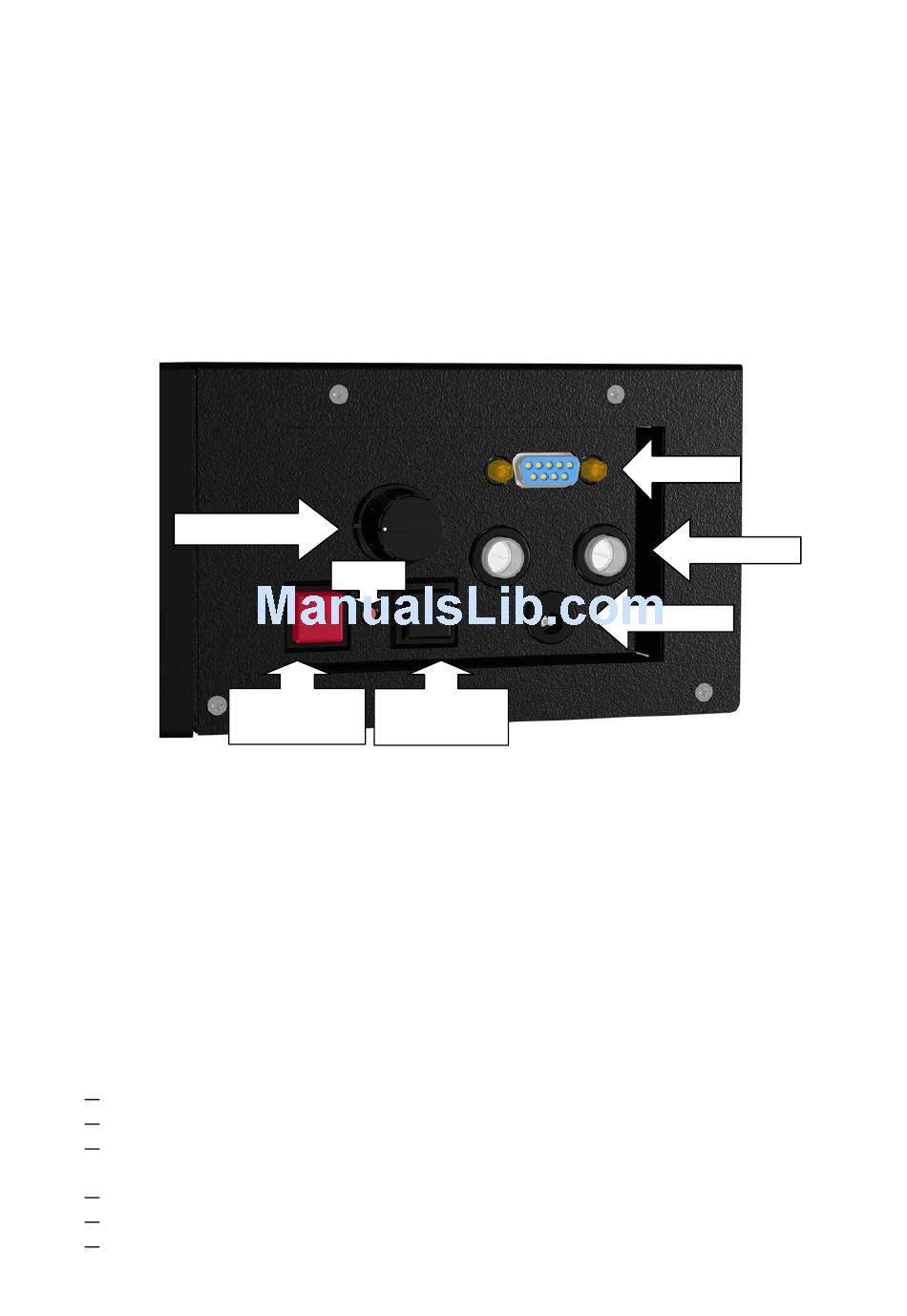

The instruments connections for coaxial- and power-cables are illustrated in the picture below.
The big control knob has functions as e.g. tuning and moving in the meny-system.
The two control buttons are used to turn on/off the instrument and to navigate in the menu-
system.
Control knob
2.2 On – Off
Turn the instrument on by pressing down the left (red) control button for about a second and
then drop the button.
Turn the instrument off by pressing down the left (red) control button more than 3 seconds and
then drop the button.
In general the installation of a satellite dish with the SATLOOK Micro + is done like this:
1. Find a satellite in the Signalmeter mode (and maximize).
2. Identify the satellite with the SAT-ID or NIT functions.
3. Verify the quality of the signal in Digital mode.
Alternatively
1. Use the Matching function to find the satellite that you are looking for.
2. Enter the Signalmeter mode to make an exact adjustment.
3. Verify the quality of the signal in Digital mode.
Reset
Left
controlbutton controlbutton
Right
RS 232
2 x F-input
DC-charger
4(12)
