- Page 1 Satlook Lite USER MANUAL...
-
Page 2: Table Of Contents
Contents Satlook Lite - Description . page 3 Getting Started page 4 Power On/Off Power Supply and Battery How to use the meter Menu . page 6 EasyFind Search Spectrum Beeper On / Off Favourites LNB Setup Menu Setup Appendix A – Using LiteEdit to Edit Satellites page 10 Appendix B –... -
Page 3: Satlook Lite - Description

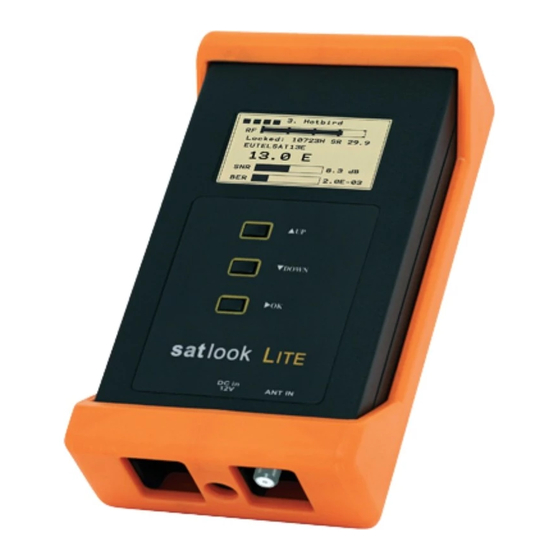

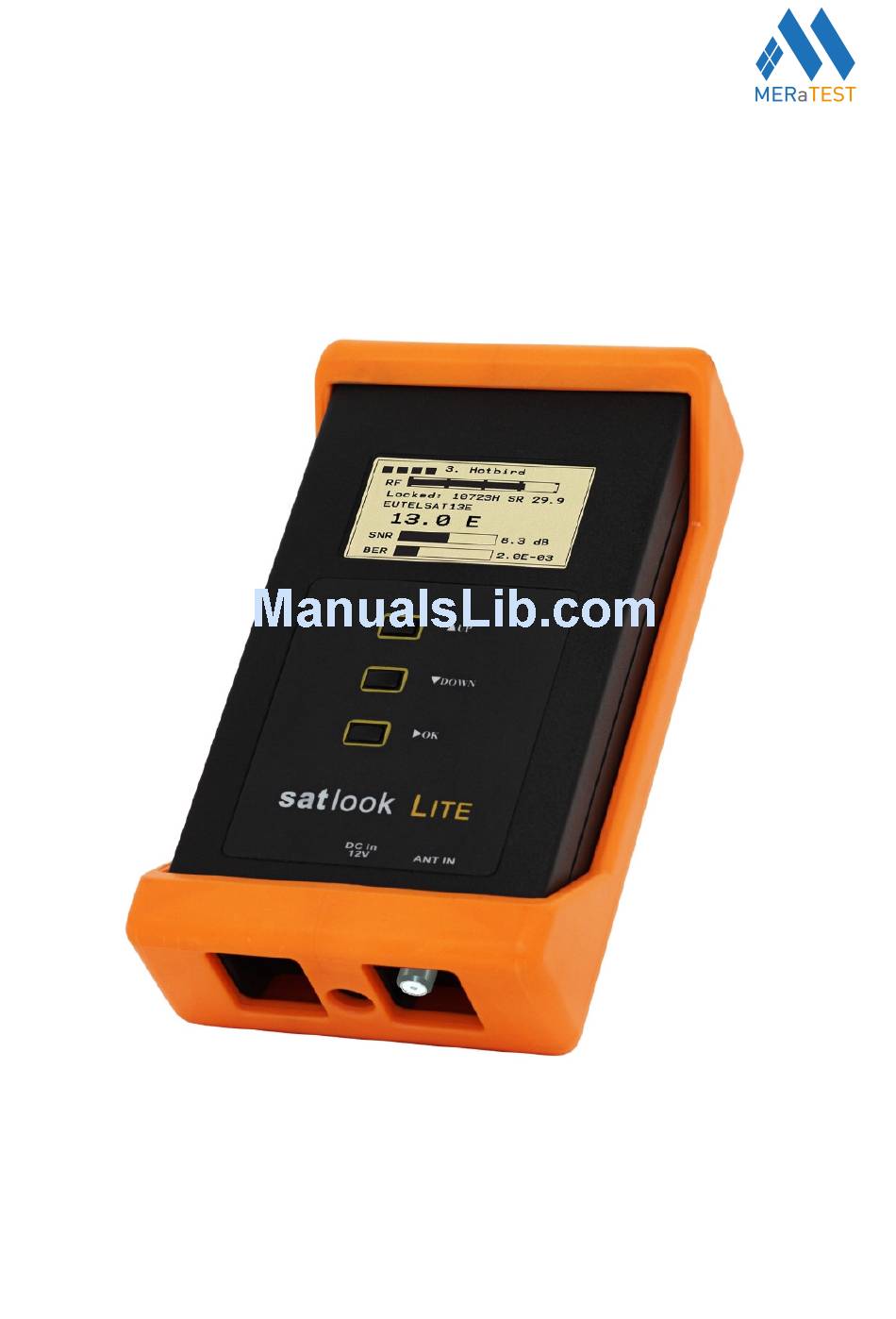

The instrument can supply Voltage (13/18/21 Volt), 22 kHz and DiSEqC to LNBs. The meter is short-circuit protected by an automatic current sensing circuit. The Satlook Lite is charged via an external DC power-source of 12 volt, 1.2 amp. It operates with 8xAA rechargeable batteries. The unit will operate for about one hour... -
Page 4: Getting Started
To turn the unit OFF, push and hold down the Ok button for two seconds. Power supply and battery The Satlook Lite can be operated by an external power-supply through the VDC port, using an external power-source (12v dc, max 1.2A). Connect the power-source and hold down the ON button until the unit turns On. - Page 5 The signal level will increase on the signal bar if any satellite signal is detected. If the beeper is enabled, then the pitch of the beeper will increase with signal strength. Once the instrument locks on a satellite transponder, the display is changed to include SNR (signal to noise ratio) and BER (bit error rate) bars and numeric values.
-
Page 6: Menu
Menu The following menu is shown on the display when pressing down the "OK" button in the "EasyFind" mode: This is the Main Menu. Use the "UP"/"DOWN" buttons to scroll up and down in the menu system. Use the "OK" button to choose the selected function. Pressing the "OK"... -
Page 7: Spectrum
Spectrum Pressing the "OK" button when the arrow “>” is pointing towards "Spectrum" displays a spectrum. On entry, the spectrum display shows a 125MHz band centered on the current EasyFind satellite. Pressing the “OK” button will exit to the Main Menu. Pressing the “Up”... -
Page 8: Favourites
Send DiSEqC Pressing “OK” when the arrow “>” is pointing to “Send DiSEqC” will enter the selection menu where the DiSEqC commands LNB1, LNB2, LNB3, LNB4 can be sent. When you select one of the LNB commands, it is sent at the next tuning. The EasyFind satellite selected may have a DiSEqC command already selected. -
Page 9: Setup
Setup Pressing "OK" when the arrow “>” is pointing towards "Setup" will enter the setup mode. In setup mode these parameters can be adjusted. These settings will be restored on power on. • Language: English, Spanish, French, German, Portuguese and Swedish •... -
Page 10: Appendix A - Using Liteedit To Edit Satellites
Appendix A – Using LiteEdit to Edit Satellites The Satellite list (Satlist) stored in the Satlook Lite can be changed using the LiteEdit program. When the LiteEdit program is loaded, it will show the last edited satellite list. Use “Import List” to load a satellite list to edit. - Page 11 DiSEqC: 0=off, 1=LNB1, 2=LNB2, 3=LNB3, 4=LNB4 If a DiSEqC command is required for tuning, this can be added to the satlist file instead of manual selection. Also stored in the file is a version number for reference which is displayed on Info display.
-
Page 12: Appendix B - Using Liteedit To Load Firmware
Connect the Rs232 cable from the computer to the instrument. You will need to connect the Satlook Lite to the charger as part of the firmware update process, but do not connect it yet. Run the “LiteEdit” application. - Page 13 Normally the download will start and indicate the number of bytes remaining to transfer. Sometimes, the Satlook Lite might miss the download request and continue to start. If this happens, unplug the instrument and restart the firmware download. At the end of the download, use the Setup->Info screen to check the “SW version” to ensure that the new version is loaded.
-
Page 14: Appendix C - Lnb Type Description
Appendix C – LNB Type Description There are several bands used for satellite transmission in use worldwide. In Europe, Ku band is predominantly used with some C band usage. In the US, C band, Ku band and Ka are used. The Ku band in US is divided into DBS (Direct Broadcast Satellite) and FSS (Fixed Satellite Service) bands. - Page 15 Universal LNB The Universal LNB can receive either horizontal or vertical polarisations depending on the LNB line voltage. 13V is used to select Vertical polarisation and 18V is used to select Horizontal polarisation. The Ku band for satellite reception is 2050 MHz wide (12750 - 10700) while the receiver input is only 1100 MHz wide (2150 –...
-
Page 16: Appendix D - Diseqc Description
Most DiSEqC commands are 3 bytes in length but some can be up to 6 bytes long, so the transmission time of a DiSEqC message is on the order of 40 to 80 milliseconds. DiSEqC Commands Supported in Satlook Lite LNB1: 0xe0, 0x10, 0x38, 0xc0 LNB2: 0xe0, 0x10, 0x38, 0xc4... -
Page 17: Appendix E - Dvb-S Description
Appendix E - DVB-S Description DVB-S uses phase shift keying to digitally modulate a carrier. Quadrature phase shift keying is used in both and the digital data is encoded as a 90 degree phase shift in the signal. This gives 4 possible states for each sampling interval. The sampling interval is called the Symbol Rate and each state of 2 bits is a Symbol. -
Page 18: Appendix F - Technical Specification
• Weight: About 0.7 kg including batteries. • Accessories: Orange rubber casing. • Power-supply of 100-240VAC 12V, 1.2 A • Car-charger Distribut MERaTEST s.r.o. Emitor AB Družstevná 2 (Dom štát. správy 2.p.) Sjöviksbacken 14, 916 01 Stará Turá Tel.: 032/642 0909 117 43 Stockholm, Sweden Mob.: 0903 533 859...
