- Page 1 SATLOOK Mark IV Free To Air Owners Manual Emitor AB...
-
Page 2: Table Of Contents
All information in this publication is based on the latest product information available at the time of printing. Emitor AB reserves the right to make changes at any time without notice and without incurring any obligation. No part of this publication may be reproduced without written permission. -
Page 3: Description

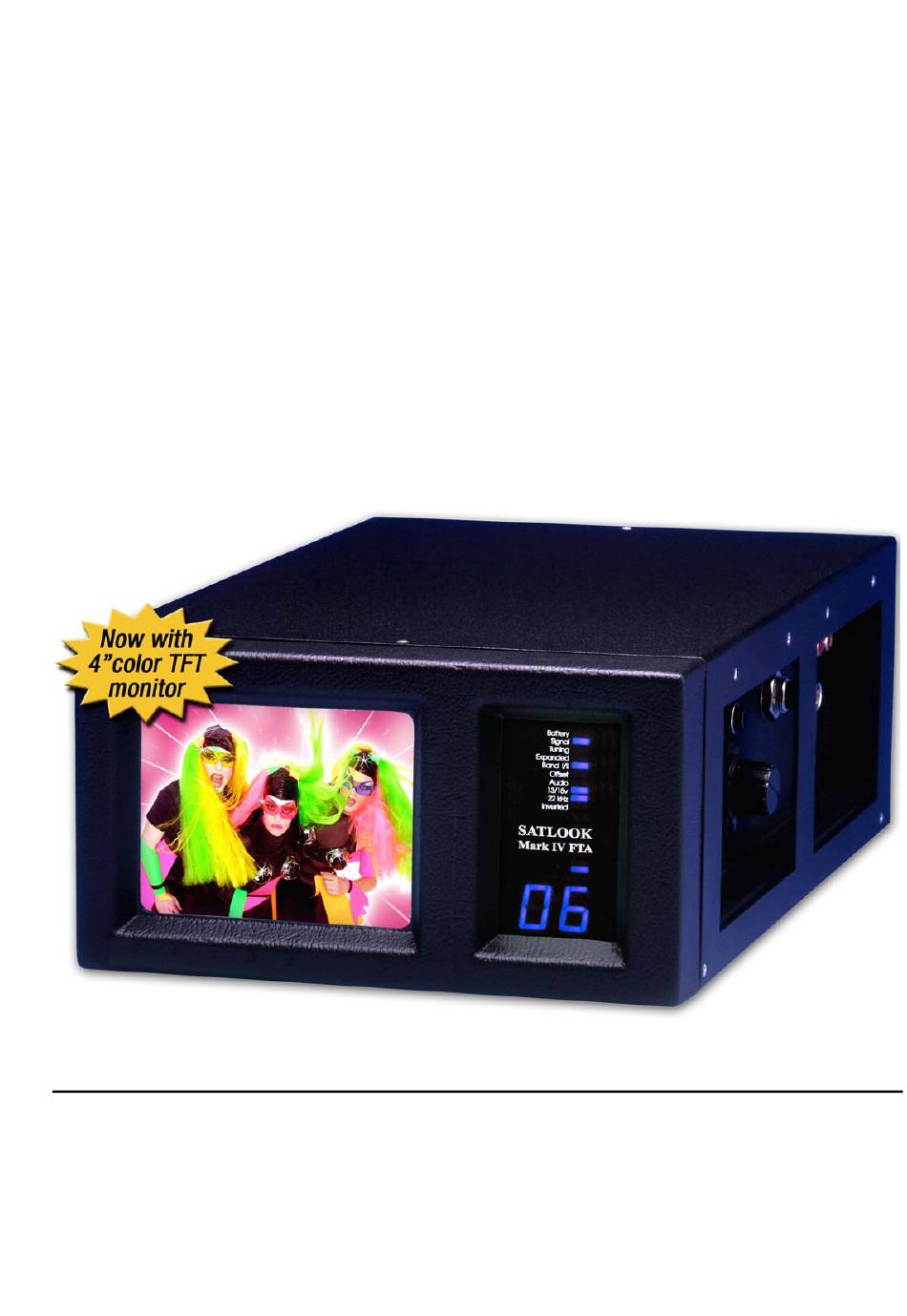

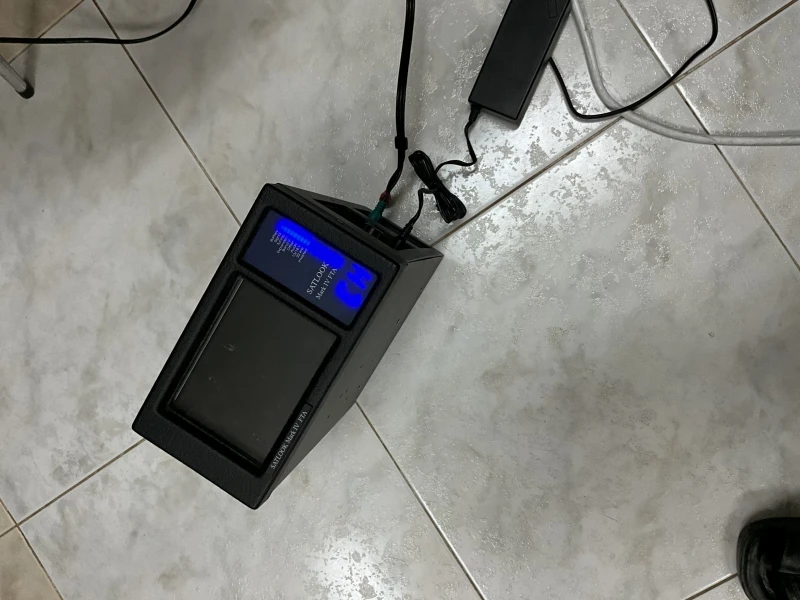

1. Description: EMITOR SATLOOK Mark IV FTA is a measuring-instrument developed and manufactured in Sweden for exact alignment and adjustment of satellite-dishes. The instrument is provided with a 4.5" TFT-color monitor which either shows Digital FTA / Analog TV-channel or the frequency spectrum 920-2150 MHz (normal or expanded mode). -
Page 4: Operation
2. Operation: A. Unpacking. Start with unpacking the instrument and check that the following items are in the cardboard box: 1. SATLOOK Mark IV FTA instrument. 2. Nylon carrying case with shoulder strap. 3. Car-adaptor 12v. 4. External power supply 220v/13.5v. 5. - Page 5 B. Batterycheck. As the instrument has been stored for some time before transportation it is important to check the battery-condition. To do this turn the mainswitch On. When starting the instrument, the monitor turns on in spectrum-mode and LED nr 2 on the front-display will be lit.
- Page 6 If the loudspeaker (beeper function, button nr 8) is switched On there are higher and higher tones when the signal level is getting stronger. Audio carriers can be tuned in when pushing button nr #. The two small knobs below the keypad adjust the volume and the audio-frequency between 5.5 and 8.5 MHz.
-
Page 7: Functions
3. Functions: Keypad, normal mode: 1. Picture/Invert. 2. Spectrum/Expanded spectrum (on/off) 3. Digital Free To Air Receiver. ----------------------------------- See below 3. 4. Tuning, display 00-99 on/off. 5. DiSEqC-mode. ----------------------------------------------------See below 5. 6. Batterycondition, display LO,0-9,HI. 7. Signalstrength offset, on/off. 8. Beeper, on/off. 9. - Page 8 4. Normally, the instrument present signal-strength on the two digit LED-display. Pressing button nr 4 activates the tuning indication with a value from 00-99. Pressing the button again returns to the signal-strength mode. 5. Activates the DiSEqC-mode. Press the nr 5 button and the corresponding command-button (ex.
- Page 9 4. Digital free to air reciever: Press the MENU key on your RCU or button ’0’ on the keypad to see the main menu on the screen. When you select one of the highlighted (or colorful) icons by LEFT/RIGHT key at menu , a sub-menu item will be shown on the TV screen.
- Page 10 D. Favorite Channel List When you press the FAV key, the favorite channel list window will be displayed at right corner ( like OK key). The favorite channels can be selected at FAV item of the TV or Radio Edit Channel menu. E.
- Page 11 F. EPG key Provides a short information about program’s name, time and schedule. When you press EPG key, you can see EPG window as left. If the service provider broadcasts the EPG information, it will be displayed as guide information in EPG window. Press Left or Right key to switch between the current/next program schedule.
- Page 12 A. Menu Language : You can choose between 9 languages. (English, France, German,Italian,Turkey, Spanish, Polish, Arabic, Persia ) B. OSD Mixing Ratio : Allows you to customize appearance of the OSD C. Local Timer : Allows you to select the local time relative to GMT by LEFT or Right Key. D.
- Page 13 B. Channel Search For example, if you want to search channels of the transponder or satellite, After selecting searching method, press the OK key at the “Search” item. it will automatically trace available channels of the transponder or satellite and display the searching status by showing processing rate and the result of channel list captured C.
- Page 14 D. DiSEqC Positioner (Version 1.2) Use this menu to setup position of the antenna, if you have the DiSEqC positioner and control it, press the OK key at satellite name item. First, you must select the satellite and transponder which you want to tune by LEFT/RIGHT key.
- Page 15 Edit Channel The “TV or Radio Channel Edit” menu has 6 items : Favorite, Lock, Edit Channel Name, Delete, Move, Sort. If you select one of the icons by LEFT/RIGHT key and press the OK key, the corresponding submenu functions will be operated. A.
- Page 16 B. Lock Channel (LOCK) This command allows you to lock specified channel and prevent others from viewing it. Press OK key to lock the selected channel and press OK key once again to cancel selection. C. Edit Channel Name (EDIT) The channel names are automatically captured when you search them at Channel Search menu.
- Page 17 E. MOVE Channel (MOVE) This menu is used to change the order of displayed channels. Press OK key to select a channel which you want to move and move it to the other position. Press OK key again, and then the Channel will be moved.
- Page 18 Parental Control and more. In this menu, you can create the censorship setting by using special secret code. This menu has System Lock, Change Password, Clear TV Channel, Clear RADIO Channel, Clear All Channel , Factory Restore . If you select one of the highlighted titles and press the OK key, a sub menu will be shown on the TV screen.
- Page 19 C. Clear TV Channel Use this sub-menu to clear the all TV Channel that you do not want to use anymore. You must use this menu carefully. D. Clear RADIO Channel Use this sub-menu to clear the all Radio Channel. You must use this menu carefully.
-
Page 20: Maintenance
5. Maintenance. The instrument is equipped with a rechargeable battery and it is important that the battery is maintained. Recharging should be done with a car-adaptor (enclosed) or with an external power supply of at least 12v,2 Amp, center-pin -plus and chassi -earth. Note, do not use other methods. -
Page 21: Technical Specification
6. Technical Specification: EMITOR SATLOOK Mark IV Free To AIR. Input frequency: 950-2150 MHz. Input level: 30-100 dBuV. Input impedance: 75 ohm, BNC-kontakt. Monitor type: Color-TFT, 4.5" PAL, NTSC. Audio bandwidth: Tuneable 5.5 to 8.5 MHz, Mono. Volume control. Demodulation method: QPSK demodulation Input Symbol Rate: 1 –...
