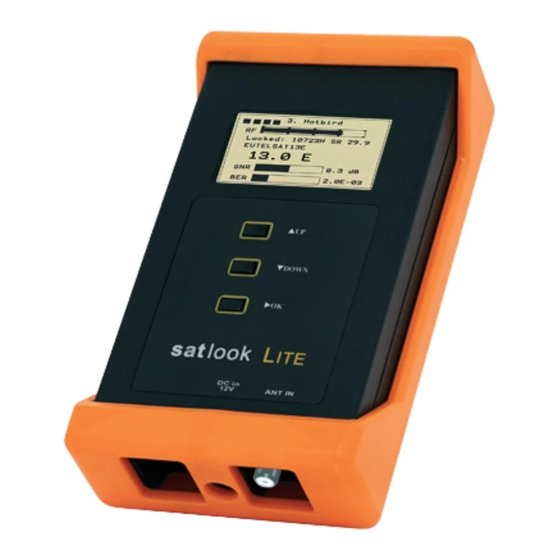

Satlook lite emitor satellite meter finder
Hide thumbs Also See for satlook Lite:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
satlook Lite
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the satlook Lite and is the answer not in the manual?

Questions and answers

John Vassen
April 26, 2025

Does it pick up signal for satcr

0

Related Manuals for emitor satlook Lite

Summary of Contents for emitor satlook Lite

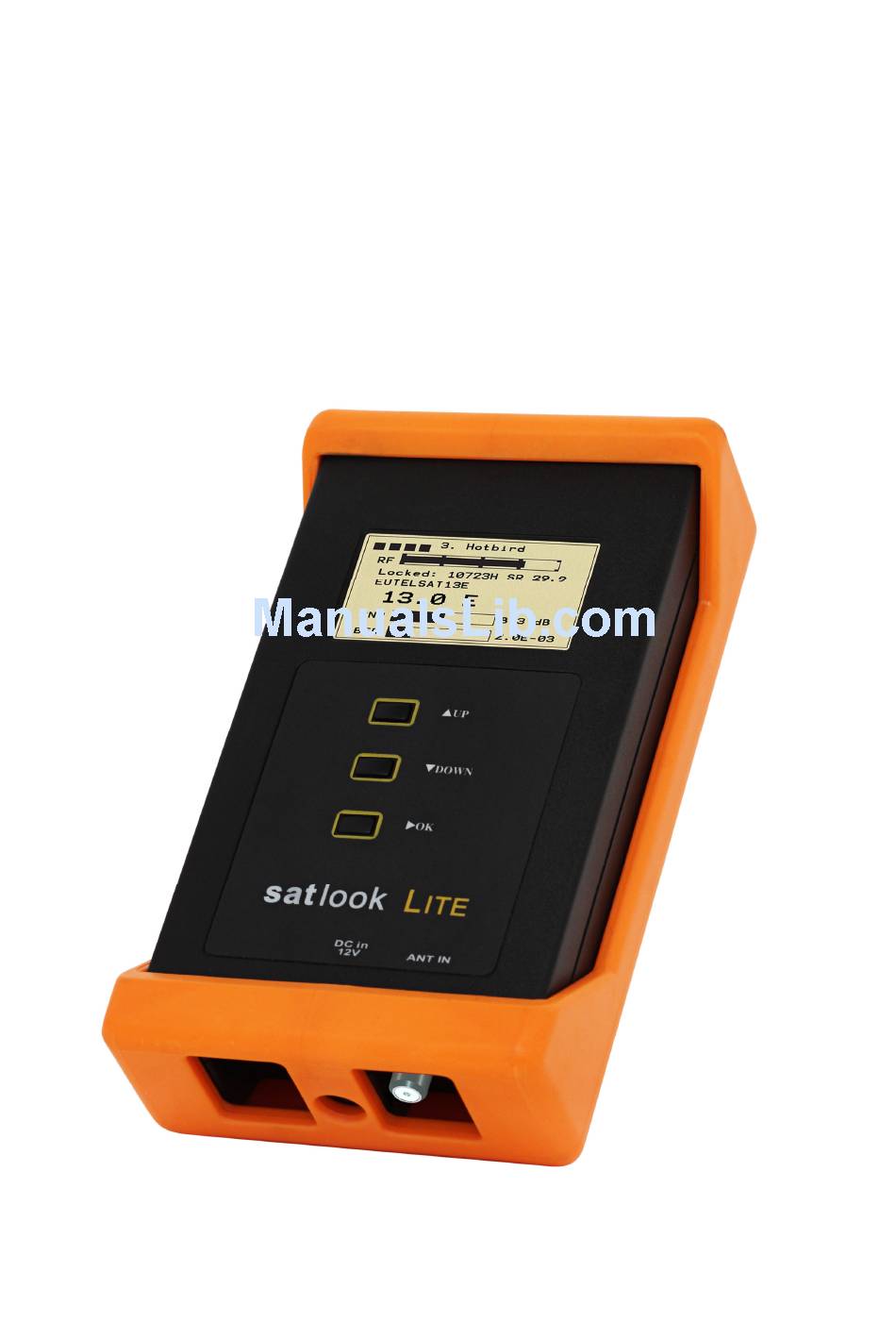

  • Page 1 Lite USER MANUAL...
  • Page 2 Lite can feed Voltage (13/18 Volt), 22 kHz and DiSEqC to LNB´s The meter is short-circuit protected by an automatic fuse. satlook Lite is charged via an external DC power-source of 12 volt, 1,2 amp. satlook Lite operates with 8xAA rechargeable batteries. The unit will works for about...

  • Page 3: Getting Started

    To turn the unit OFF, push and hold down the Ok –button for a couple of seconds. 1.2 Power supply and battery satlook Lite can be fed by an external power-supply through the VDC port, by an external power-source (12v dc, max 1.2A). This is useful in case that the battery goes empty during an installation.
  • Page 4 The unit has a preset-list of 5-8 selected satellites (depending on where in the world You are). Chose, by using the arrow Up/Down buttons, the satellite You want to install. The meter immediately starts to search for that particular satellite. It is indicated with pitch-tones from the beeper and signal strength indication on the LCD-display.
  • Page 5 2. Menu The following menu is shown on the display when pressing down the “OK” button in the “EasyFind” mode: This is the Main Menu. Use the “UP”/”DOWN” buttons to scroll up and down in the menu system. Use the “OK” button to enable the selected function. >...
  • Page 6 Pressing down the “OK” button in “Spectrum”-mode will take the meter back to the “Main Menu”. > Pressing down “OK” when > pointing towards “Beeper ON/OFF” will either turn the BEEPER ON or OFF. The idea is to help finding the strongest signal on the selected satellite by listening to the highest pitch of the tone.

  • Page 7: Technical Specification

    • Weight: About 0.7 kg including batteries. • Accessories: Orange rubber casing. • Power-supply of 220v/13.8v, 1.5 amp • Car-charger Sjöviksbacken 14 117 43, Stockholm Sweden Phone: +46 8 775 00 01 Fax: +46 8 775 00 06 Web: www.emitor.se...
