Beeper; 13/18V , 22 Khz And Diseqc; Diseqc 1.2 Actuator Control - emitor SATLOOK Micro plus Owner's Manual

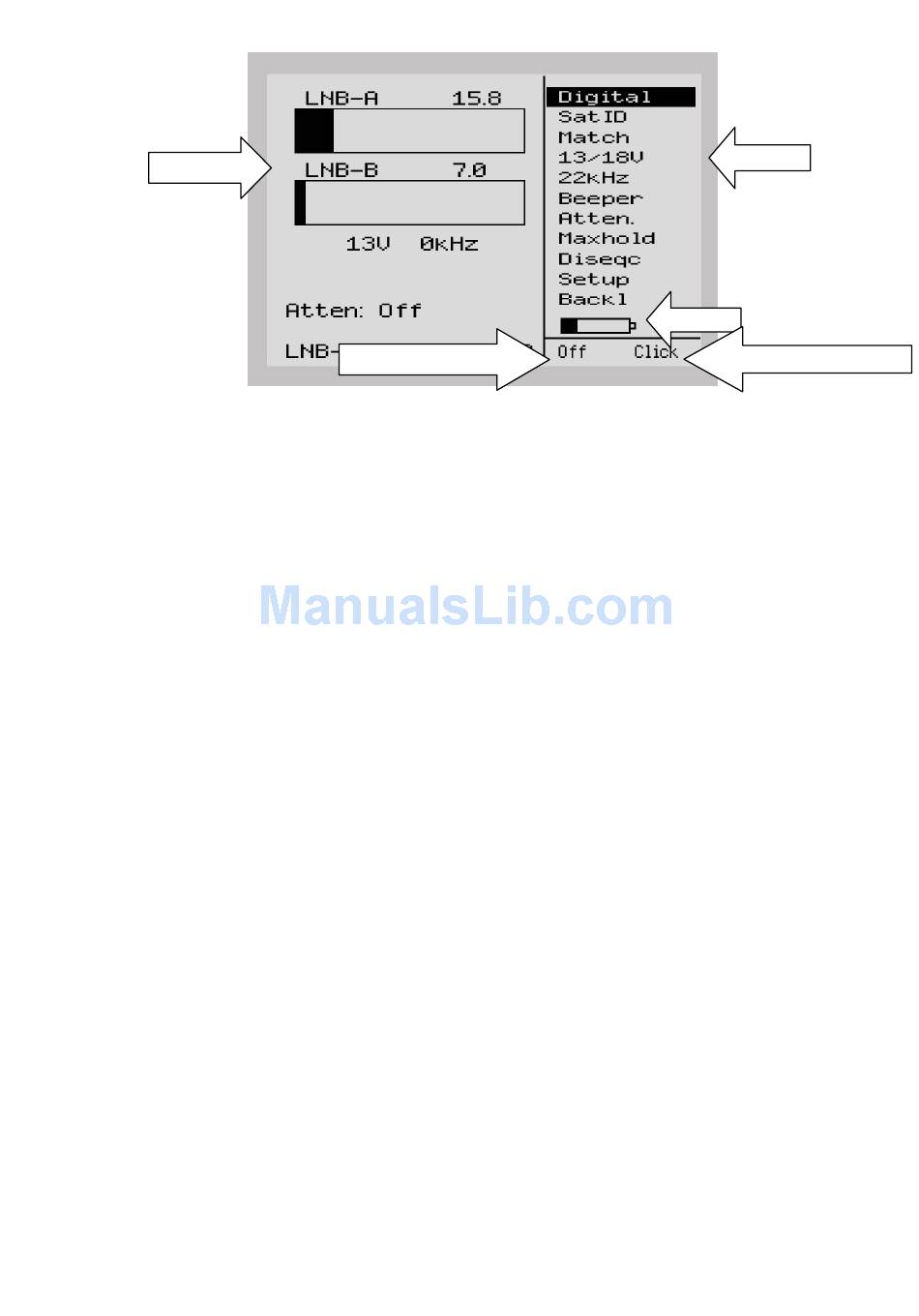

Menu
Signal bars
Battery
Left (red) controlbutton
Right (black) controlbutton

3.1.1 Beeper

If the loudspeaker (Beeper function) is switched on, it will present higher and higher tones as
the signal level is getting better.

3.1.2 13/18V , 22 kHz and DiSEqC

It is easy to set up 13/18V, 22 kHz on/off and DiSEqC-signals with help of the control knob and
the control buttons.
Simply place the marker over 13/18V with the control knob. Push the right (black) control
button and the supply voltage will switch. Current status (13/18V, 22 kHz on/off and the
voltage draw (mA) of the LNB) are displayed on the LCD-screen below the bar-graphs.
Notice that the control-signals are only available at LNB-A (all tones are blocked at LNB-B).
The instrument support the DiSEqC level 1.0 (and Toneburst), 1.1 and 1.2 standard (only
LNB-A input). Activate the function by entering the DiSEqC position in the menu.

3.1.3 DiSEqC 1.2 actuator control

The SATLOOK Micro + controls DiSEqC 1.2-actuators
Enter the function via "DiseqC" in the main menu and then via "Motor" in the sub-menu. The
unit runs such an actuator east/west with the "Go East" and "Go West" functions.
Notice that the actuator-control is only available at the LNB-A input.
Signal-strength is also shown in this mode.
Some motors can be calibrated with the "Calibr."-command.
The "Limits"- function sets East and West limits. They can be erased with the "Clr. Limit"-
command. Actuator positions can be stored with the "Position"-command.
6(12)
