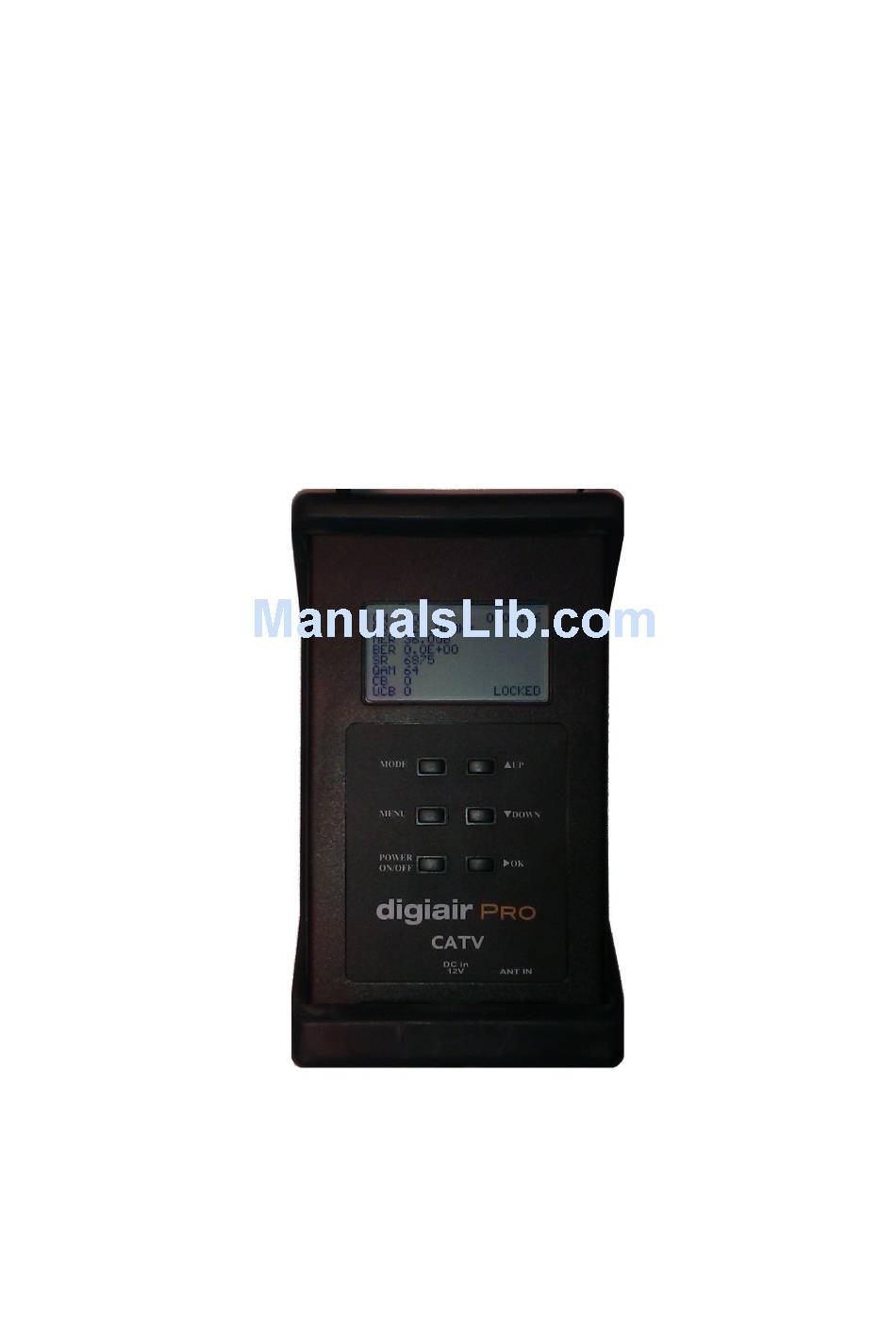

  • Page 1 DIGIAIR PRO CATV USER MANUAL...

  • Page 2: Table Of Contents

    UCB (uncorrected bits) and CB (corrected blocks) is also easy to do. DIGIAIR Pro CATV is very sensitive and can detect even the weakest signals. DIGIAIR Pro CATV is charged via an external DC power-source of 10 -15 volt. The DIGIAIR PRO CATV operates with 8xAA rechargeable batteries.

  • Page 3: Digiair Pro Catv - Description

    1 Getting Started 1.1 Power ON/OFF To turn the unit ON, simply push the Power ON/OFF button (the unit is battery operated). The unit starts in Single channel mode, showing the signal on the meter. To turn the unit OFF, push and hold down the ON/OFF button.

  • Page 4: Digital-Mode

    Press down the mode button again when the antenna is pointed in the right direction. Digital-mode This will put the meter in the The CB value is the number of corrected bytes since lock. The UCB value is the number of uncorrected blocks since lock. Press “OK”...

  • Page 5: Spectrum Mode

    In this mode the meter measure the signal strength of six individually selected channels. DIGIAIR Pro CATV can be set up with five such pages of six channels (5x6 channels). The page number is indicated in the top-right corner. To scroll through the pages use the UP/DOWN buttons.

  • Page 6: Menu

    2.4 Spectrum-mode (view spectrum) In this mode the meter shows all the channels. One pixel-line represents one channel. Move the cursor (the animated dotted line) with the UP and DOWN buttons and place it on a channel. The signal-strength of the chosen channel is shown. 3.

  • Page 7: Auto Power Off

    Channel groups. In this mode You can select the channels to be stored in DIGIAIR Pro CATV´s memory. The stored channels are shown in Multi channel mode. Set up the five pages with the channels of Your choice. Do like this: A) The top value in the first bar (most to the left) is flashing when entering this setup.

  • Page 8: Technical Specification

    Weight: 0.3 kg. Dimensions: 185 x 115 x 50 mm. Accessories: Power 12V DC, 1A Rubber-case. Car charger. Emitor AB Sjöviksbacken 14 117 43, Stockholm Sweden Phone: +46 8 775 00 01 Fax: +46 8 775 00 06 Web: www.emitor.se...
