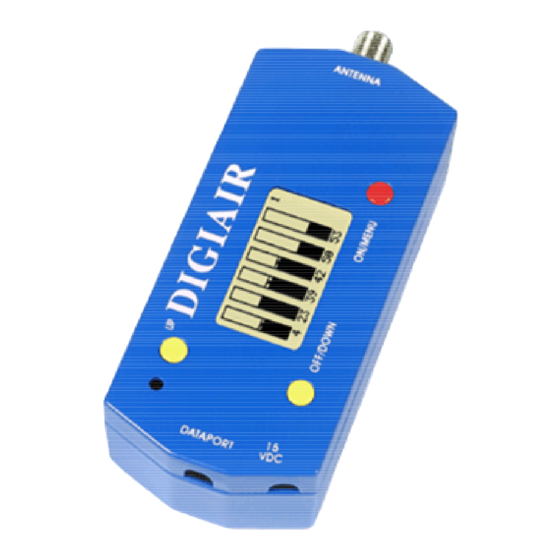

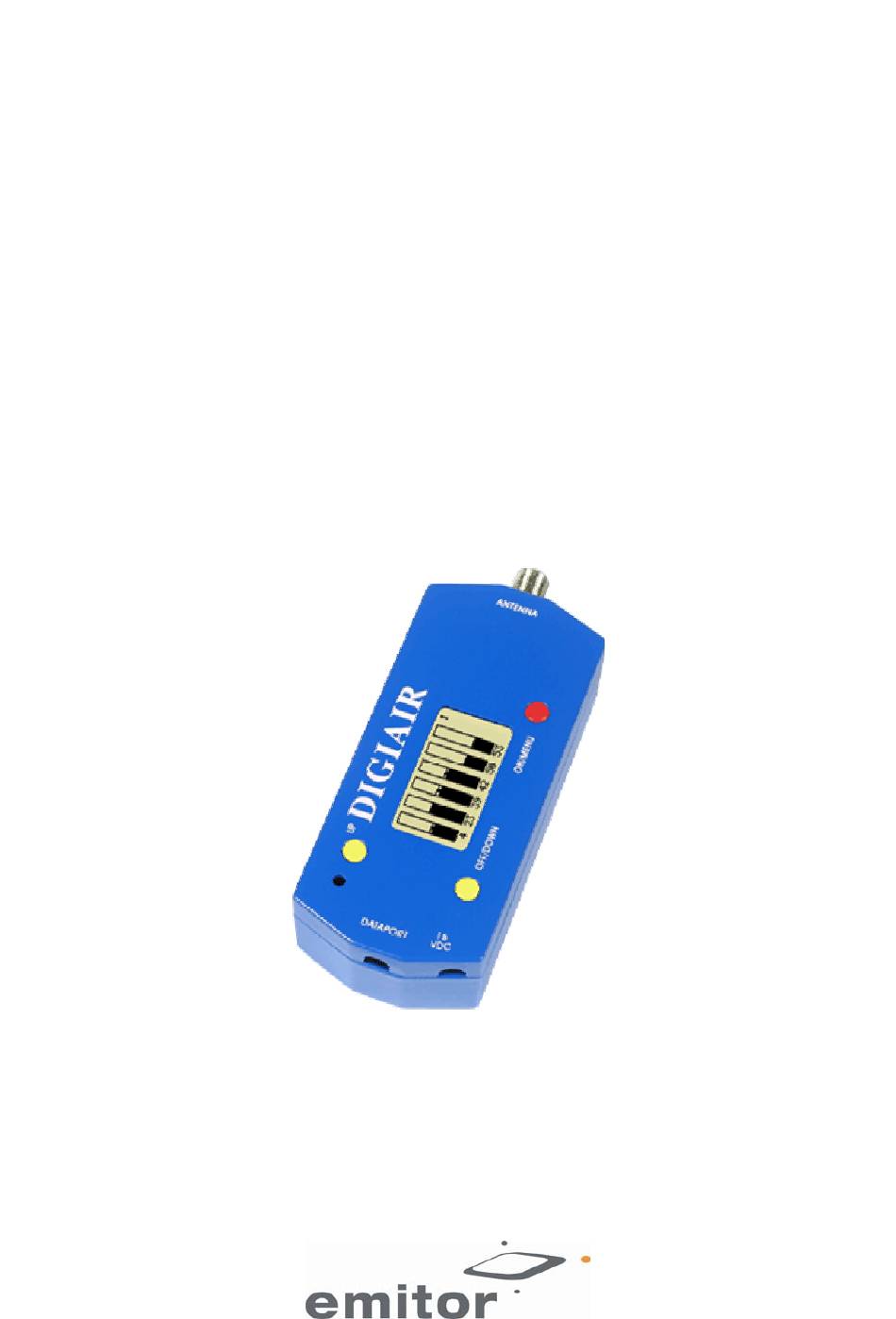

- Page 1 DIGIAIR Version 2.0 User’s Manual Rev. A 2005-06-23...
- Page 2 Content: 1 GETTING STARTED ......................3 1.1 P ON/OFF........................ 3 OWER 1.2 P ................... 3 OWER SUPPLY AND BATTERY 1.3 H ......................3 OW TO CONNECT 1.3.1 Operation and Menu system..................3 2 DIFFERENT FUNCTIONS ....................4 2.1 S ....................4 INGLE CHANNEL MODE 2.2 S ’...
-
Page 3: Getting Started
1.2 Power supply and battery DIGIAIR can be fed by an external power-supply through the 15 VDC port, by using 9 Volt (minimum 8 Volt and maximum 10 Volt). This is useful in case that the battery goes empty during an installation. - Page 4 OFF/DOWN buttons. The CCIR System that is set is shown on the bottom row, in this case PAL BG (see picture). In some of the DIGIAIR models the CCIR System can be changed by selecting Setup in the menu and then CCIR System.
- Page 5 The chosen Voltage output to the antenna port is indicated in Single channel mode. 2.6 Select channels In this mode You can select the channels to be stored in DIGIAIR’s memory. The stored channels are shown in Selected ch’s mode.
-
Page 6: Auto Power Off
2.7 Setup NOTE: On some models only one CCIR System is available. The CCIR System option in the Setup submenu is not present on those models. 2.8 Display contrast To adjust the contrast of the display, move the cursor to Darker or Lighter and repeatedly push the red ON/MENU button. - Page 7 Sweden, Norway, Finland, Denmark, Iceland, Germany, Switzerland, Austria, the Netherlands, Spain, Portugal, Turkey, Malaysia, Singapore, Israel, Serbia-Montenegro, FYRO Macedonia, Croatia, Slovenia, Bosnia and Herzegovina, United Arab Emirates, Kuwait, Oman, Jordan. Emitor AB Sjöviksbacken 14 117 43, Stockholm Sweden Phone: +46 8 775 00 01...
