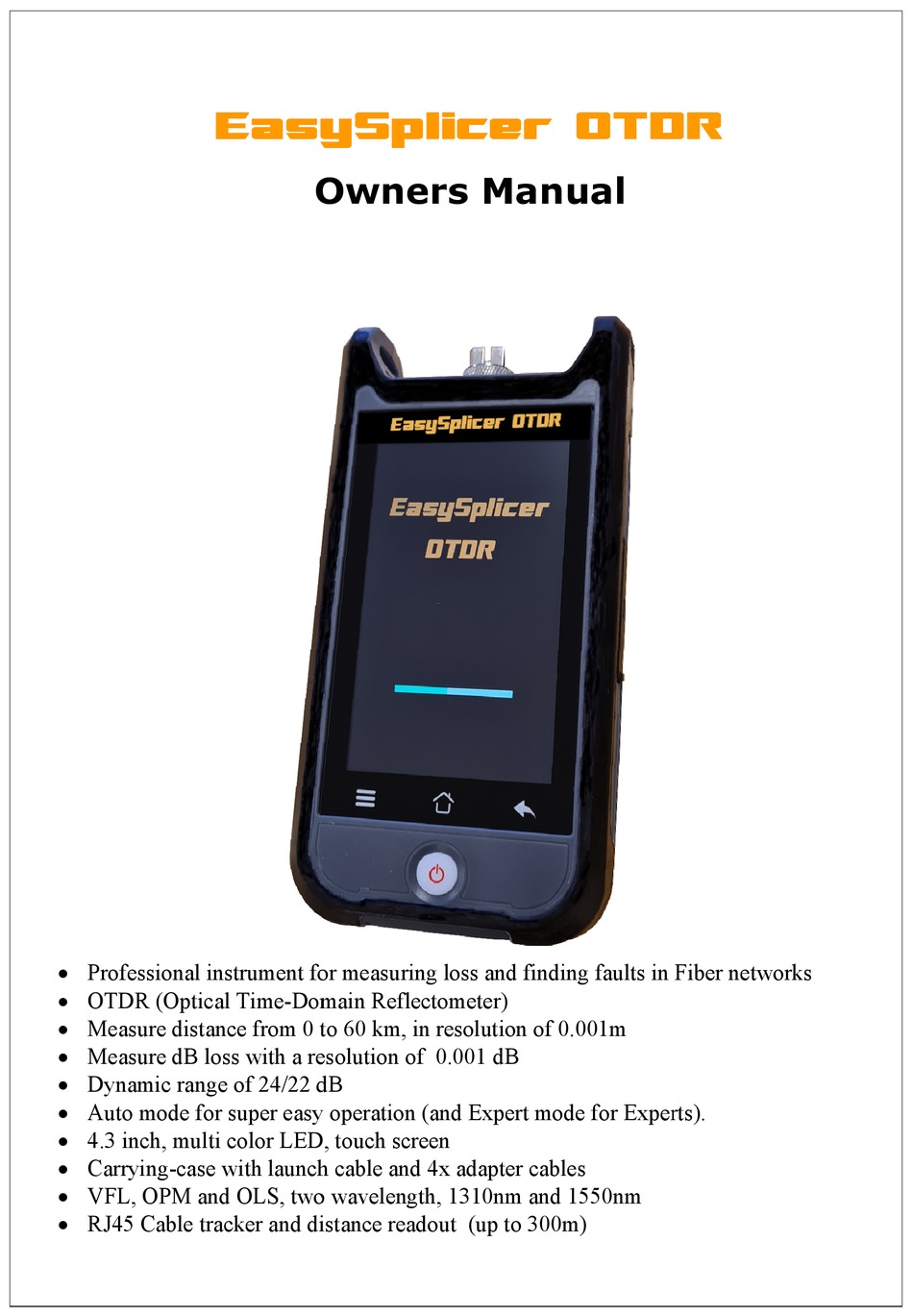

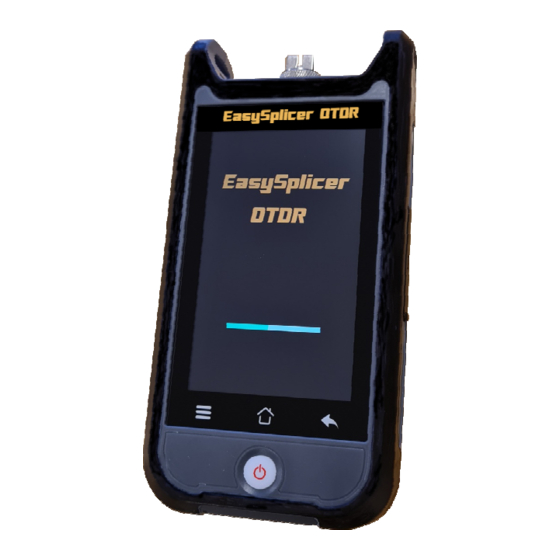

- Page 1 EasySplicer EasySplicer EasySplicer EasySplicer O O O O TDR EasySplicer EasySplicer EasySplicer EasySplicer Owners Manual Owners Manual Professional instrument for measuring loss and finding faults in Fiber networks Professional instrument for measuring loss and finding faults in Fiber networks Professional instrument for measuring loss and finding faults in Fiber networks ...
-
Page 2: Table Of Contents
OWNERS MANUAL - CONTENT Introduction Disclaimer EasySplicer OTDR Components BRIEF FUNCTION KEYS MAIN MENU (Start up) SHORTCUT MENU AUTO OTDR (Auto Mode) AUTO OTDR LIST EXPERT OTDR (Expert Mode) OTDR SETTING OTDR FILE – SAVE FILES OTDR FILE OPERATION – File maintenance... -
Page 3: Owners Manual - Content
The EasySplicer OTDR incorporates all the best a Swedish designed OTDR can offer. NOTE: EasySplicer OTDR is a high precision instrument and should always be handled with care! Disclaimer SB Scandinavia AB reserves the right to modify the product in any way without prior customer notification or any other form of notice. -
Page 4: Brief
BRIEF FUNCTION KEYS... -
Page 5: Main Menu (Start Up)
MAIN MENU (Start-up) Turn ON the instrument and the EasySplicer OTDR will start up in the Main menu. Touch the function of Your choice. -
Page 6: Shortcut Menu
SHORTCUT MENU Press the menu key to enter the quick operation menu, and press different function icons to enter the corresponding function interface or realize the corresponding operation functions. Screen capture: Capture the current interface, the picture will be automatically saved in the instrument, and the file name is the time when the screenshot is generated. -
Page 7: Auto Otdr (Auto Mode)
AUTO OTDR (Auto Mode) Auto OTDR: only need to set the wavelength as other parameters are automatically selected. Settings: enter “Test Setting” / “Pass/Fail” setting interface. 总 长 80.001KM 累 积 12.32dB 衰 减 事 件 12 Test settings: set the wavelength, IOR and test time Pass/Fail settings Avg. -
Page 8: Auto Otdr List
AUTO OTDR LIST List: the test results are displayed in the form of a list. Total length: the total length of the link Total-L: the total loss of the link Avg.L: the threshold loss (margin) of the link Total Event: the total number of events, passed numbers, failed numbers In the event list: NO.: the order of the current event... -
Page 9: Expert Otdr (Expert Mode)
Expert OTDR: set parameters such as wavelength, range and pulse width. Fast Setting: quickly set the test parameters of OTDR Measurement mode: OTDR scanning event mode, AutoTest/ RealTest/Avg.Test Wavelength: select the test wavelength of OTDR Test range: usually choose about 2 times of the length of the optical fiber to be tested Test pulse width: 3ns~20000ns optional, different range, the optional pulse width is different There are five types of events:... -
Page 10: Otdr Setting
OTDR SETTING Test Setting: Avg.Time,Wave and Refractice Index are the same as those in Auto OTDR. Refractive Index: provided by optical cable or fiber manufac turer.It is the key parameter for calculating the distance, and can not be set arbitrarily. Unit:select the required unit, there are 3 options for mi/km/kft. -
Page 11: Otdr File - Save Files
OTDR FILE – SAVE FILES OTDR-File Save Press the [Save] key to save file after the test is complete, pop up the keyboard, enter the name of the file, and press Enter to save the file. If the automatic save (otdr) function is turned on "System Settings", it will be saved automatically after the test is complete without manual operation. -
Page 12: Otdr File Operation - File Maintenance
OTDR FILE OPERATION – File maintenance OTDR-File Operation 【Files】to enter the file list. Press Head: back to the first page Delete: delete the current file or folder Rename: change the name of the current file or folder Open: open the selected file or folder... -
Page 13: Event Map
EVENT MAP The function can be operated automatically by one key, and the information of the length of the link, the type of event point and the position of breakpoint can be displayed in a graphical form. The result is clear and easy to understand. The starting point Starting point with launch cable Connected gadgets causing loss... -
Page 14: Laser Source
LASER SOURCE The wavelength of stabilized laser source is the same as OTDR wavelength. It is used to measure the parameters of telecommunication, CATV,LAN cable,insertion loss, isolation loss and echo loss of optical passive devices, and wavelength responsiveness of detectors. Open: turn on the laser source Wave: switch the wavelength, the output wavelength is consistent with OTDR Mode: switch the modulation frequency of light source, CW/270/330/1000/2000Hz... -
Page 15: Opm - Optical Power Meter
OPM – OPTICAL POWER METER The function is used to test the power of optical signal and insertion loss of various devices and photoelectric components. It can identify and measure the frequency of 270/330/1000/2000Hz optical signal. Wave: switch the working wavelength Reference: set current power as reference power CAL: enter the user calibration mode and calibrate with the standard light source... -
Page 16: Vfl - Visual Fault Locator
VFL – VISUAL FAULT LOCATOR Visible red light (650 nm) is injected into the optical fiber, and the position of the optical fiber fault point can be judged conveniently and accurately by observing the leakage position on the measured fiber. It is suitable for the detection of bare optical fibers, jumpers and other high loss sections caused by near-end faults and micro-bending of optical fibers and cables which can leak red light. -
Page 17: Optical Loss Test
OPTICAL LOSS TEST Used to test the insertion loss of optical passive components. The loss test steps are as follows： 1, First connect the LS and opm optical interface with standard jumpers，Press 【Open】 and press Reference】after the power is stable. 2, Then connect the tested part to LS and opm optical interfaces with standard jumper，... -
Page 18: Rj45 Tracker
RJ45 TRACKER RJ45 Tracker Used for Rj45 tracker. After the line-finding function is activated, the cable being searched is touched by the distal end of the line-searching, and the sound of continuous “ticking and ticking” heard. The equipment can withstand voltage and prevent burning, and can be directly charged for line finding. -
Page 19: Rj45 Sequence Test
RJ45 SEQUENCE TEST RJ45 line sequence measurement Measure the sequence of 8-core wires inside the network cable. Please connect to the remote module when measuring. Standard: select different network cable standards Test: start cable sequence test Exit: exit the cable sequence test and return to the main interface WARNING Please do not test online! ATTENTION... -
Page 20: Rj45 Length
RJ45 LENGTH RJ45 Length test: Test the length of the network cable. Standard: select different cable standards Unit: switch different units CAL: adjust the test result according to the actual length, and display length = last test result × correction Test: start cable length test WARNING Please do not test online! -
Page 21: System (Setup)
SYSTEM (Setup) Brightness: slide the progress bar to adjust the backlight brightness Energy conservation: slide the progress bar to set automatic screen power off without operation for 1-10 minutes Auto OFF: slide the progress bar to set the automatic shutdown time without operation Date &... -
Page 22: Faults And Solutions
FAULTS AND SOLUTIONS MAINTENANCE Cleaning of connectors The optical output interface of this series OTDR is a replaceable universal interface, and the end face must be kept clean during use. When the instrument fails to test the normal curve or the test result is not accurate, first consider cleaning the connector. -
Page 23: Technical Specification
TECHNICAL SPECIFICATION EasySplicer OTDR SC APC - Singelmode G.652 SM Wavelength 1310nm and 1550nm Dynamic Range 24/22dB Event Blind Zone 2.5m (0m with launch cable) ATT Blind Zone 8m (0m with launch cable Test Range 500m/1km/2km/4km/8km/ 16km/32km/64km/100km Pulse Width 3ns/5ns/10ns/20ns/30ns/...
