Getting Started

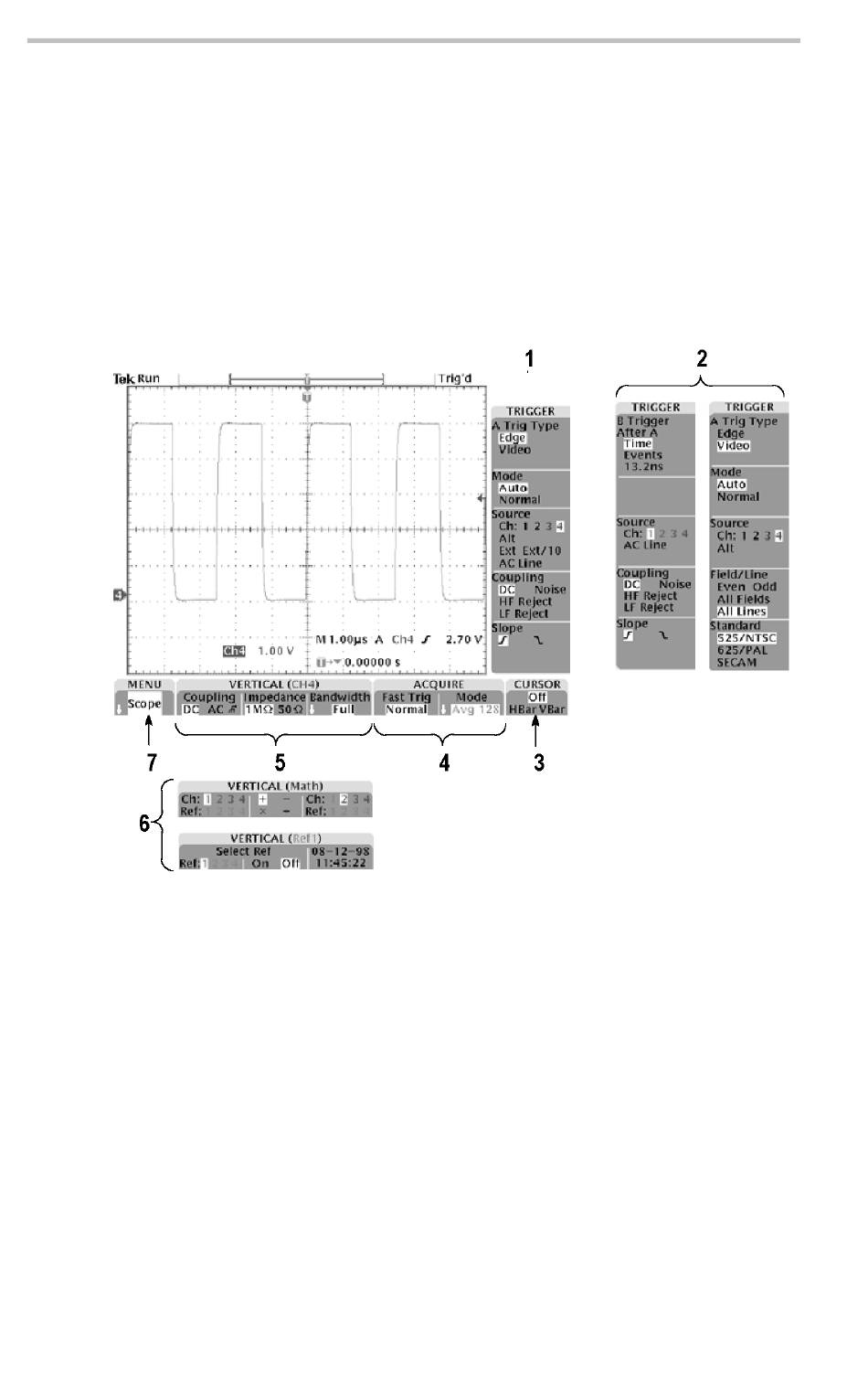

Using the Scope QuickMenu.
can use to control the basic oscilloscope functions. You can perform
many tasks without using the regular menu system. If you need to use a
function that is not contained in the Scope QuickMenu, push the button
you would normally push to access that function. For example, if you
want to add an automatic measurement, push the Meas button to set up
the measurement. Then, push the QuickMenu button to return to the
Scope QuickMenu with the measurement also in the display.
1. Edge Trigger controls. Push these screen buttons to set trigger
parameters for edge trigger.
2. Trigger controls if either B trigger or video trigger is selected. Logic
and Pulse trigger controls are not available through the QuickMenu.
3. Cursor control. Push this screen button to turn on cursors and select
the cursor type. Push the Select button to toggle between the two
cursors to select the active cursor. Use the general purpose knob to
move the active cursor.
4. Acquisition controls. Push these screen buttons to set acquisition
parameters.
26
Scope is one type of QuickMenu that you
TDS3000C Series Oscilloscope User Manual
