2. PANEL LAYOUT AND CONNECTIONS

2. PANEL LAYOUT AND CONNECTIONS

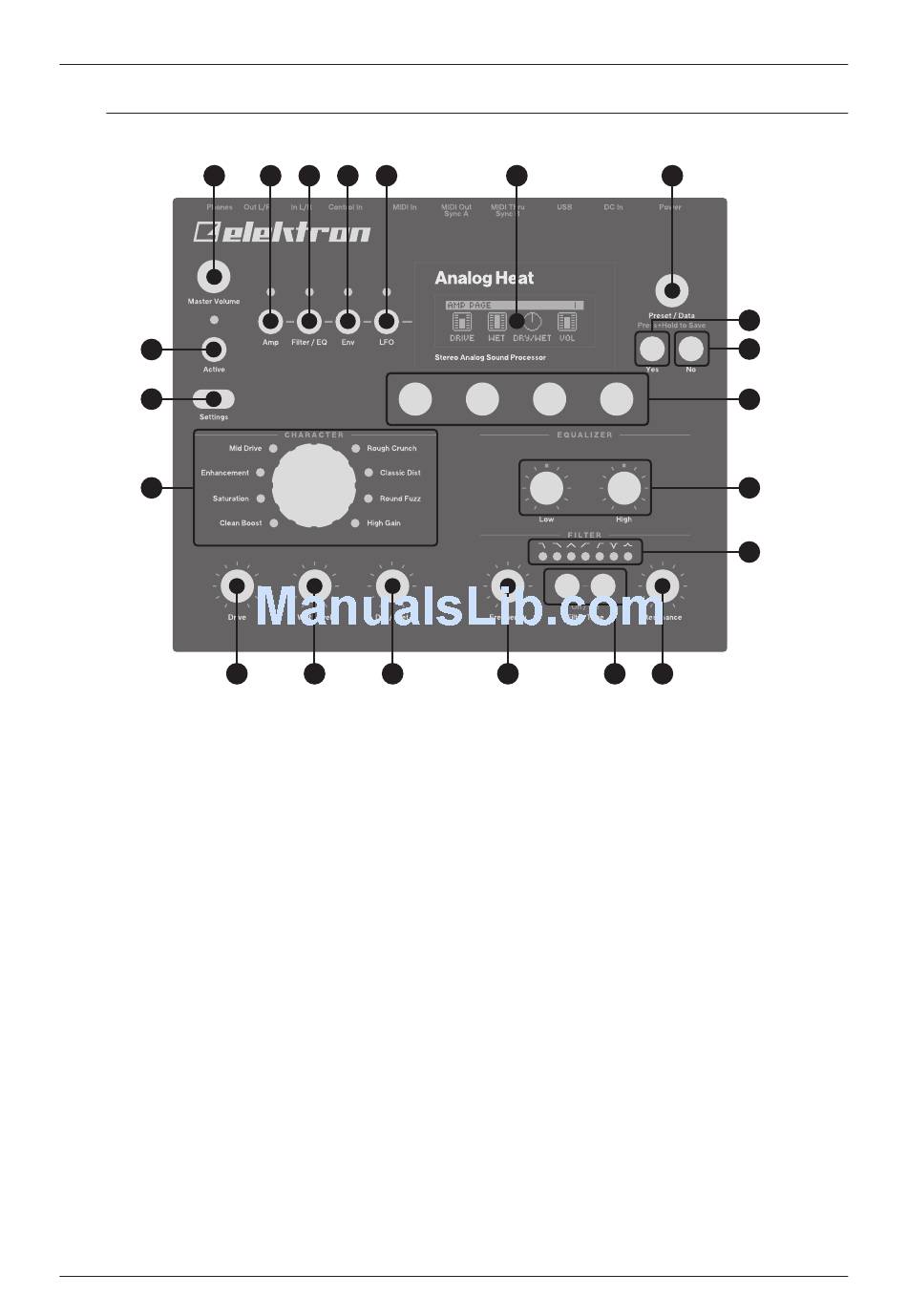

2.1 FRONT PANEL CONTROLS

1
21
20
19
18
1. MASTER VOLUME sets the master volume for the L/R and Headphones outputs.
2. [AMP] key accesses the AMP parameter page where you can set things such as drive amount and the
volume of the preset.
3. [FILTER/EQ] key accesses the FILTER/EQ parameter pages where you, among other things, can set
the filter frequency cutoff, and adjust the equalizer. Press twice to access the second page.
4. [ENV] key accesses the ENV parameter pages where you adjust the settings for the envelope genera-
tor/envelope follower. Press twice to access the second page.
5. [LFO] key accesses the LFO parameter pages where you set all things related to the Low Frequency
Oscillator. Press twice to access the second page.
6. The LCD screen.
7. PRESET/DATA Used for preset management, such as Save and Load, and data entry.
8. [YES] key is used for entering sub-menus, selecting and confirming.
9. [NO] key is used for exiting the current menu, backing to a higher level menu and negating.
10. DATA ENTRY knobs. Used to set parameter values. Press the knob when turning to change values in
larger increments. For more information, please see "5.11 PARAMETER EDITING" on page 14.
11. LOW and HIGH adjusts the amount of low-end and high-end frequency content.
12. <FILTER TYPE> LEDs that indicate the current type of filter and also if the filter is on or not.
13. RESONANCE sets the resonance of the filter.
14. [FILTER TYPE] selects between the different filter types. Also, pressing both keys at the same time
toggles the filter on and off.
15. FREQUENCY sets the filter's cutoff frequency.
16. DRY/WET sets the balance between the unprocessed (dry) signal and the processed (wet) signal.
17. WET LEVEL sets the level of the processed (wet) signal.
18. DRIVE controls the amount of drive. It increases the effect (distortion) of the selected circuit type.
19. CIRCUIT SELECTOR chooses between the eight different types of analog effect circuits.
20. [SETTINGS] key accesses the SETTINGS menu. See "6. THE SETTINGS MENU" on page 15.
21. [ACTIVE] toggles the effect between active and bypassed.
8
2 3 4 5
17 16
6 7
15 14 13
8
9
10
11
12
