  • Page 1 Quick Guide...
  • Page 3 Analog Heat +FX THANK YOU Thank you for purchasing Analog Heat +FX. In this third incarnation of Analog Heat, it is the ultimate tool to create your signature sound. On top of its powerful analog distortion circuits, filter, and EQ, we’ve added a new layer of digital effects. Using the newly designed graphical user interface, you can freely arrange the effect chain and choose the order of the FX blocks.
  • Page 4 FCC compliance statement This device complies with part 15 of the FCC rules. Operation is subject to the follow- ing two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 5 In no event shall Elektron be liable for any special, indirect, or consequential damages or any damages whatsoever resulting from loss of use, data, or profits, whether in an action of contract, negligence, or other action, arising out of or in connection with the use or performance of this information.
  • Page 6 IMPORTANT SAFETY INSTRUCTIONS 1. Do not use the unit near water. 2. Never use aggressive cleaners on the casing or on the screen. Remove dust, dirt and fingerprints with a soft, dry and non-abrasive cloth. More persistent dirt can be removed with a slightly damp cloth using only water.
  • Page 7 WARNING! TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK OR PRODUCT DAMAGE • Do not expose the unit to rain, moisture, dripping or splashing and also avoid placing objects filled with liquid, such as vases, on the unit. • Do not expose the unit to direct sunlight, nor use it in ambient temperatures exceeding 40°C as this can lead to malfunction.

  • Page 8: Table Of Contents

    2.2 REAR PANEL CONNECTIONS ..........12 3. FIRST STEPS WITH THE ANALOG HEAT +FX ............... 13 3.1 CONNECTING THE UNIT .

  • Page 9: Introduction

    6. TIPS & TRICKS ........................22 6.1 STEREO PHASER EFFECT ........... 22 6.2 ADDING SATURATION TO THE HIGH REGISTER .

  • Page 10: Panel Layout And Connections

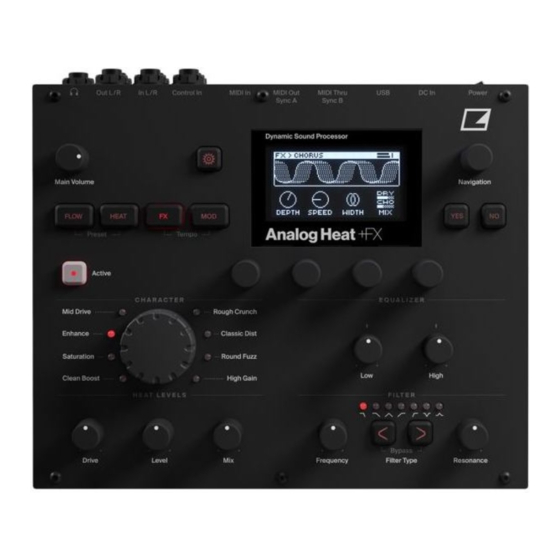

    2. PANEL LAYOUT AND CONNECTIONS 2.1 FRONT PANEL CONTROLS [FLOW] accesses the FLOW parameter page where you can change the order of the FX blocks in the signal path, activate/deactivate each FX block. You can also set the dry/wet mix of each effect block. [HEAT] accesses the AMP, FILTER, and GATE parameter pages where you, among...
  • Page 11 other things, can select filter types and adjust the equalizer. [FX] accesses the parameter pages for the digital effects. [MOD] accesses the ENV parameter pages where you adjust the settings for the envelope generator/envelope follower and the LFO parameter pages. Here you also find the Mod matrix.

  • Page 12: Rear Panel Connections

    2.2 REAR PANEL CONNECTIONS 1. POWER, Switch for turning the unit on and off. 2. DC IN, Input for power supply. Use the included PSU-3b power adapter connected to a power outlet. 3. USB, For connecting the unit to a computer. Used for MIDI control or Overbridge. Connect to a computer host using the included A to B USB 2.0 connector cable.

  • Page 13: First Steps With The Analog Heat +Fx

    5. If you want to use MIDI to control the Analog Heat +FX, connect the MIDI OUT port of the device you wish to send data from to the MIDI IN port of the Analog Heat +FX. The MIDI THRU port duplicates the data arriving at the MIDI IN port, so you can use it for chaining MIDI units together.

  • Page 14: Setup Examples

    3.3 SETUP EXAMPLES The Analog Heat +FX is very well suited for use in both an analog setup and in a more digi- tal environment. Here are a couple of examples of how you can use the Analog Heat +FX.
  • Page 15 ANALOG HEAT +FX AS AN EXTERNAL EFFECT In this example, the Analog Heat +FX is used as an external effect to add color to the Elektron Octatrack before the signal reaches the mixer. ANALOG HEAT +FX AS A VST/AU/AAX PLUGIN USING OVERBRIDGE Analog Heat +FX can also be used together with Overbridge to allow you to use the Ana- log Heat +FX as a plug-in for analog and digital sound processing in your DAW.

  • Page 16: Signal Flow

    4. SIGNAL FLOW The following illustrations show the signal flows of the Analog Heat +FX. 4.1 AUDIO SIGNAL FLOW This illustration shows the general flow of audio through the Analog Heat +FX. The com- plete signal chain is in stereo. Gate...

  • Page 17: Modulation Signal Flow

    5. THE USER INTERFACE 5.1 PRESETS The Analog Heat +FX has 512 preset slots where you can store your presets. Preset slot A001 is an INIT preset with default values. Note that, when you switch off your device, you lose any changes you have made to the currently active preset unless you first save it.

  • Page 18: Active

    You can also use a footswitch to toggle the active mode. You also have the option to set if you want the Analog Heat +FX to start as active or not when you turn it on 5.3 EFFECT CIRCUITS...

  • Page 19: Filter Type

    You can also press the two [FILTER TYPE] keys simultaneously to toggle the filter on/off. It is possible to change the filter type even if the filter is turned off. There are seven different analog filter types in the Analog Heat +FX to help to shape the sound.

  • Page 20: Drive

    5.6 DRIVE DRIVE sets the gain level in the effect circuit in the Heat block. A higher setting increases the effect of the selected circuit type, typically resulting in more distortion. 5.7 LEVEL LEVEL sets the level of the signal coming from the effect of the Heat block. It is applied before the MIX parameter.

  • Page 21: Parameter Editing

    5.11 PARAMETER EDITING The four DATA ENTRY knobs are used to change the parameter values that you see on the screen. (Some parameters also have dedicated knobs on the panel.) The physical location of the knobs on the front panel corresponds to the layout of the parameters on the screen.

  • Page 22: Overbridge

    Analog Heat +FX. 6.1 STEREO PHASER EFFECT The Analog Heat +FX can also achieve an effect similar to that of a classic stereo phaser pedal by using the filter frequency panning function. 1. Select any circuit and set the [FILTER TYPE] to BAND STOP.

  • Page 23: Adding Saturation To The High Register

    6.2 ADDING SATURATION TO THE HIGH REGISTER You can use the Analog Heat +FX to add saturation to the high-frequency register of a full range mix. This is useful when you want to introduce some subtle harmonics to the mix, without distorting the overall sound.

  • Page 24: Technical Information

    7.2” x 2.5”) (including power switch, jacks, Unit power consumption: 12 W typical knobs, and feet) Compatible Elektron power supply: PSU-3c Weight: approximately 1.5 kg (3.3 lbs) 100 x 100 mm VESA mounting holes. Use M4 screws with a max length of 7.4 mm.

  • Page 25: Credits And Contact Information

    Erik Ångman Jennifer Giöbel Andreas Henriksson CONTACT INFORMATION Mario Adriane Hernandez ELEKTRON WEBSITE Tomas Hjalmarsson http://www.elektron.se Thomas Jansson Patrik Johansson OFFICE ADDRESS Christian Karlsson Elektron Music Machines MAV AB George Kaplan Banehagsliden 5 Åsa Larsson SE-414 51 Gothenburg Erik Liakhovets Sweden...
  • Page 26 ELEKTRON THREE YEAR WARRANTY Elektron machines are sold with a three year limited warranty, starting from the date of the original purchase. Being able to prove the date of the original purchase with an invoice or a receipt is necessary if you require warranty service. If the machine should need a repair during the warranty period no charges will be applied for parts or labor.
