  • Page 1 CMLUX-88S 8 by 8 HDMI V1.3 Matrix Operation Manual CMLUX-88S...
  • Page 2: Copyright Notice

    Disclaimers The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 3: Safety Precautions

    Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment:  Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 4: Table Of Contents

    Table of Contents Rack Installation Guideline ..………...……………...…..….…… Introduction ……………………..……………………...…..….……. Applications …………………..………………….……....….. Package Contents ………………………...………....… System Requirements ……………..………..………....……. Features …………………………………………..……..…...…… Specifications ………………………………...……..………..…. Operation Controls and Functions ……………...……....…… Front Panel ................Rear Panel .…………………………………..……..…...….… Remote Control .......…..……………..…..…..…... 8.1 IR Costom Code....…..……………..…..…..…. 8.2 Discrete IR codes for 8x8 HDMI matrix (IR3)..…..…..…... IR Pin Assignment ................
  • Page 5: Rack Installation Guideline

    ② Make sure the L-Shaped rail and the attach the L-Shape rail Mounting screws are properly aligned, to the frame. with two screws per L-Shaped rail. CMLUX-88S ③ Slide the device on top of the L-Shaped rails. CMLUX-88S 8x8 HDMI v1.3 MATRIX POWER...
  • Page 6: Introduction

    1. Introduction The popularity of HDMI products has been increasing for several years and is now commonly seen in residential and commercial settings. As people become accustomed to HDMI and use it more often, they acquire multiple devices and then find that they need something to help them link them together.
  • Page 7: Features

    5. Features HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant  Supports digital video formats in Deep Color 10 bits and new lossless  compressed (Dolby TrueHD, Dolby Digital Plus and DTS HD Master Audio) digital audio The HDMI input is compensated, clock/phase adjusted and jitter free so ...
  • Page 8: Specifications

    6. Specifications Input Ports 8 x HDMI Output Ports 8 x HDMI IR Frquency 20~60KHz Power Supply 24VDC/6.25A (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ± 10kV (air-gap discharge) ± 6kV (contact discharge) Dimensions (mm) 482(W) x385(D) x 176(H) Weight(g) 9500 Chassis Material...
  • Page 9: Operation Controls And Functions

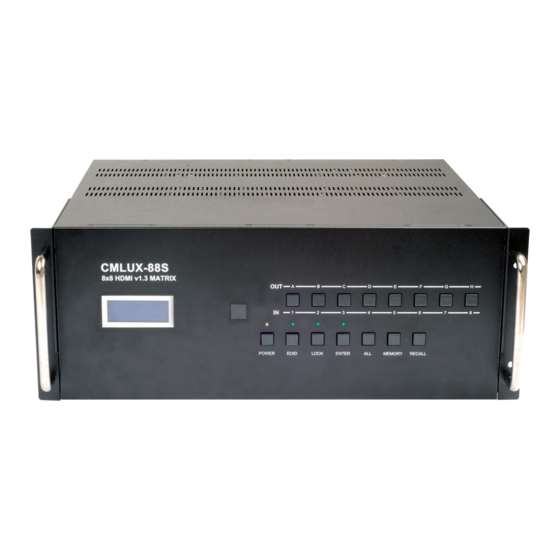

    7. Operation Controls and Functions The following sections describe the hardware components of the unit. 7.1 Front Panel ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ① LCM monitor: This monitor displays your settings information with each output and input selection. ②...
  • Page 10 ⑤ LOCK: Press this button to lock all the functions and press it again to release the lock. When LED turns Green, the lock is activated and when it turns red the key lock has been released. ⑥ ENTER: Press this button after each and every selection to confirm the setting.
  • Page 11: Rear Panel

    7.2 Rear Panel ① ② ③ ④ ⑤ ⑥ ⑦ ① HDMI OUTPUT A~H: These slots are where you connect the HDMI displays. ② SERVICE: This slot is where you connect a D-sub 9 male pin connector cable to your host, in order to upgrade your firmware. ③...
  • Page 12: Remote Control

    8. Remote Control This remote control can be set with multipal format according to the dipswitch setting. There are total of four dipswitches with mainly two kinds of settings. When dipswitches are all set to ON/ ↑ the remote control is able to control all outputs and all inputs. For example, when output A wish to select input 5.
  • Page 13: Ir Pin Assignment

    9. IR Pin Assignment 9.1 IR Receiver ① IR signal ② Power 5V ③ Grounding ① ② ③ 10. RS-232 Protocols 10.1 Pin Assignment CMLUX-88S Remote Control Console Assignment Assignment Baud Rate: 9600bps Data bit: 8 bits Parity: None Flow Control: None...
  • Page 14: Commands

    10.2 Commands COMMAND ACTION POWER 00 Power Off (standby) POWER 01 Power On PORT 11 Output A select Input1 PORT 12 Output A select Input2 PORT 13 Output A select Input3 PORT 14 Output A select Input4 PORT 15 Output A select Input5 PORT 16 Output A select Input6 PORT 17...
  • Page 15 PORT 47 Output D select Input7 PORT 48 Output D select Input8 PORT 51 Output E select Input1 PORT 52 Output E select Input2 PORT 53 Output E select Input3 PORT 54 Output E select Input4 PORT 55 Output E select Input5 PORT 56 Output E select Input6 PORT 57...
  • Page 16: Connection And Installation

    11. Connection and Installation HD TV HD TV HD TV HD TV Blu-ray Blu-ray HD TV HD TV HD TV HD TV...
  • Page 17: Acronyms

    Acronyms Acronym Complete Term Digital Theater System Digital Visual Interface EDID Extedned Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television Liquid Crystal Monitor Universal Serial Bus UXGA Ultra Extended Graphics Array Video Graphics Array...
