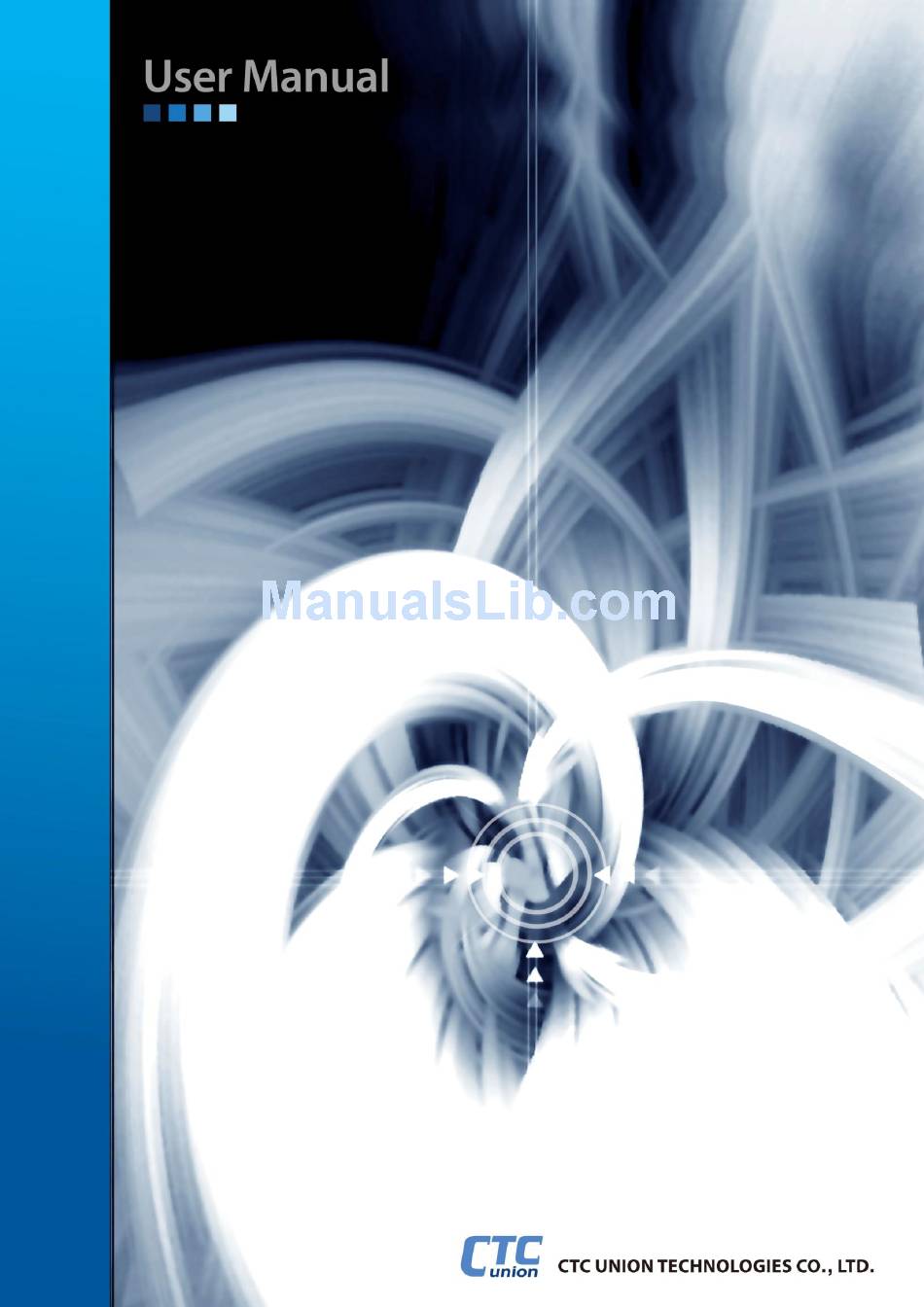

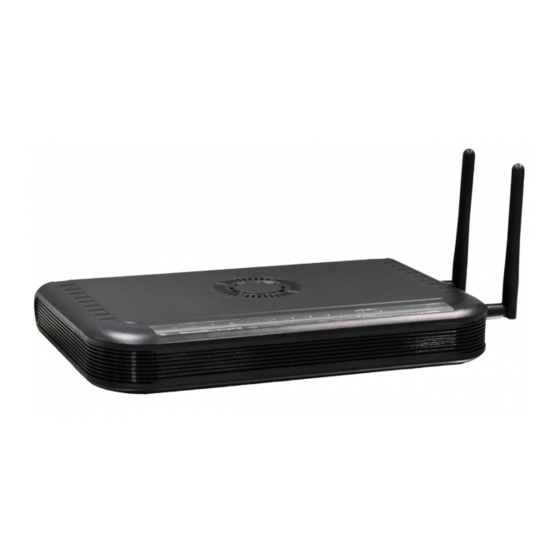

  • Page 1 GW-732FW Gigabit Fiber IAD with IEEE 802.11ac WiFi...
  • Page 2 LEGAL The information in this publication has been carefully checked and is believed to be entirely accurate at the time of publication. Our company assumes no responsibility, however, for possible errors or omissions, or for any consequences resulting from the use of the information contained herein. Our company reserves the right to make changes in its products or product specifications with the intent to improve function or design at any time and without notice and is not required to update this documentation to reflect such changes.
  • Page 3 Gigabit Ethernet Fiber IAD Gateway with IEEE 802.11ac WiFi User Manual Version 0.9 March 2015 2015 All Rights Reserved The contents of this document are subject to change without any prior notice.

  • Page 4: Table Of Contents

    Contents 1. Introduction ................................ 1 1-1 Product Overview ............................1 1-2 Hardware Description ..........................2 2. VoIP Wireless Gateway Web Configuration..................... 4 2-1 Status ................................5 2-1-1 Current Status ..........................5 2-1-2 RTP Packet Summary ........................5 2-1-3 System Information .......................... 6 2-1-4 Routing Table ...........................
  • Page 5 3. Configuring the VoIP Gateway through IVR ....................73 3-1 IVR (Interactive Voice Response) ......................73 3-1-1 IVR Functions Table: ........................74 3-2 IP Configuration Settings .......................... 75 3-2-1 Character Conversion Table: ......................76 4. Dialing Principles ............................. 77...

  • Page 6: Introduction

    Dual Band Wireless VoIP Gateway User’s Manual 1. Introduction 1-1 Product Overview The VoIP Gateway is designed to carry both voice and facsimile over the IP network. It uses the industry standard SIP call control protocol so as to be compatible with free registration services or VoIP service providers’ systems. As a standard user agent, it is compatible with all common Soft Switch and SIP proxy servers.

  • Page 7: Hardware Description

    Dual Band Wireless VoIP Gateway User’s Manual 1-2 Hardware Description Front Pannel Indicators Power: Power LED. A steady light indicates a proper connection to a power source. Prov./Alm.: A blinking light indicates the VoIP Gateway can not register with SIP Server or can not get the IP address.

  • Page 8: Rear Panel

    Dual Band Wireless VoIP Gateway User’s Manual Rear Panel WLAN Switch: Switch it to power on/off wireless feature. USB 1~2: Connect to a 3G USB dongle or a printer. LAN: 10/100/1000M Gigabit Ethernet. Connect to your Ethernet enabled computers using Ethernet cabling. WAN: 10/100/1000M Gigabit Ethernet.

  • Page 9: Voip Wireless Gateway Web Configuration

    Dual Band Wireless VoIP Gateway User’s Manual 2. VoIP Wireless Gateway Web Configuration The VoIP Gateway allows users to configure its settings using a web interface (Web UI). You can access the Configuration Menu by opening a web-browser (e.g., Internet Explorer or Netscape Navigator) and entering the factory default LAN IP address: 192.168.8.254.

  • Page 10: Status

    Dual Band Wireless VoIP Gateway User’s Manual 2-1 Status 2-1-1 Current Status Status → Current Status For Port Status, it includes if each port registers to Proxy successfully, the last dialed number, how many calls each port has made since the VoIP Gateway starts, etc. For Server Registration Status, it shows the registration status of DDNS, STUN and FXS Represent Number.

  • Page 11: System Information

    Dual Band Wireless VoIP Gateway User’s Manual 2-1-3 System Information Status → System Information...

  • Page 12: Routing Table

    Dual Band Wireless VoIP Gateway User’s Manual For WAN Port Information, it shows IP address, subnet mask, default gateway and DNS server. If you use PPPoE to obtain IP, you will know if the IP is obtained through this method. If IP address, subnet mask, default gateway is blank, it means that the VoIP Gateway does not obtain IP.

  • Page 13: Lan Client

    Dual Band Wireless VoIP Gateway User’s Manual 2-1-5 LAN Client The DHCP Clients table displayed LAN device that has already been assigned an address from VoIP Gateway. You can check if the DHCP client has obtain an IP address. Status → LAN Client...

  • Page 14: General Settings

    Dual Band Wireless VoIP Gateway User’s Manual 2-2 General Settings 2-2-1 Network operation mode IAD Gateway provides 2 network operation mode: Standard mode and Multiservice mode. 2-2-2 Standard WAN WAN (Wide Area Network) Settings are used to connect to your ISP (Internet Service Provider). The WAN settings are provided to you by your ISP and oftentimes referred to as "public settings".
  • Page 15 Dual Band Wireless VoIP Gateway User’s Manual General Settings → WAN DHCP: Select this option if your ISP (Internet Service Provider) provides you an IP address automatically. Cable modem providers typically use dynamic assignment of IP Address. The Host Name field is optional but may be required by some Internet Service Providers.
  • Page 16 Dual Band Wireless VoIP Gateway User’s Manual General Settings → WAN PPPoE: Select this option if your ISP requires you to use a PPPoE (Point-to-Point Protocol over Ethernet) connection. Enter the PPPoE Account, PPPoE Password and re-enter Password to confirm. General Settings →...
  • Page 17 Dual Band Wireless VoIP Gateway User’s Manual General Settings → WAN USB 3G: 3G/3.5G WISP. Enter Username, Password, Dial Number and APN to connect to Internet via 3G/3.5G WISP. Users could also select a configured WISP from the list and the gateway will fill necessary parameter automatically.

  • Page 18: Standard Lan

    Dual Band Wireless VoIP Gateway User’s Manual 2-2-3 Standard LAN General Settings → LAN LAN IP / LAN default Gateway: Enter the LAN IP address of the VoIP Gateway. It is also the default gateway for DHCP clients. Subnet Make: Enter the subnet mask for DHCP clients. Enable DHCP Server: This variable is to assign the IP address for the devices connected to LAN port of the VoIP Gateway.

  • Page 19: Multiservice Wan

    Dual Band Wireless VoIP Gateway User’s Manual 2-2-4 Multiservice WAN Multiservice WAN List shows the multi-WAN settings. 2-2-5 Multiservice LAN Multiservice LAN List shows the multi-LAN settings.
  • Page 20 Dual Band Wireless VoIP Gateway User’s Manual Below provide example for how to configure for Multiservice WAN/LAN Example 1: 4 VLANs for Internet Data, VoIP, IPTV and management VLAN. And IPTV STB connected at NAT-LAN port WAN setting: Step1: Select Network Operation Mode to “Multiservice Mode” Step2: Enable Virtual WAN and Configure 4VLANs for Internet Data, VoIP, IPTV and Management VLAN...
  • Page 21 Dual Band Wireless VoIP Gateway User’s Manual 2-1: Configure VALN ID 100 & 200 for Internet Data & VoIP service types 2-2: Configure VLAN ID 300 and enable “IGMP Uplink” function for IPTV service type 2-3: Configure VLAN ID 400 and enable WAN Access control for MGMT service type...
  • Page 22 Dual Band Wireless VoIP Gateway User’s Manual 4 * VLANs for Internet Data, VoIP, IPTV and management VLAN, and IPTV STB connected at WAN-LAN bridged port Configure Bridge VLAN ID 300 for IPTV and select LAN port to Untagged or Tagged Port Note: Bridge VLAN can set up to 16 lists.

  • Page 23: Sip

    Dual Band Wireless VoIP Gateway User’s Manual 2-2-6 SIP As there are various Proxy Server providers, according to RFC standard, it has designed the gateway to be compatible with them. If any registration problem occurs, please consult your Internet telephony Server Provider.
  • Page 24 Dual Band Wireless VoIP Gateway User’s Manual General Settings → SIP Each line registers to Proxy independently: Number: Enter the number, text or number and text in this field. It is the Caller ID for the called party when you make a VoIP call. If you register the VoIP Gateway to a SIP proxy server, then it should be the number that provided by SIP proxy server.
  • Page 25 Dual Band Wireless VoIP Gateway User’s Manual General Settings → SIP Proxy Server IP/Domain: Enter the IP address or URL (Uniform Resource Locator) of SIP proxy server or Soft Switch. Proxy Server Port: Enter the SIP proxy server’s listening port for the SIP in this field. Leave this field to the default if your VoIP Service Provider did not give you a server port number for SIP.
  • Page 26 Dual Band Wireless VoIP Gateway User’s Manual General Settings → SIP Outbound Proxy Support: Check the box to send all SIP packets to the destined outbound proxy server. An outbound proxy server handles SIP call signaling as a standard SIP proxy server would do. Further, it receives and transmits phone conversation traffic (media) between two communication parties.
  • Page 27 Dual Band Wireless VoIP Gateway User’s Manual For example (Example in Taiwan), If Server 1 is local VoIP Service Provider you can refer to Digit Map page for general settings. If Server 2 is global VoIP Service Provider (VoIP STUN, free to dial to some cities free charge) you can set individual dialing plan for VoIP STUN in Number Translation field.

  • Page 28: Sip Advanced

    Dual Band Wireless VoIP Gateway User’s Manual 2-2-7 SIP Advanced General Settings → SIP Advanced Listen Port UDP: Enter the VoIP Gateway’s listening port in this field. Leave it as default settings, unless it conflicts with ports used by other device in your network. RTP Starting Port UDP: Enter the starting port number or transmitting voice data among VoIP devices.
  • Page 29 Dual Band Wireless VoIP Gateway User’s Manual General Settings → SIP Advanced Session Expiration: This field will set the time that the VoIP Gateway will allow a SIP session to remain die (without traffic) before dropping it. Session Refresh Request: Select UPDATE or re-INVITE to send refresh requests to the Server. Session Refresher: This determines which side of an expired call session will initiate the session refresh.
  • Page 30 Dual Band Wireless VoIP Gateway User’s Manual General Settings → SIP Advanced VoIP Call Out Notification: Check the box to enable the function of playing a tone to notify user that the call is through VoIP. Enable Built-in Call Hold Music: Check the box to enable the function of playing music when receiving Call Hold request.
  • Page 31 Dual Band Wireless VoIP Gateway User’s Manual SIP Caller ID Obtaining: Select the part of the SIP packet from the VoIP Gateway to obtain Caller ID. There are several places where the Caller ID is located. Remote-Party-ID Display Name - It is located at SIP → Remote-Party-ID → Before [<sip:] Remote-Party-ID User Name - It is located at SIP →...

  • Page 32: Caller Id

    Dual Band Wireless VoIP Gateway User’s Manual 2-2-8 Caller ID General Settings → Caller ID FXS Caller ID Generation: DTMF – Sending Caller ID in DTMF signaling. FSK – Sending Caller ID in FSK signaling. FSK + TypeII – Send Caller ID in FSK signaling. As the phone set supports Call Waiting Caller ID that FXS will send third party’s number.

  • Page 33: Hot Line

    Dual Band Wireless VoIP Gateway User’s Manual 2-2-9 Hot Line General Settings → Hot Line Enable: Tick the check box to enable a line. If some lines are not used, disable them (Pause Function) to avoid unnecessary waiting when an incoming call is diverting to the line. Hot Line: Check to direct the call automatically to a pre-configured destination without any action when the FXS is off-hook.

  • Page 34: Line Settings

    Dual Band Wireless VoIP Gateway User’s Manual 2-2-10 Line settings General Settings→ Line settings Listening Volume: Use the drop-down menu to adjust the hearing (listening) volume. Speaking Volume: Use the drop-down menu to adjust the speaking volume. Tone Volume: Use the drop-down menu to adjust the tone volume. It will apply to all tones generated by the VoIP Gateway including Dial Tone, Ring Back Tone and Busy Tone.
  • Page 35 Dual Band Wireless VoIP Gateway User’s Manual General Settings→ Line settings Ring (Early Media) Time Limit[10 - 600secs]: Enter the timeout to cancel a call if no one answers the phone. Enable End of Digit Tone: Check the box to activate the function of playing a “Beep-Beep” tone to notify the user that the call is in progress.
  • Page 36 Dual Band Wireless VoIP Gateway User’s Manual General Settings→ Line settings FXS / FXO Impedance: Select different impedance from the drop-down menu. Drop Inactive Call: This feature is a call drop standard for a VoIP Gateway to determine whether or not to hang up the phone.

  • Page 37: Fax

    Dual Band Wireless VoIP Gateway User’s Manual 2-2-11 FAX General Settings → FAX Disable: Select it if you are not sending fax, but it is still accepted fax by the VoIP Gateway. T.38 Fax: Select it if you are using T.38 as the protocol for fax transmission. T.38 is used for reliable and efficient facsimile transmission over network.
  • Page 38 Dual Band Wireless VoIP Gateway User’s Manual FAX Detection Sensitivity：To set higher value to make VoIP Gateway to be more sensitive. General Settings → FAX High Speed Redundancy：Set redundancy packets for FAX image. It could repair FAX image for non-continuous packets lost. The higher redundancy the higher bandwidth required. Low Speed Redundancy：Set redundancy packets for FAX handshaking signaling.

  • Page 39: Calling Features

    Dual Band Wireless VoIP Gateway User’s Manual 2-2-12 Calling Features General Settings → Calling Features Do Not Disturb: Check the box to reject (busy tone played) incoming calls. Unconditional Forward: Check the box to forward incoming calls to the assigned “Forwarding Number” automatically.
  • Page 40 Dual Band Wireless VoIP Gateway User’s Manual Enable Call Feature Code Enable Call Feature Code: Check the box to enable the advanced function for Call Features, such as Call Pickup, Automatic Redial and Unattended transfer. Calling Feature Instructions: Call Hold: The call will be held after the FLASH button is pressed on the phone set. The VoIP Gateway will play music on hold (provided by your ITSP or VSP) to the remote end.

  • Page 41: Phone Book

    Dual Band Wireless VoIP Gateway User’s Manual Phone1 presses Flash then calls Phone3 (Phone2 is on hold) and Phone3 answers the call. Phone1 presses Flash and dial 3 to start the conference call. Note: The availability of a Three-Way call also depends on your VoIP network. Please also check with your service provider for these services.
  • Page 42 Dual Band Wireless VoIP Gateway User’s Manual Send record to CDR Server: Tick the check box to enable the call detail recording. CDR Server IP / Domain: Enter the IP address of the CDR server. Port: Enter the listen port of the CDR server. RADIUS: Tick the checkbox to enable RADIUS as database and enter the information of RADIUS needed.

  • Page 43: Wireless Settings

    Dual Band Wireless VoIP Gateway User’s Manual 2-3 Wireless Settings 2-3-1 Basic Settings Wireless Settings → Basic Settings Enable Wireless LAN Interface: Enable wireless basic settings on LAN interface. Wireless Network Name (SSID): SSID is the name of your wireless network. All wireless-equipped devices share the same SSID to communicate with each other.
  • Page 44 Dual Band Wireless VoIP Gateway User’s Manual Wireless Settings → Basic Settings Multiple AP: It is used for different level of clients. Such as different departments or guests. And you could assign different password for each SSID. Enable Wireless LAN Interface: Enable wireless basic settings on LAN interface. Wireless Network Name (SSID): SSID is the name of your wireless network.

  • Page 45: Advanced Settings

    Dual Band Wireless VoIP Gateway User’s Manual Channel Width: Wireless channel width for 802.11ac. Select 80 MH for higher speed. Broadcast SSID: Broad AP’s SSID for convent usage. To hid SSID for more security. Enable WMM: Wi-Fi Multimedia. It provides higher priority for multimedia stream to get better quality. 2-3-2 Advanced Settings This section introduces advanced configuration for the wireless access point.

  • Page 46: Security Settings

    Dual Band Wireless VoIP Gateway User’s Manual RF Output Power: You can adjust the percentage of power 100, 50, 25, 10, 5 of your VoIP Gateway to change the coverage of wireless network. Keep the default value, 100% to reach full range. 2-3-3 Security Settings Wireless Settings →...
  • Page 47 Dual Band Wireless VoIP Gateway User’s Manual WPA Cipher Suite: WPA Cipher Suite is used for the configuration of WPA or WPA2 Mixed. TKIP - TKIP is the security protocol used in WPA. The length of TKIP encryption is longer than WEP encryption that increases the complexity of decoding for crackers.
  • Page 48 Dual Band Wireless VoIP Gateway User’s Manual Wireless Settings → Security Settings Select the type of WPA (WPA, WPA2, WPA2 Mixed), choose the proper security mode according to your wireless network. WPA Authentication Mode: Select Enterprise (RADIUS). WPA Cipher Suite: WPA Cipher Suite is used for the configuration of WPA or WPA2 Mixed. TKIP - TKIP is the security protocol used in WPA.

  • Page 49: Access Control

    Dual Band Wireless VoIP Gateway User’s Manual 2-3-4 Access Control Wireless Settings → Access Control Disable: The VoIP Gateway does not response to any access rules. You are not allowed to make configuration changes on this page. Allow Listed: When Allow Listed is enabled, only those wireless clients whose MAC addresses are in the Access Control List have rights to connect to your Access Point.

  • Page 50: Wps

    Dual Band Wireless VoIP Gateway User’s Manual 2-3-5 WPS Wireless Settings → WPS It allows users establish wireless connect between VoIP Gateway and computers via WPS(Wireless Protect Setup) method. Example for setting Wireless profile via WPS method on Windows 7. Enter [Network and Sharing Center] Click [Set up a new connection or network] Click [Connect to the Internet]...
  • Page 51 Dual Band Wireless VoIP Gateway User’s Manual Click [Wireless] Select a Wireless AP. Click [OK] to start setup.
  • Page 52 Dual Band Wireless VoIP Gateway User’s Manual Enter the 8-digit PIN from VoIP Gateway label then click Next. Type network name(SSID) then click Next. Wait for Windows 7 setting up wireless network.
  • Page 53 Dual Band Wireless VoIP Gateway User’s Manual Configuration finished, you could connect to VoIP Gateway at present. You could also print security key of save this profile for another computer to add this wireless network manually. Note: VoIP Gateway supports WPS work with Windows○ Vista and Windows○...

  • Page 54: Advanced Settings

    Dual Band Wireless VoIP Gateway User’s Manual 2-4 Advanced Settings 2-4-1 Codec setting Advanced Settings→ Codec settings Jitter Buffer: Enter the jitter of receiving packets. Silence Detection / Suppression: Check the box to enable the silence packets and send less voice data (package) during the silent period while talking.

  • Page 55: Digit Map

    Dual Band Wireless VoIP Gateway User’s Manual 2-4-2 Digit Map Digit Map supports multiple dial plans which help users to arrange least cost route. Each Proxy Server has individual dial plan which combines the original feature of Digit Map and Speed Dial. You can use “?” or “%” in the column of Scan Code and VoIP Dial-out.
  • Page 56 Dual Band Wireless VoIP Gateway User’s Manual Advanced Settings → Digit Map Scan Code: Enter the digits for the VoIP Gateway to scan while user is dialing. VoIP Dial-out: Enter the actual dialing number rule for the VoIP Gateway to call through the Internet. User Dial Length: Enter the total number of digits that user dialed.
  • Page 57 Dual Band Wireless VoIP Gateway User’s Manual Methods of Digit Map: Method 1- Single mapping: Fill a short code into the Scan Code column, and enter the desired phone number into the VoIP Dial-out column. For example, Scan Code: 09 VoIP Dial-out: 0911888997 User Dial Length: 2 Route: VoIP...
  • Page 58 Dual Band Wireless VoIP Gateway User’s Manual For example, Scan Code: 0% VoIP Dial-out: 1805% User Dial Length: Disable Route: VoIP VoIP Route Profile: Route # 3 Pick up the handset and dial 0423456789. The VoIP Gateway will dial 1805423456789 and go through Internet first and follow Route # 3.

  • Page 59: Dtmf & Pulse

    Dual Band Wireless VoIP Gateway User’s Manual 2-4-3 DTMF & PULSE Advanced Settings → DTMF & PULSE Dial Wait Timeout: Enter the timeout duration after the user picks up the phone set. Inter Digits Timeout: Enter the timeout duration between the intervals of each key pressed. When exceeding the set timeout duration without entering further digits, the numbers entered will be dialed out.

  • Page 60: Cpt / Cadence

    Dual Band Wireless VoIP Gateway User’s Manual 2-4-4 CPT / Cadence Advanced Settings → CPT / Cadence CPT # 1 Enable Setting 1: The CPT has a set of parameter table. Please adjust the CPT based on the local PSTN or PBX settings and requirements. Advanced Settings →...

  • Page 61: Tr069

    Dual Band Wireless VoIP Gateway User’s Manual 2-4-5 TR069 TR069 allows operator to manage the VoIP Gateway with a TR069 standard protocol. Note: Fill in the parameters needed by your VoIP Service Provider. Please check with your VoIP Service Provider about the availability of these services. Advanced Settings →...
  • Page 62 Dual Band Wireless VoIP Gateway User’s Manual Password: Enter the ACS password. Connect Provision Server During Start Up: Check the box to connect to Provisioning Server when the VoIP Gateway is powered on or rebooted. Connect Provision Server Periodically: Check the box to connect to Provisioning Server periodically. Auto Provision Interval: Enter the time for auto provisioning.

  • Page 63: Caller Filter

    Dual Band Wireless VoIP Gateway User’s Manual 2-4-6 Caller Filter This function allows you to accept or reject any incoming call from the IP address listed in the filter rule. The call from the IP address of SIP proxy server is always accepted, despite Deny is selected or the IP address of SIP proxy server is not in the filter rule of Allow.

  • Page 64: Static Route

    Dual Band Wireless VoIP Gateway User’s Manual 2-4-7 Static Route Build static routes within an internal network. These routes will not apply to the Internet. Advanced Settings → Static Route Route: Destination network of the route. Route Mask: Subnet mask to apply on destination network. Next Hop IP: The next hop IP address to the specified network.

  • Page 65: Ddns

    Dual Band Wireless VoIP Gateway User’s Manual 2-4-8 DDNS Advanced Settings → DDNS Enable Dynamic DNS: Check the box to enable DDNS function. It is only necessary when the VoIP Gateway is set up behind an Internet sharing device that uses a dynamic IP address and does not support DDNS.

  • Page 66: Nat Traversal

    Dual Band Wireless VoIP Gateway User’s Manual 2-4-9 NAT Traversal If your VoIP Gateway is set up behind an Internet sharing device, you can select either the NAT or STUN protocol. Advanced Settings → NAT Traversal Enable(NAT Public IP): Check the box to use the IP address of the Internet sharing device if the VoIP Gateway is set up behind an Internet sharing device.

  • Page 67: Dos Protection Settings

    Dual Band Wireless VoIP Gateway User’s Manual 2-4-10 DoS Protection Settings Advanced Settings → DoS Protection Settings Enable DoS Prevention: Check the box to prevent DoS attacks from WAN. There are various types of DoS attacking. Leave settings in this field to the default if you are not familiar with it. 2-4-11 DMZ / ALG Advanced Settings →...

  • Page 68: Ip Filtering

    Dual Band Wireless VoIP Gateway User’s Manual DMZ Host IP Address: Enter the IP address of that computer as a DMZ Host with unrestricted Internet access. Note: Either this function or virtual server can be selected for use in accessing external services.

  • Page 69: Port Filtering

    Dual Band Wireless VoIP Gateway User’s Manual 2-4-13 Port Filtering Port filtering enables you to control all data that can be transmitted over routers. When the port used at the source end is within the defined scope, it will be filtered without transmission. Note: When the port used at the source end is within the limited scope, it will be filtered without transmission.

  • Page 70: Virtual Server

    Dual Band Wireless VoIP Gateway User’s Manual Remark: Enter comments 2-4-15 Virtual Server Enable users on Internet to access the WWW, FTP and other services from your NAT. It is also known as port forwarding. When remote users are accessing Web or FTP servers through WAN IP address, it will be routed to the server with LAN IP address Advanced Settings →...

  • Page 71: Tools

    Dual Band Wireless VoIP Gateway User’s Manual 2-5 Tools 2-5-1 Ping Test Use “Ping” to verify if a remote peer is reachable. Enter a remote IP address and click “Test” to ping the remote host. The result would be shown on Result Table Tools →...

  • Page 72: Stun Inquiry

    Dual Band Wireless VoIP Gateway User’s Manual 2-5-2 STUN Inquiry Use “STUN Inquiry” to detect your IP sharing device’s NAT type and communication between a STUN server and client. Tools → STUN Inquiry NAT Type: It shows the NAT type of your router. STUN Server IP/Domain: Enter the IP address or URL of the STUN server for query.

  • Page 73: System Settings

    Dual Band Wireless VoIP Gateway User’s Manual 2-6 System Settings 2-6-1 NTP System settings → NTP Automatically synchronize with Internet time servers: The VoIP Gateway should automatically sync up with time servers. First NTP time server: Select the desired domain name of a NTP server as first priority. Second NTP time server: Select the domain name of a NTP server as second priority.

  • Page 74: Login Account

    Dual Band Wireless VoIP Gateway User’s Manual 2-6-3 Login Account System settings → Login Account Note: There are two operating levels when entering the Web UI. Logging-in as the ADMIN allows you to change all settings. A Web UI USER only has access to some settings. Password: It is highly recommended that you create a password to keep your VoIP Gateway secure.

  • Page 75: Backup / Restore

    Dual Band Wireless VoIP Gateway User’s Manual 2-6-4 Backup / Restore Backup Configurations File System settings → Backup and Restore The current system settings can be saved as a file onto the local hard drive. Click the Backup Settings button to save your current settings to a file. Configuration File: It is to backup the all settings.

  • Page 76: System Log

    Dual Band Wireless VoIP Gateway User’s Manual 2-6-5 System Log System settings → System log Enable: Check the box to send event notification messages across IP networks to the Server. Server Address: Enter the System Log Server’s IP address. Port: Enter the System Log Server’s listening port. Leave this field to the default if your VoIP Service Provider did not provide you a server port number for System Log Server.

  • Page 77: Software Upgrade

    Dual Band Wireless VoIP Gateway User’s Manual 2-6-7 Software Upgrade The VoIP Gateway supports a software upgrade function from a remote server. Please consult your VoIP Service Provider for information about the following details. System settings → Software upgrade Upgrade Server: Select the upgrade type: TFTP, FTP, or HTTP. Software Upgrade Server IP: Enter the server’s IP address.

  • Page 78: Configuring The Voip Gateway Through Ivr

    Dual Band Wireless VoIP Gateway User’s Manual 3. Configuring the VoIP Gateway through IVR Preparation Connect the power supply, telephone set, telephone cable, and network cable properly. If a static IP is provided, confirm the correct IP settings of the WAN Port (IP address, Subnet Mask, and Default gateway).

  • Page 79: Ivr Functions Table

    Dual Band Wireless VoIP Gateway User’s Manual Save Settings When all setting procedures are completed, dial 509 (Save Settings) from phone keypad. Wait for about three seconds, you should hear a voice prompt “1 (one).” You can now hang up the phone and please reboot the VoIP Gateway to enable the new settings.

  • Page 80: Ip Configuration Settings

    Dual Band Wireless VoIP Gateway User’s Manual 3-2 IP Configuration Settings Static IP Settings Note: Complete static IP settings should include a static IP (option 1 under 114), IP address (111), Subnet Mask (112), and Default Gateway (113). Please contact your Internet Service Provider (ISP) if you have any question.

  • Page 81: Character Conversion Table

    Dual Band Wireless VoIP Gateway User’s Manual 3-2-1 Character Conversion Table: The table below provides a list of conversion codes. The first row (high-lighted) of each pair of the column lists the numbers, alphabets or symbols and the second row (high-lighted) of each pair of the column (“Input Key”) represents the codes to be entered for the corresponding numbers, alphabets or symbols.

  • Page 82: Dialing Principles

    VoIP Wireless Router User’s Manual 4. Dialing Principles The VoIP Gateway provides the registration for multiple VoIP Service Providers, and each VSP has a private digit map. Hence, the routing and number translation may vary. We use two part, Routing and Number Translation, to explain the dialing principle of the VoIP Gateway.
  • Page 83 VoIP Wireless Router User’s Manual Routing To achieve maximum flexibility, the number dialed will be looked up in several tables defined by the VoIP Gateway. If no match is found from Digit Map Table, it will then look up the number from another table and to the registered VSP.
  • Page 84 VoIP Wireless Router User’s Manual Start Enter a phone number (D#) Is (D#) Dial the number defined in Speed defined in Dial table? Speed Dial table Is (D#) defined in Extension table? Is (D#) defined in Phone Book table? Is (D#) defined in Phone Book Manager? Is (D#)
  • Page 85 VoIP Wireless Router User’s Manual This page is intentionally left blank.
