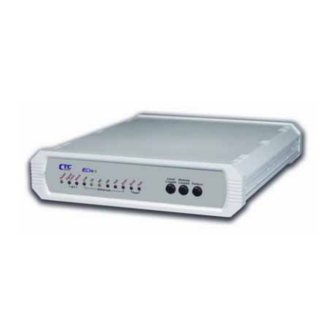

USER MANUAL

EOe-1
10/100Base Ethernet over G.703 Unframed E1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EOe-1 and is the answer not in the manual?

Questions and answers

Related Manuals for CTC Union EOe-1

Summary of Contents for CTC Union EOe-1

  • Page 1: User Manual

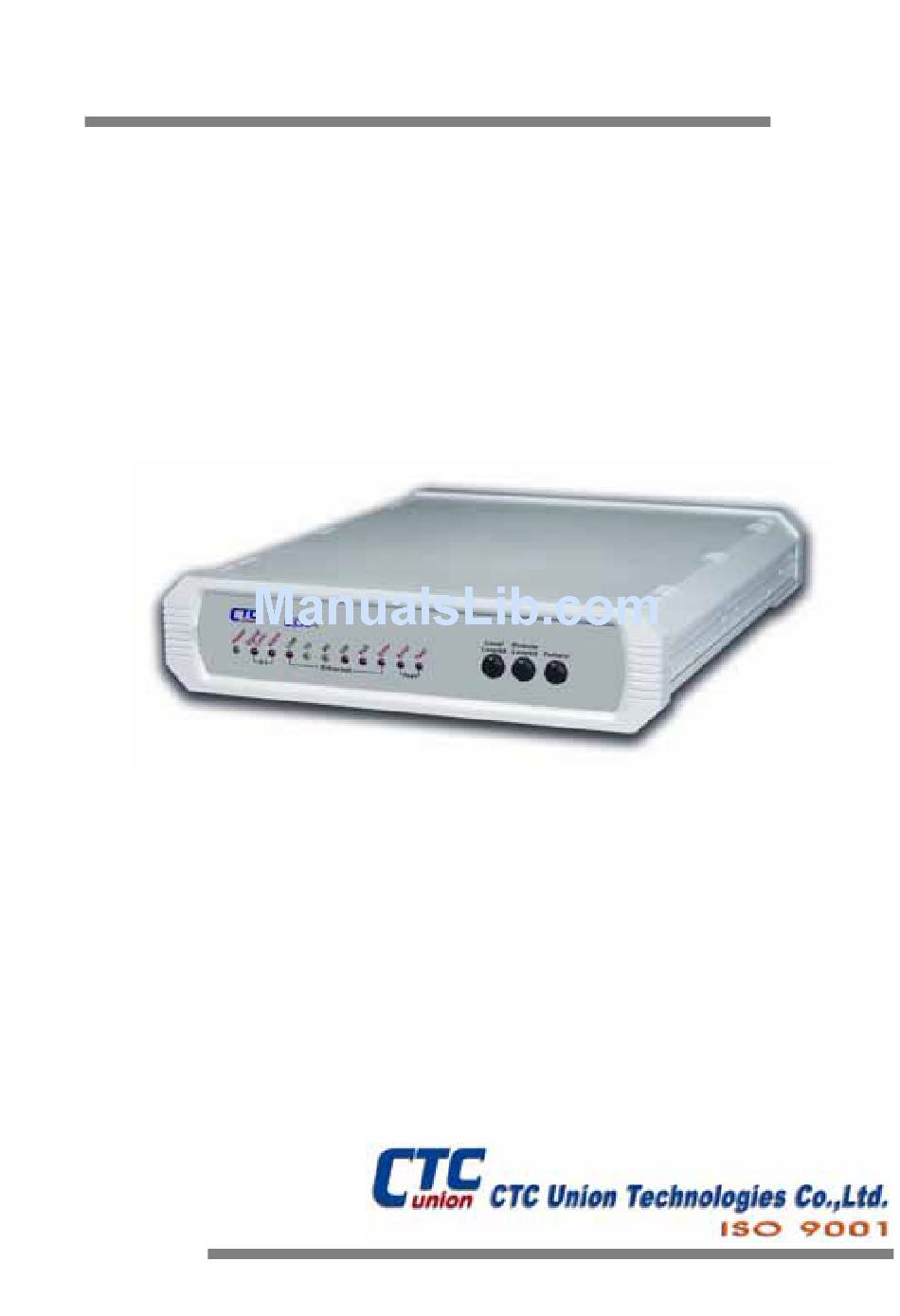

    USER MANUAL EOe-1 10/100Base Ethernet over G.703 Unframed E1...
  • Page 3 Neihu Technology Park 8F, No. 60 ZhouZi St. Neihu, Taipei, 114 Taiwan EOe-1 Ethernet over E1, User Manual Version 1.0 October 2003 First Printing Version 1.01 October 2004 Second Printing This manual supports the following models: EOe-1 Ethernet over E1...

  • Page 5: Table Of Contents

    ………………....1 1.1 General ……………………...………………………...… 1 1.2 Technical Specifications ………………………………… 2 1.3 E1 Signal Structure ……………………………………… 6 1.4 EOe-1 Capabilities ………………………………………. 7 1.5 System Timing Considerations …………………………. 8 1.6 Functional Description ………………………………….. 10 1.7 Typical System Applications …………………………… 11 Chapter 2. Installation …………………...…. 13 2.1 General …………………………………………………..
  • Page 6 Table of Contents Appendix A. DIP SW Setting EOe-1 ..……… 31 A.1 DIP SW1 Bridge, Ethernet and WAN Speed …..……… 31 A.2 DIP SW2 Memory Config and E1 Settings ..………….. 32 Appendix B. Interface Connections .……..… 33 B.1 E1 Line Connectors ……………………………………. 33 B.2 E1 Line Frame Ground …………………………………...

  • Page 7: Chapter 1. Introduction

    Both the E1 and Ethernet Bridge configuration settings require only two 8-pole DIP switches. Once configured and set, the EOe-1 requires no further adjustments. To skip the rest of the product introduction for the EOe-1 , please go directly to Chapter 2, "Installation".

  • Page 8: Technical Specifications

    Chapter 1. Introduction 1.2 Technical Specifications E1 link Framing Unframed Bit Rate 2,048 Kbps Line Code HDB3 Line Impedance 75 Ohms (BNC coaxial) 120 Ohms (RJ-48 twisted pair) Relative Receive Level 0 to -43dB "Pulse" Amplitude Nominal 2.37V+/-10% for 75 ohms Nominal 3.00V+/-10% for 120 ohms "Zero"...

  • Page 9: Specifications

    Chapter 1. Introduction Ethernet Bridge Features 10BASE-T/100BASE-TX, Full Duplex or Half Duplex HP Auto-MDI/MDIX detects and corrects crossed cable IEEE 802.3x flow control Real-time filtering with 256 address tables Automatic address learning, aging and deletion after 5 minutes Up to 340 packet-buffering capacity Forwarding and filtering rate at WAN speed with throughput latency of 1 frame.

  • Page 10: Led Indicators

    Chapter 1. Introduction Diagnostics Test Switches/Diagnostics Local loop back Remote loop back Test pattern / generator LED indicators Power Green Power Signal Loss Red E1 link signal loss Alarm E1 link alarm, includes: BPV error / All ones(AIS) Link Green Ethernet link is good Green Transmit data on Ethernet...

  • Page 11: Power Supply

    Chapter 1. Introduction Power supply Voltage 90~250VAC (universal AC model) 18~72VDC (universal DC model) Frequency 47 to 63 Hz for AC Power consumption 10 Watts Fuse 0.5A slow blow for AC model no fuse in DC model Environment Temperature 0-50C / 32-122F (operation) Humidity 0 to 90% non-condensing...

  • Page 12: E1 Signal Structure

    Chapter 1. Introduction 1.3 E1 signal structure The E1 line operates at a nominal rate of 2.048Mbps. The data transferred over the E1 line is transmitted transparently as a bit stream in Unframed E1 mode. E1 line signal The basic E1 line signal is coded using the Alternate Mark Inversion (AMI) or HDB3 rule.

  • Page 13: Eoe-1 Capabilities

    AMI coding. HDB3 coding. E1 framing formats The EOe-1 supports only Unframed E1 format. WAN data rates The EOe-1 supports WAN channel rates of 2.048M, 1.024M, 512K, 256K, 128K, 64K, 32K, and 16Kbps and is hardwired to a synchronous Ethernet Bridge.

  • Page 14: System Timing Considerations

    The EOe-1 E1 link receive path always operates on the receive clock. The EOe-1 recovers the receive clock from the received E1 link data signal. The source of the EOe-1 E1 link transmit clock can be selected by the user.

  • Page 15: Internal Timing

    Chapter 1. Introduction • Internal timing: The EOe-1 E1 link transmit clock is derived from the internal clock oscillator. This timing mode is necessary in point- to-point applications over leased line. In this case, one EOe-1 must use the internal oscillator while the other must operate from the recovered clock.

  • Page 16: Functional Description

    The EOe-1 is capable of performing local and remote loop back. The operator at either end of the line may test both the EOe-1 and the line in the loop back mode. The loop back is controlled by a manual push-button switch.

  • Page 17: Typical System Applications

    Chapter 1. Introduction 1.7 Typical System Applications General The EOe-1 is not capable of fractional E1 operation and should be used where only an unframed, transparent 2.048Kbps transmission is available or required. In the following application, the EOe-1 is connected in a point-to-point application.
  • Page 18 Chapter 1. Introduction This page left blank intentionally.

  • Page 19: Chapter 2. Installation

    EOe-1 to the tabletop. 2.4 Electrical Installation Power connection AC power is supplied to the EOe-1 through a standard 3- prong IEC receptacle. (Refer to Figure 2.1) The EOe-1 should always be grounded through the protective earth lead of the...

  • Page 20: Rear Panel Connectors

    The power cable must be disconnected before removing or replacing fuses. Rear panel connectors The interface connectors, located on the rear panel of the EOe-1 (Refer to Figure 2.1), incorporate two BNC Coax and RJ-45 connectors. (Appendix B provides detailed information on the interface connectors).
  • Page 21 Chapter 2. Installation E1 Line BNC coax connectors The pin assignment for BNC connector is as follows: Pin: Function: Tx Center TTIP (Transmit data out) Tx Sleeve TRING (Transmit data out) Rx Center RTIP (Receive data in) Rx Sleeve RRING (Receive data in) RJ-45 E1 Connector The pin assignment for the RJ-45 connector is as follows: Pin:...

  • Page 22: Dip Switches And Jumper Settings

    Chapter 2. Installation 2.5 DIP Switches & Jumper Settings Caution To avoid accidental electric shock, disconnect the EOe-1 power cord before opening the cover. Access inside the equipment is only permitted by authorized and qualified service personnel. Procedure Turn power OFF, Disconnect the power cord from the AC outlet.
  • Page 23 Chapter 2. Installation Table 2.1 Item Function Possible Settings Set Place Factory Setting Sets Ethernet MAC filtering On=filtered or Off=repeater DIPSW1-1 repeater Sets 802.3x Flow Control On=enabled or Off=disabled DIPSW1-2 disabled Sets Auto negotiation On=manual or Off=auto DIPSW1-3 auto Sets Ethernet Full/Half Duplex On=half or Off=Full DIPSW1-4 Full...

  • Page 24: Rack Mount Installation

    Chapter 2. Installation 2.6 Rack Mount Installation All Standalone/Rack Series units have the option of adding standard EIA 19" rack mount capability. Two rack mount options provide for either mounting a single unit (half space) in a rack or for mounting two units in tandem (full space).
  • Page 25 Chapter 2. Installation In order to save rack mount space, units may be mounted in tandem. Please refer to the following drawing examples for this application. Figure 2.3: Tandem Units Mounting (Exploded) Figure 2.4: Tandem Units Mounting Detail The tandem kit includes two (2) rack mount brackets, one (1) each of inner and outer central mounting brackets, twenty (20) 3x8mm self-tapping screws, and four (4) #12-24x0.5"...
  • Page 26 Chapter 2. Installation This page left blank intentionally.

  • Page 27: Chapter 3. Operation

    EOe-1. 3.2 Controls and Indicators All controls (push-button switches) and LED indicators are located on the EOe-1 front panel. Depress a push-button to activate (turn ON) the corresponding control. Release the push- button to deactivate (turn OFF) the control.
  • Page 28 Item Control Switch Function Local Loopbk The local loop back switch causes the local EOe-1 to loop received E1 data to its transmitter. Remote Loopbk The remote loop back switch causes the remote EOe-1 to loop received E1 data to its transmitter.

  • Page 29: Operating Procedure

    • Diagnostic loops are required. The EOe-1 is turned on when its AC power cord (or central office DC power) is connected to an AC power outlet (or the DC input connections) and the power switch is turned to the ON position.
  • Page 30 Chapter 3. Operation Refer to Chapter 4 for the operation of the front panel push- button switches. Their usage is explained under the "Loop Back Tests" on page 25. The rest of this page was left blank intentionally.

  • Page 31: Chapter 4. Test & Diagnostics

    The loop back test buttons (Local Loopbk and Remote Loopbk) and the LED indicators built into the EOe-1 allow for rapid checking of the EOe-1 and the E1 line. Before testing the operation of the data system equipment and their line circuits, ensure that all units are turned on, connected properly and are configured correctly.
  • Page 32 Chapter 4. Test & Diagnostics In this example, both units at the ends of the E1 link have their pattern generators enabled. Figure 4.1 BERT operation...

  • Page 33: Local Loop Back

    This test is activated by depressing the "Local Loopbk" button. This test checks the performance of the EOe-1 and the connections between them. This test consists of looping the receive E1 signal back to the remote EOe-1 . (see Figure 4.2): Figure 4.2 Local loop back...

  • Page 34: Remote Loop Back

    This test is activated by depressing the "Remote Loopbk" push button. The test checks the performance both of the local and the remote EOe-1 units, as well as their interconnecting lines. The remote digital loop back test consists of providing a loop back at the remote EOe-1 (see Figure 4.3).
  • Page 35 Chapter 4. Test & Diagnostics Loop back test notes: Use this method to quick test a standalone unit; With the E1 timing source set to internal oscillator, connect the E1 Tx to E1 Rx with a single coaxial cable. Press the Pattern switch. The E1 Tx and Rx circuits will be tested.
  • Page 36 Chapter 4. Test & Diagnostics Most Ethernet link problems occur when trying to connect to older, legacy Ethernet equipment. Unless it can be confirmed that the connecting equipment supports auto-negotiation or what is sometimes referred to as "n-way" connections, it is recommended to disable the auto-negotiation feature and manually set the speed and duplex settings.

  • Page 37: Appendix A. Dip Sw Setting Eoe-1

    Appendix A. DIP SW. Setting EOe-1 A.1 DIP SW1 Bridge, Ethernet and WAN Speed State Function Description Remarks Disable filtering (repeater mode) Enable MAC filtering (Bridge mode) Disable 802.3x flow control Enable 802.3x flow control Ethernet Auto Negotiation Ethernet manual setting...

  • Page 38: Dip Sw2 Memory Config And E1 Settings

    Appendix A. DIP SW. Setting EOe-1 A.2 DIP SW2 Memory Configuration and E1 Settings State Function Description Remark Memory Configuration Memory Buffer: LAN to WAN 308 packets WAN to LAN 32 packets Memory Buffer: LAN to WAN 170 packets WAN to LAN 170 packets...

  • Page 39: Appendix B. Interface Connections

    Appendix B. Interface Connections B.1 E1 Line Connectors BNC connector definition Conn. Designation Direction Function Description Center TTIP From EOe-1 Transmit data ↔ Sleeve TRING Signal return Center RTIP To EOe-1 Receive data ↔ Sleeve RRING Signal return Table B.1 E1 BNC connector pin allocation...

  • Page 40: E1 Line Frame Ground

    Appendix B. Interface Connections B.2 E1 Line Frame Ground To disable Frame Ground (Chassis) connections from the E1 signal carrying lines, remove the jumper on the JP1 header, located close to the RJ-45 E1 connector. Signal line frame ground should only be connected at one end of the E1 line to avoid ground loops and ground potential differences between the each end of the line.

  • Page 41: Technical Inquiry Form

    Technical Inquiry Form CTC Union Technologies Inc Fax:(886)2 27991355 Tel:(886)2 26591021 Attn : Customer Support Department E-mail:info@ctcu.com From Company: Name: Tel: ( Fax:( MODEL: EOe-1 ACTIVITY: As attached in DIP switch setting table (next page) System Configuration Drawing: Question:...
  • Page 42 Technical Inquiry Form MODEL No.: EOe-1 Please fill in the DIP switches configuration with ' ' marks into the following table. Send it to us by fax, and we will reply to you immediately. Your Setting CTC Suggestion SW NO.
  • Page 44 CTC Union Technologies Co., Ltd. Far Eastern Vienna Building (Neihu Technology Park) 8F, No. 60 ZhouZi St. Neihu, Taipei, Taiwan Phone:(886) 2.2659.1021 Fax:(886) 2.2799.1355 info@ctcu.com http://www.ctcu.com E-mail:...
