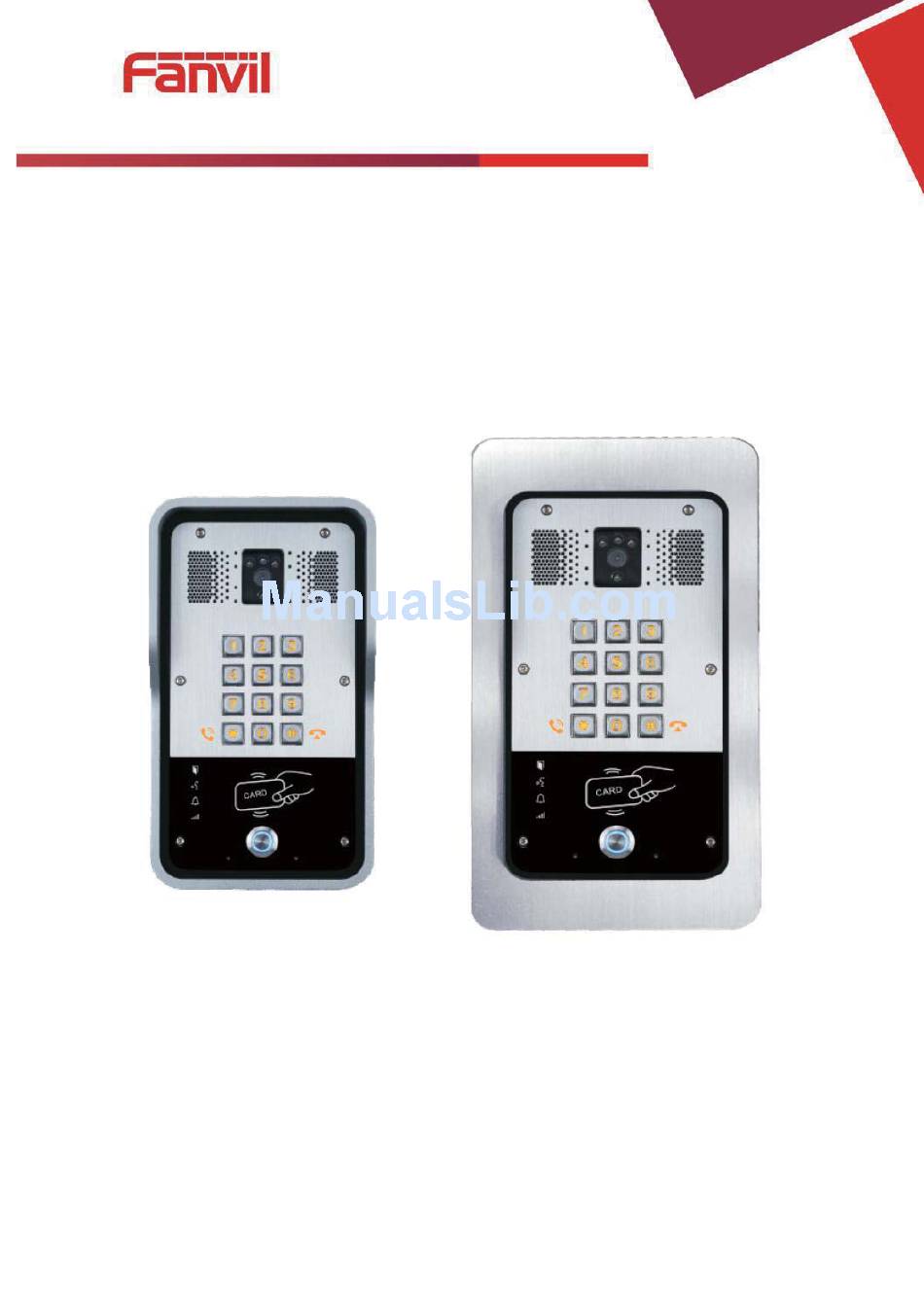

  • Page 1 IP Video Door Phone User Manual Wall mounted In-wall...
  • Page 2 Safety Notices 1. Please use the specified power adapter. If you need to use the power adapter provided by other manufacturers under special circumstances, please make sure that the voltage and current provided is in accordance with the requirements of this product, meanwhile, please use the safety certificated products, otherwise may cause fire or get an electric shock.

  • Page 3: Table Of Contents

    Directory PRODUCT INTRODUCTION ......................5 1. A ......................5 PPEARANCE OF THE PRODUCT 2. D ............................ 6 ESCRIPTION B. START USING ............................ 7 1. C ......................... 7 ONFIRM CONNECTED 1) Power port ..........................7 2) Electric-lock and indoor switch port ................... 7 3) Driving mode of electric-lock(Default in active mode) ..............
  • Page 4 a) FUNCTION KEY ........................25 b) MEDIA ..........................27 c) DND ............................. 29 d) FEATURE ..........................30 e) MCAST ..........................31 Action URL ........................... 34 SAFEGUARDING (Only fully functional version support this feature) ........34 DOOR PHONE ........................37 a) DOOR PHONE ........................37 b) DOOR CARD .........................

  • Page 5: Product Introduction

    A. Product introduction I31 is a full digital network door phone its core part adopt mature VoIP solution(Broadcom chipset), stable and reliable performance, Hands-free adopting digital full-duplex mode, Voice loud and clear, video clear, generous appearance, solid durable, easy for installation, comfortable keypad, low power consumption.

  • Page 6: Description

    2. Description Buttons and icons Description Function Numeric keyboard Input password to open the door or calls. Can be set to a variety of functions, in order to programmable keys meet the needs of different occasions induction zone RFID induction area Door unlocking: On Lock Status Door locking: Off...

  • Page 7: Start Using

    B. Start Using Before you start to use equipment, please make the following installation: Confirm connected Confirm whether the equipment of the power cord, network cable, electric lock control line connection, the startup is normal. (Check the network state of light) 1) Power port Power supply ways: 12v/DC or POE.

  • Page 8: Wiring Instructions

    4) Wiring instructions NO: Normally Open Contact. COM: Common Contact. NC: Normally Close Contact. Driving Mode Driving Mode Jumper port Connections Active Passive √ √ √ √ √ √ √ √ √ √...

  • Page 9: Quick Setting

    Quick Setting The product Provide a complete function and parameter setting, users may need to have the network and SIP protocol knowledge for understanding the meaning represented by all parameters. In order to let equipment users can quickly enjoy the high quality speech brought by the IP Phone services and low cost advantage, we especially lists the basic and must set options in this section, which let users can real-time started without understanding complex SIP protocols.

  • Page 10: Basic Operation

    C. Basic operation 1. Answer a call When calling come, the device automatically answer, in cancel automatic answer and settings automatic answer time, will hear the bell in the set time, automatic answer after a timeout. 2. Call Configuration shortcut (key1) as hot key and setup a number, then press shortcut keys can call the configured number.

  • Page 11: Page Settings

    Access code input correct prompt sowing sirens prompt access control and the remote user, input error by short low frequency chirp. Password successfully by high-frequency sirens sound prompt, input error is short by high frequency chirp. When the door opened by playing sirens sound prompt. D.

  • Page 12: Configuration Via Web

    3. Configuration via WEB (1) BASIC a) STATUS Status Field Name Field Name Shows the configuration information for WAN port, including connection mode of Network WAN port (Static, DHCP, PPPoE),MAC address, IP address of WAN port Accounts Shows the phone numbers and registration status for the 2 SIP LINES. b) WIZARD...

  • Page 13: C) Language

    Wizard Field Name Explanation Select the appropriate network mode. The equipment supports three network modes: Static IP mode The parameters of a Static IP connection must be provided by your ISP. In this mode, network parameter information will be obtained automatically from a DHCP mode DHCP server.

  • Page 14: D) Time&Date

    d) TIME&DATE Set the time zone and SNTP (Simple Network Time Protocol) server on this page to automatically obtain time and daylight saving time, manual time and date entry are also done on this page. Time&Date Field Name Explanation System Current Time Display the current time Simple Network Time Protocol (SNTP) Settings Enable SNTP...

  • Page 15: Network

    (2) NETWORK a) WAN Field Name Explanation WAN Status Active IP address The current IP address of the equipment Current subnet The current Subnet Mask mask Current IP The current Gateway IP address gateway MAC address The MAC address of the equipment...
  • Page 16 Field Name Explanation WAN Settings Enable Vendor Enable or disable Vendor Identifier Identifier Vendor Identifier Configure display Vendor Identifier Select the appropriate network mode. The equipment supports three network modes: Network parameters must be entered manually and will not change. All parameters Static are provided by the ISP.

  • Page 17: B) Qos&Vlan

    Field Name Explanation Service port Settings Web Server Specify Web Server Type – HTTP or HTTPS Type Port for web browser access. Default value is 80. To enhance security, change this from the default. Setting this port to 0 will disable HTTP access. HTTP Port Example: The IP address is 192.168.1.70 and the port value is 8090, the accessing address is http://192.168.1.70:8090.
  • Page 18 Chart 2 shows an example with two VLANs indicated by red and blue. In this example, frames broadcast from Port 1 will only go to Port 2 since Ports 3 and 4 are in a different VLAN. VLANs can be used to divide a network by restricting the transmission of broadcast frames.

  • Page 19: C) Web Filter

    Field Name Explanation Quality of Service (QoS) Settings Enable DSCP Enable or Disable Differentiated Services Code Point (DSCP) Audio RTP DSCP Specify the value of the Audio DSCP in decimal SIP DSCP Specify the value of the SIP DSCP in decimal WAN Port VLAN Settings Enable WAN Port Enable or Disable WAN Port VLAN...

  • Page 20: D) Security

    d) SECURITY Field Name Explanation Update Security Select the security file to be updated. Click the Update button to update. File Delete Security Select the security file to be deleted. Click the Delete button to Delete. File SIP TLS Files Show SIP TLS authentication certificate.
  • Page 21 Field Name Explanation Basic Settings (Choose the sip line to configured) Shows registration status. If the registration is successful will display has been Status registered, not successful display not registered, the wrong password is displayed 403 errors, account number failure display timeout. Server Address SIP server IP address or URI.
  • Page 22 Field Name Explanation Advanced SIP Settings Proxy Server SIP proxy server IP address or URI, (This is normally the same as the SIP Registrar Address Server) Proxy Server Port SIP Proxy server port. Normally 5060. Proxy User SIP Proxy server account. Proxy Password SIP Proxy server password.

  • Page 23: B) Stun

    Field Name Explanation Transport Configuration using the transport protocol, TCP, TLS or UDP, the default is UDP. Protocol Enable Rport Enable/Disable support for NAT traversal via RFC3581 (Rport). Enable /disable registration with authentication. It will use the last authentication Keep field which passed authentication by server.
  • Page 24 STUN Field Name Explanation STUN NAT Traversal Shows whether or not STUN NAT Transversal was successful. Server Address STUN Server IP address Server Port STUN Server Port – Default is 3478. STUN blinding period – STUN packets are sent at this interval to keep the NAT Binding Period mapping active.

  • Page 25: Intercom

    (4) INTERCOM a) FUNCTION KEY 1-4 programmable key in phone software (depend on hardware), you can configurate different feature on each key. You can ref to below indications for each feature. default is NA, means without any feature settings. Key Event Settings Set the key type to the Key Event.
  • Page 26 DSS key type Number Line Subtype Usage In Speed dial mode, Fill the with can define The SIP Speed Dial called account whether this call is allowed to be hang up Hot Key party’s SIP by re-press the speed dial corresponding account or lines...

  • Page 27: B) Media

    operation mechanism Device through the DSS Key configuration of multicast address and port and started coding; set by WEB to monitor the multicast address and port; device sends a multicast, listens to the address of the device can receive the multicast content. calling configuration The call is already exists, and three party or initiated multicast communication, so it will not be able to launch a new multicast call.
  • Page 28 Field Name Explanation DTMF Payload The RTP Payload type that indicates DTMF. Default is 101 Type AMR Payload Set the AMR Payload type Numerical based on between 96-127. Type ILBC Payload Set the ILBC Payload type Numerical based on between 96-127. Type ILBC Payload Set the ILBC payload length.

  • Page 29: C) Dnd

    Field Name Explanation RTP Control Protocol(RTCP) Settings CNAME user Set CNAME user CNAME host Set CNAME host Sound Update Choose the ring tone files and then click update to apply Sound Delete Delete the ring tone file Sound Settings Set the ring tong files format is .mp3 and .wav c) DND Field Name Explanation...

  • Page 30: D) Feature

    d) FEATURE Feature Field Name Explanation Feature Settings Ban Outgoing If enabled, no outgoing calls can be made. Speed Dial Action Default is Speed Dial Hand-down function Enable Telnet Enable or disable Telnet Select your Tone Standard configuration signal sound. Enable Intercom If enabled, mutes incoming calls during an intercom call.

  • Page 31: E) Mcast

    e) MCAST Using multicast functionality can be simple and convenient to send notice to each member of the multicast, through setting the multicast key on the device, sending multicast RTP stream to pre-configured multicast address. By on the device configuration monitoring multicast address, listen to and play the group multicast address send RTP stream.
  • Page 32 Page determines the priority equipment current in multicast session, how to deal with the new receiving multicast RTP stream, enabling the Page switch priority, the device will automatically ignore the low priority of multicast RTP stream, receive priority multicast RTP stream, and keep the current multicast session in state;...
  • Page 33 The purpose of setting monitoring multicast "group 1" or "2" or "3" launched a multicast call. All equipment has one or more common non multicast communication. When you set the Priority for the disable, multicast any level will not answer, multicast call is rejected. when you set the Priority to a value, only higher than the priority of multicast can come in, if you set the Priority is 3, group 2 and group 3 for priority level equal to 3 and less than 3 were rejected, 1 priority is 2 higher than ordinary call priority device can answer the multicast message at the same...

  • Page 34: F) Action Url

    f) Action URL Action URL Settings URL for various actions performed by the phone. These actions are recorded and sent as xml files to the server. Sample format is http://InternalServer /FileName.xml (5) SAFEGUARDING (Only fully functional version support this feature)
  • Page 35 Security Settings Field Name Explanation Input settings Input 1 Open / Close Input port1 When choosing the low level trigger (closed trigger), detect the input port 1 (low level) closed trigger. Trigger Mode When choosing the high level trigger (disconnected trigger), detect the input port 1 (high level) disconnected trigger.
  • Page 36 Field Name Explanation Received the terminal equipment to send the DTMF password, if By duration correct, which triggers the corresponding output port (The Port level time change, By < Output Duration > control) Remote DTMF During the call, receive the terminal equipment to send the DTMF trigger By Calling password, if correct, which triggers the corresponding output port (The...

  • Page 37: Door Phone

    The call will be ended automatically when time up. 120 seconds Remote Remote door unlocking password. Password Local door unlocking password via keypad, the default password Local Password 6789 length is 4. i31 Video Sip Door Description Device description displayed on IP scanning tool software. phone...
  • Page 38 Field Name Explanation Initial Value Enable Access Table: enter <Access Code> for opening door during Enable Access calls. Enable Table Disable Access Table: enter <Remote Password> for opening door during calls. <Primary /Secondary>mode allow system to call primary extension first, if there were no answer, it would cancel the call and then call Hot Key Dialed secondary extension automatically.

  • Page 39: B) Door Card

    b) DOOR CARD Door Card Field Name Explanation Door Card Table Index The serial number of has been issuer cards. Name The name of has been issuer cards. The card number of has been issuer cards. (Note: The card is not registered in the remote access list is unable to open the door.) Issuing Date The issuing date of has been issuer cards.

  • Page 40: C) Door Access

    Administrator Table The show admin card the ID, Date and Type. Add Administrator ID: admin card the card number. Type: Issuer and Revoking. Entrance guard in normal state, brush card(issuing card) entrance guard into the issuing state, and then brush to add a card, the card is added to the database, add swipe again after card(issuing card) entrance guard returned to normal.
  • Page 41 Field Name Explanation Access Table According to entrance guard access rules have been added, can choose single or multiple rules on this list to delete operation. Add Access Rule You can add new access rules, or select an existing project within the list to modify Name(necessary) User name Department Card holder's department...

  • Page 42: D) Door Log

    d) DOOR LOG According to open event log, can record up to two hundred thousand open event, after more than cover the old records. Right click on the links to select save target as the door log can export CSV format. Field Name Explanation Door Opening Log...

  • Page 43: Maintenance

    (7) MAINTENANCE a) AUTO PROVISION The equipment supports PnP, DHCP, and Phone Flash to obtain configuration parameters. They will be queried in the following order when the equipment boots. DHCP option → PnP server → P hone Flash Field Name Explanation Auto Provision Settings Show the current config file’s version.
  • Page 44 Field Name Explanation Common Config Encryption key for common configuration file Encryption Key Download Fail Download failed and check times Check Times Save Auto Save the auto provision username and password in the phone until the server url Provision changes Information Download CommonConfig...

  • Page 45: B) Syslog

    Field Name Explanation 1. Disable – no update Update Mode 2. Update after reboot – update only after reboot. 3. Update at time interval – update at periodic update interval TR069 Settings Enable TR069 Enable/Disable TR069 configuration Enable TR069 Enable or disable TR069 Warning Tone Warning Tone ACS Server Type Select Common or CTC ACS Server Type.

  • Page 46: C) Config

    Level 5: notice; It is the normal but significant condition. Level 6: Informational; It is the normal daily messages. Level 7: debug; Debug messages normally used by system designer. This level can only be displayed via telnet. Field Name Explanation System log settings Server Address System log server IP address.

  • Page 47: D) Update

    Field Name Explanation Save Save the current equipment configuration. Clicking this saves all configuration changes and makes them effective immediately. Configuration Backup Save the equipment configuration to a txt or xml file. Please note to Right click on the choice and then choose “Save Link As.” Configuration Reset Content Click the "clear"...

  • Page 48: E) Access

    e) ACCESS Through this page, the user can accord need to add and remove users, can modify existing user permissions. Field Name Explanation User Settings User shows the current user name Show the user level; admin user can modify the configuration. General user can only User level read the configuration.

  • Page 49: Logout

    (8) LOGOUT Click <Logout> from the web, visit next time when need to enter your user name and password.

  • Page 50: Appendix

    E. Appendix 1. Technical parameters Communication protocol SIP 2.0(RFC-3261) Main chipset Freescale i.MX 6Quad DSS key materials Stainless steel DSS Key 1 or 2 Numeric keyboard Support Audio amplifier Volume control Adjustable Full duplex speakerphone Support (AEC) Audio DTMF TYPE In-band, Out-of-band(RFC 2833), SIP INFO wideband speech code G.722...

  • Page 51: Basic Functions

    2. Basic functions 2 SIP Lines PoE Enabled Full-duplex speakerphone (HF) Numeric keypad (Dial pad or Password input) Intelligent DSS Keys (Speed Dial/intercom etc) Wall mounted / In-wall Special integrated noise reduction module Dual microphone Omnidirectional voice pickup Integrated RFID Card reader 1 indoor switch interface 1 electric lock relay Anti-tamper switch...

  • Page 52: Other Instructions

    F. Other instructions 1. Open door modes Local 1) Local Password Set <Local Password> (the default is "6789") via DOOR PHONE\DOOR PHONE as above. Use the device's keypad to input password and "#" key, then the door will be unlocked. 2) Private access code Set <Add Access Rule\Access Code>...

  • Page 53: Management Of Card

    Management of card Add Administrator There are 2 types of Administrator cards: issuer used for adding cards, revocation used for deleting cards. 1) Add<Issuer admin card > Input a card’s ID, selected <Issuer> in the types and Clicked <Add>, you can add Issuer admin card. 2) Add<Revocation admin card>...
  • Page 54 3) Use new card to touch card reader induction area, and then you might hear the confirmed indication tone from the device. Repeat step 3 to add more cards. 4) In web page <Door card\card reader Settings > option, select <normal> function. 5) Click <Apply>, Card Reader would be back to the Normal status.
  • Page 55 Delete user cards Method 1: used to batch delete cards for starters. 1) In web page <Door card →Card Reader Setting> option, select <Card revoking>. 2) Click <Apply>, Card Reader would be entered the revoking status. 3) Use card to touch card reader induction area, and you might hear the card reader confirmed indication tone.
