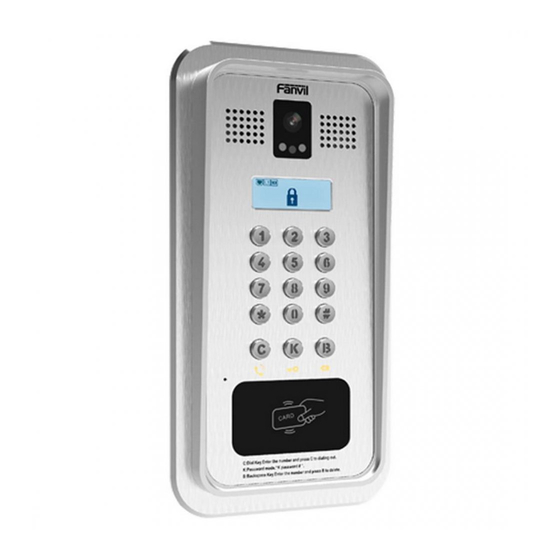

Summary of Contents for Fanvil i33V

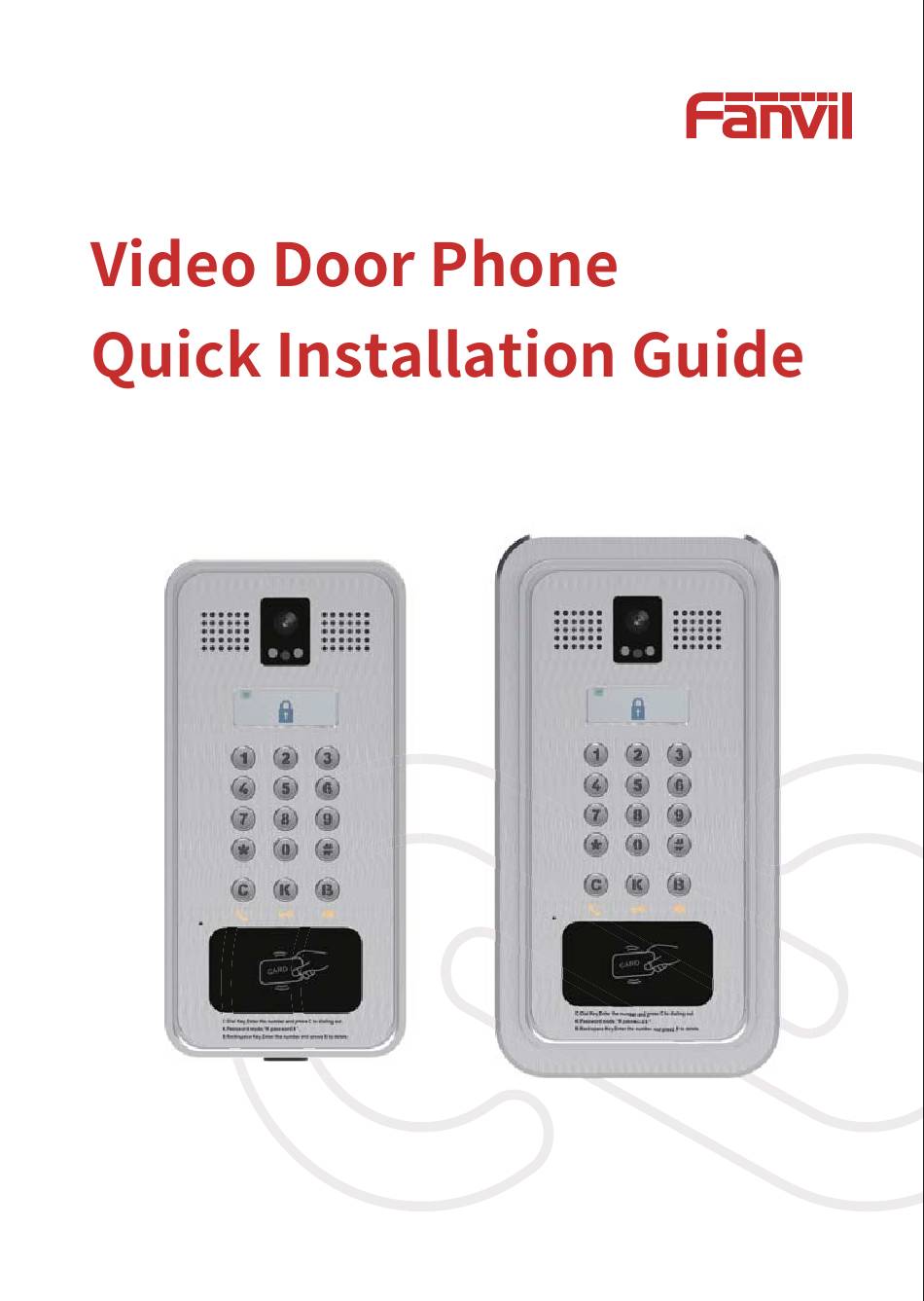

- Page 1 www.fanvil.com...
-
Page 2: Package Contents
Package Contents Connector Video Door Phone Mounting dimensions Unit:MM Mounting dimensions Unit:MM Mounting dimensions Mounting Template Quick Installation Guide i33V i33VF www.fanvil.com i33VF i33V Screw and Wrench RFID Card Physical specification 295 x 142 x 62 (mm) 1) Panel Camera... - Page 3 Status Description Status Description Connected to the Internet Not connected to the Internet, flashing SIP register success SIP register fail, flashing Connected to the TR069 Not connected to the TR069, flashing Lock off Lock on Fault prompt 1 (with error Fault prompt 12 ?: flashing) number) Call failed (no response)
- Page 4 CN16 CN17 CN19 Serial number Description Ethernet interface: standard RJ45 interface, 10/100M adaptive, it is recommended to use five or five types of network cable Two sets of short-circuit input detection interfaces: for connecting switches, infrared probes, door magnets, vibration sensors and other input devices Short circuit output 1: drive / short circuit output configurable Short-circuit output 2: corresponding to the short-circuit input interface, login device webpage setting, can be connected to the electric lock, alarm device, etc.
- Page 5 3) Wiring instructions: NO: Normally Open Contact COM: Common Contact NC: Normally Close Contact Driving Mode Electric-lock Mode Connections Jumper No electricity Electrify Active Passive when open when open...
-
Page 6: Installation
Main Body Bottom Middle Stand Plate frame Figure 3-1 Four Major Parts of i33V Figure 3-2 Five Major Parts of i33VF Step 1: Installation preparation A.Check the following contents: Hex wrench x 1 TA5 x 40mm screws x 4 35mm screw anchors x4 B.Tools that may be required:... - Page 7 Step 3: Removing hanging shell i33V A.Use a screwdriver to remove the 4 screws on both sides and separate the rear case from the wall bracket, as shown in Figure 3-4. B.Use a screwdriver to remove the 6 screws on the back of the rear case and separate the rear case., as shown in Figure 3-5.
-
Page 8: Searching Door Phone
Figure 3-10 Searching Door Phone There are two methods as shown below to search the device. Method 1: Open the iDoorPhone Network Scanner. Press the Refresh button to search the device and find the IP address. Download address http://download.fanvil.com/tool/iDoorPhoneNetworkScanner.exe 192.168.1.128... - Page 9 Method 2: Long press DSS key for 10 seconds(after power-on for 30 seconds), and when the speaker beeps rapidly, press DSS key again quickly, the beeps stop ,the intercom will report the IP address by itself. In addition, device provides the device surface DSS key operation to switch IP address acquisition mode: Long press the DSS key for 10 seconds, to be issued by the speaker Beep, and then press the DSS key three times, the beep stops.
-
Page 10: Door Unlocking Setting
Step 3: Door Phone Setting Door Unlocking Setting Local 1) Local Password Step 1: Go to Local Password (The default is “6789”). Step 2: Use the device’s Numeric Keyboard to input password and “#” key, and then the door will be unlocked. - Page 11 RFID Card Step 1: Go to EGS Access Add to Access Table. Step 2: Use pre assigned RFID cards to unlock the door by touching RFID area of device. Remote Password Step 1: Go to Remote Password (The default is “*”). Step 2: To answer the call made by visitor via SIP phone, press the “*”...
- Page 12 Fanvil Technology Co., Ltd Add: 4F, Block A, Building 1#, GaoXinQi Hi-Tech Park (Phase-II), 67th District, Bao'An, Shenzhen, China P.C:518101 Tel:0755-2640-2199 Fax:0755-2640-2618 Email:sales@fanvil.com...
