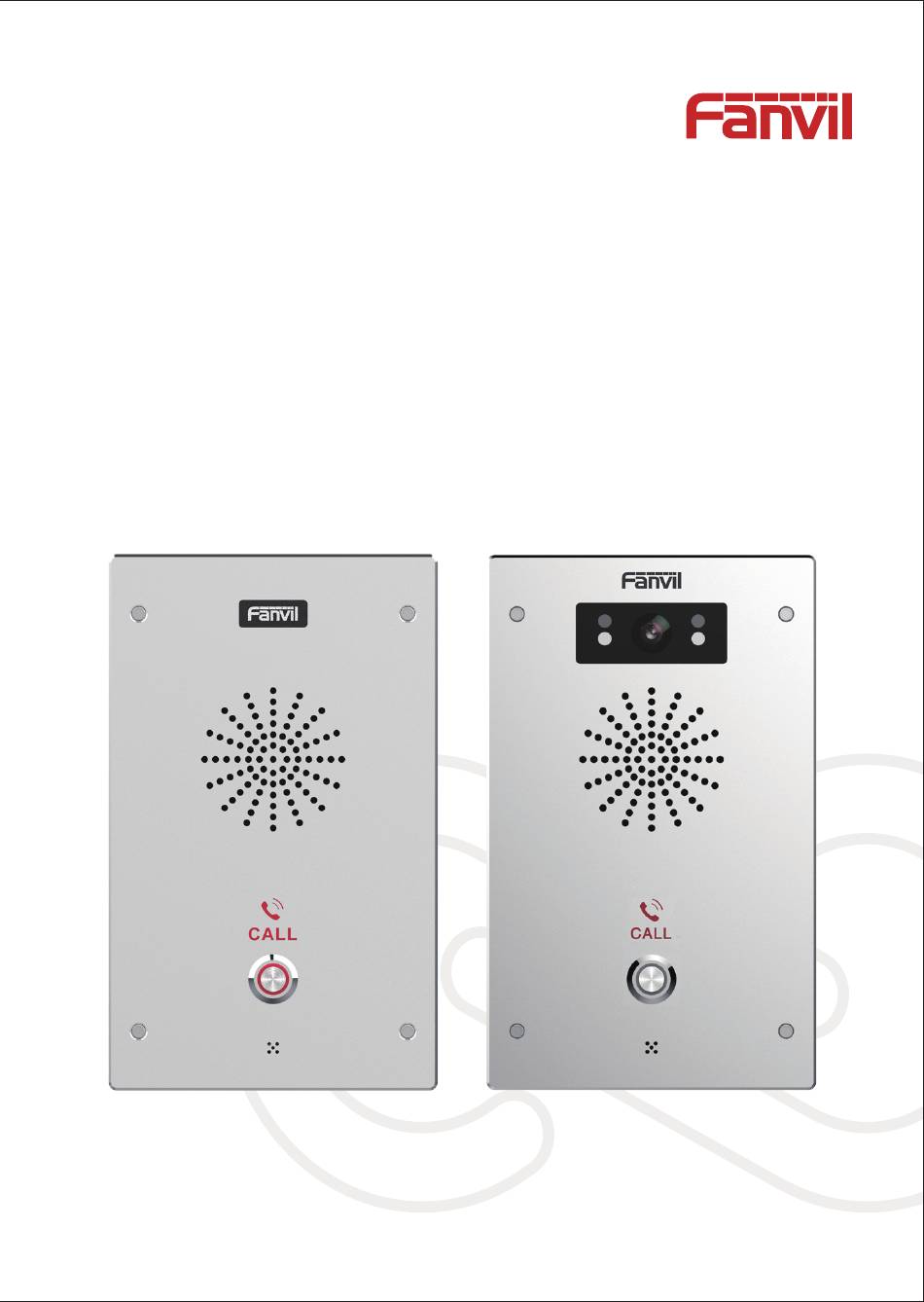

- Page 1 SIP Intercom Quick Installation Guide www.fanvil.com...

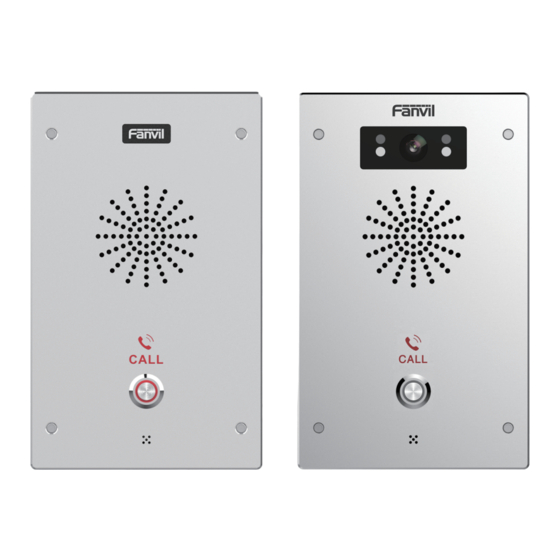

- Page 2 Package Contents SIP Intercom Connector i16S/i16SV SIP Intercom Quick Installation Quick Installation Guide Mounting Template Guide www.fanvil.com Screw and tool Physical specification Device size 195 x 120 x 40 (mm) 1) Panel Camera IR LED Speaker DSS key...
- Page 3 2) Interface description Open the rear case of the device, there is a row of terminal blocks for connecting the power supply, electric lock control, etc. The connection is as follows: ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ Serial Description Wiring port description(example above) number...
- Page 4 Fanvil Technology Co., Ltd Add: 4F, Block A, Building 1#, GaoXinQi Hi-Tech Park (Phase-II), 67th District, Bao'An, Shenzhen, China P.C:518101 Tel:0755-2640-2199 Fax:0755-2640-2618 Email:sales@fanvil.com...
- Page 5 Searching device There as shown below to search the device. Methods 1: Download address: http://download.fanvil.com/tool/iDoorPhoneNetworkScanner.exe Open the iDoorPhone Network Scanner. Press the Refresh button to search the device and find the IP address. Method 2: Long press DSS key for 3 seconds(after power-on for 30 seconds), and when the speaker beeps rapidly, press DSS key again quickly, the beeps stop ,the intercom will report the IP address by itself.
- Page 6 Step 2: Set SIP account Set SIP server address, port, user name, password and SIP user with assigned SIP account parameters. Select “Activate”, and then click [Apply] to save this setting. Step 3: Set the volume (if not connected can skip) Intercom settings =>...
